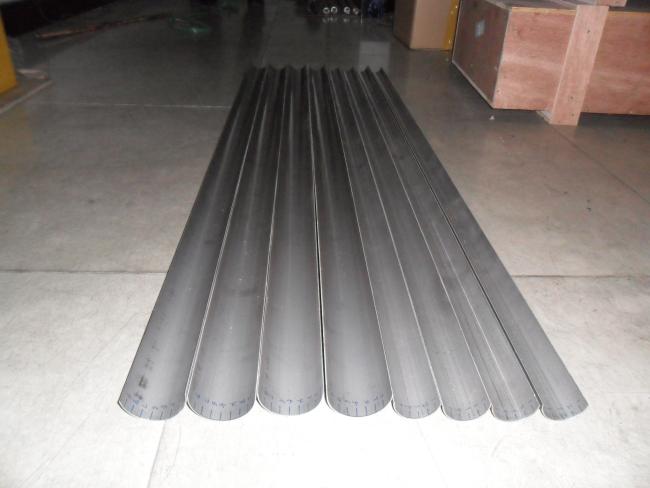

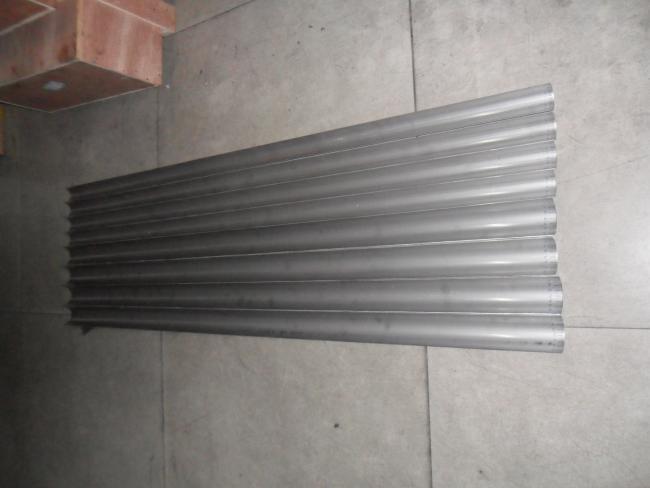

Tensile Stainless Steel Split Tube For Wireline Core Barrel , NQ3 HQ3 PQ3
Tensile Stainless Steel Split Tube For Wireline Core Barrel , NQ3 HQ3 PQ3
1. Split tube is a component of wireline core barrel;
2. Split tube is for triple drilling;
3. Stainless steel material;
4. Has length of 1.5m and 3.0m.
A complete wire line triple tube core barrel includes: Head assembly, pump-out adaptor, piston plug, O ring, core ejection piston, split tube, inner tube, stop ring, core lifter, core lifter case, locking coupling, adaptor coupling, landing ring, outer tube, inner tube stabilizer, thread protector.
We produce a wide range of drilling tool including drill rod, wire line core barrel (AQ-PQ) and assemblies, synthetic diamond core bits, natural diamond surface-set core bit, PDC bits(core and non-coring),casing shoes, reaming shells, overshot, hoisting plug etc.
Size Available:
"Q" Series: BQ, NQ, HQ, and PQ.
"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design: RW, EW, AW, BW, NW, HW
Metric Series: 33, 42, 50
We also can produce various sizes of casing tubes
Size Available:
"W" Design: RW,EW,AW,BW,NW,HW,PW,SW,UW,ZW/HWT,PWT
Metric Series: 46, 56,66,76,86,101,116,131,146
"X" Design: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX
All Chinese sizes.
|
Decription |
OD(mm) |
ID(mm) |
Weight(Kg/3m) |
|
Rod, BQ 3.0 m Enhanced |
Φ55.60 |
Φ46 |
18.00 |
|
Rod, NQ 3.0 m Enhanced |
Φ70.15 |
Φ60 |
23.40 |
|
Rod, HQ 3.0 m Enhanced |
Φ89 |
Φ77.80 |
35.50 |
