Plastic Core Box Core Tray For Core Sample New Material BQ NQ HQ PQ Size

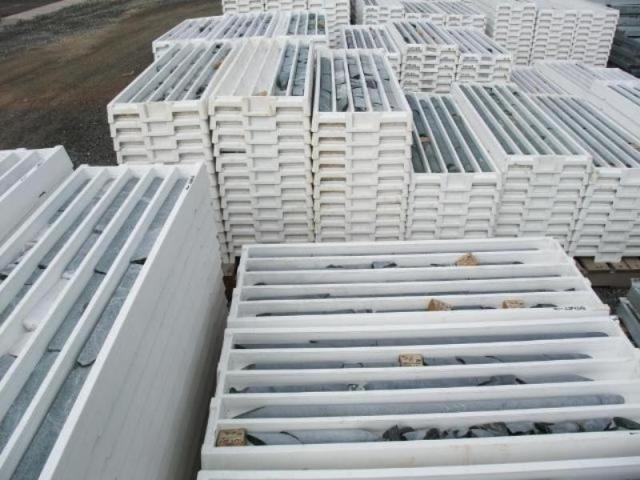

Sinocoredrill plastic core trays remain relatively cool to touch when left outside, unlike metal trays. Therefore no more painful burns when handling core trays.

Plastic Core Trays are a one piece mold, meaning no pop rivets and welds which increases the products strength and importantly no sharp edges.

Plastic Core Trays made using the highest UV stabilized polypropylene available making it exceptionally durable in any harsh mining or exploration environment.

Sinocoredrill is manufactured from exceptional quality raw materials, which makes it extremely resistant to impact and crushing.

Model:BQ

Size:1070×385×50
Inseam Length:1m
The width of each slot :48mm
Length of Cores to hold:6m
Lattices Nos:6

Weight: 2.2kgs (approx.)

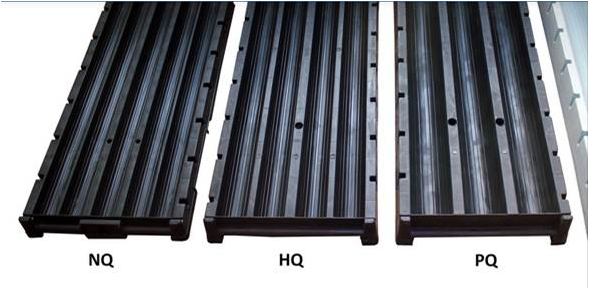

Model:NQ
Size:1070×385×55
Inseam Length:1m
The width of each slot :55mm
Length of Cores to hold:5m
Lattices Nos:5

Weight: 2.2kgs (approx.)

Model: HQ
Size: 1070×385×70
Inseam Length: 1m
The width of each slot : 69mm
Length of Cores to hold: 4m
Lattices Nos: 4

Weight: 2.4kgs (approx.)

Model: PQ
Size: 1070×385×93
Inseam Length: 1m
The width of each slot : 92mm
Length of Cores to hold: 3m
Lattices Nos: 3

Weight: 2.8kgs (approx.)
