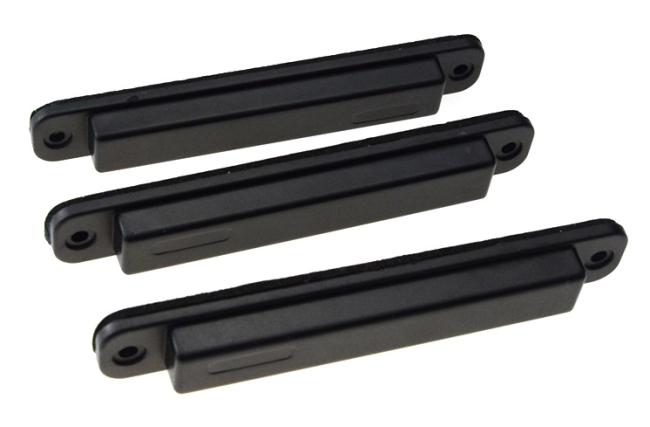

Long Range Metal Mount RFID Tags Waterproof Anti Metal UHF RFID Tags
LONG RANGE METAL MOUNT RFID TAGS In WATERPROOF ANTI METAL UHF RFID TAGS
Metal mount RFID tags has a combined capability to survive high temperatures to 180°C and a robust encapsulation.
This tag is ready for deployment in a variety of applications without sacrificing read range performance.
It's a High-Temperature RFID tag optimized for metal substrates.
- Size: 46.5x31.5x7.5mm, Hole:D3.6mmx2.
- Applicable Surface: Metal Surface.
- Read Range (Fix Reader): 6.5M, US (902-928MHz) - 6.6M, EU (865-686MHz).
- Read Range (Handheld Reader): 4.4M, US (902-928MHz) - 4.6M, EU (865-686MHz).
- Memory - EPC 96bits (Up to 480bits), User 512bits, TID64bits.
- Frequency - US 902-928MHz, EU 865-868MHz.
- Certifications - Reach, RoHS, CE, ATEX.
Product description
| Product | Metal mount RFID tags |
| Protocol | ISO18000-6C EPC G2 |
| IC Type | Alien H3 |
| EPC memory | 96 bit |
| User Memory | 512 bit |
| Data Retention | >10 years |
| Frequency | 860-960 Mhz (Suitable for EU and US freq. band) |
| Reading Range | 3-5 meter for 7 dbi antenna 8-10 meter for 12 dbi antenna |
| Material | ABS plastic |
| Dimension | 135mm*20mm*15mm |
| Operation Temperature | -20℃ to + 70℃ |
| Assembly | Screw Fix / self-adhesive |
Metal mount RFID tags Benifits:
- Long read range due to high chip sensitivity
- Ease of tag assembly due to high chip input capacitance
- Consistent performance on different materials
- Reliable operation in multi-reader environment
- Theft protection through EAS feature
- Prevention of unauthorized memory access due to
- read protection
