3.5m Read Range RFID UHF Inlay ALIEN H3 Chip , Smart Label Rfid
3.5m Read Range AZ-9629 UHF inlay RFID dry inlay ALIEN H3 chip
1.Chip: Alien H3
2.Die Cut Size: 22.5*22.5mm
3.Environmental: ROHS compliant
4.Data storage: >10 years
5.Re-write: 100,000 times
6.Fixture: 3M adhesive
7.Customization: Company logo print

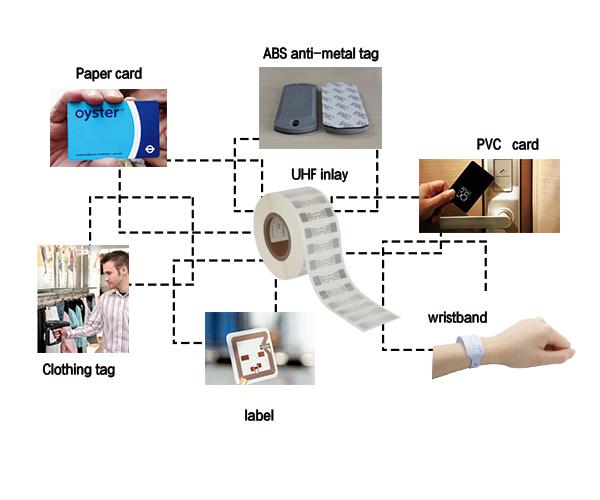

8.Application: Assets statistics management, small equipment management, firearms management, drug management, etc.
| 1. Material: | PET |
| 2. Size: | 22.5*22.5mm |
| 3. Thickness: | 0.2-0.8mm |
| 4. Minimum QTY: | 1000pcs |
| 5. Available crafts: | for label or card manufacturing |
| 6.Chip Available: | Chip types are available upon request. |
| 7. Applications: | Enterprises, bank, traffic, insurance, super marketing, parking, school, library management .access control ect. |
| 8. Price terms: | We accept FOB /CNF/CIF price. Payment term: pay by T/T or Western Union. 50% deposit of the total payment before bulk production. |
| 9. Lead time: | depends on the quantity |
| 10. Delivery: | By express ,by sea or air |
| 11. Package details: |
Packaging Details (for standard size): Inner Box:210*95*60mm, /200PCS ./0.6Kg Outer Carton:360*235*218mm. 2000pcs/CTN,6Kg |
| 12. Standard size card weights (only for reference) |
1,000pcs 3Kg 2,000pcs 6Kg 3,000pcs 9Gg 5,000pcs 15KG |
| 13. Sample Availability: | Free samples are available upon request. |
| 14. Certificate: | ISO 9001-2000 |
| Disclaimer | The showing picture is only for your reference of our product. All related to intellectual property rights of trademark belongs to trade mark companies. |
- Handling
- Inlays with ink marks are defective, do not use.
- RFID Inlays or labels are sensitive product, do not bend or stretch
- Static-free bag will be use for packing; always keep environmental static charge to a minimum.
- White Smart RFID reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
- All products from White Smart RFID should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. InlaySolution does not represent that this product is fit for any particular purpose or use.
Alien Model Features
Higgs-3
- Meets EPCglobal™ Gen2 (V 1.2.0) as well as ISO/IEC 18000-6C
- 800-Bits of Nonvolatile Memory
- 96-EPC Bits, extensible to 496 Bits
- 512 User Bits
- 64 Bit Unique TID
- 32 Bit Access and Kill Passwords
- Pre-Programmed with a unique, unalterable 64-bit serial number
- User Memory can be Block Perma-Locked as well as read password protected in 64 Bit Blocks
- Supports all Mandatory and Optional Commands including Item Level Commands

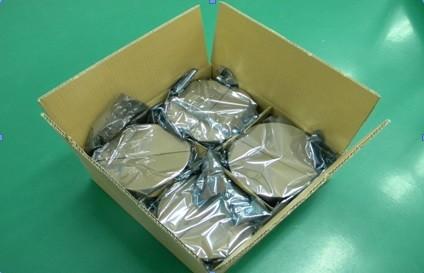

Packing detalis below:
Qty/Roll (Actual Qty as per Shipping Mark)
12,800±300pcs/roll; 1roll/carton

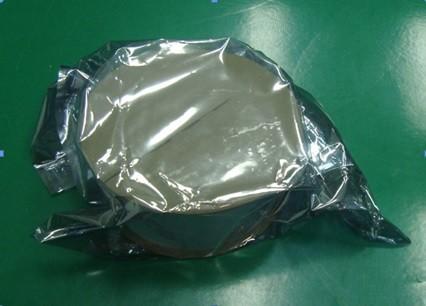

Packaging
A. Use two lines of 25mm interleaf to protect IC and antenna.
B.Keep away from water, collision and static.
C. Delivery with the package of static-free bag.
