Conveyor Chain Helical Shaft Mounted Speed Reducer Transmission Gearbox 6000Nm
Conveyor Chain Helical Shaft Mounted Speed Reducer Transmission Gearbox 6000Nm
Quick Details:
|
HXG(TA) Shaft Mounted Speed Reducer
|
||||
|
Model
|
Ratio | Standard bore (mm) | Power(Kw) | Rated torque(N.m) |
| 30 |
5; 12.5; |
30 |
3 | 180 |
| 35 |
35 |
5.5 | 420 | |
| 40 |
40; 45 |
15 | 950 | |
| 45 | 45; 50; 55 | 22.5 | 1400 | |
| 50 | 50; 55; 60 | 37 | 2300 | |
| 60 | 60; 65; 70 | 55 | 3600 | |
| 70 |
70; 85; |
78 | 5100 | |
| 80 |
80; 100 |
110 | 7000 | |
| 100 |
100; 120 |
160 | 11000 | |
| 125 |
125; 135 |
200 |
17000 |
|
Description:

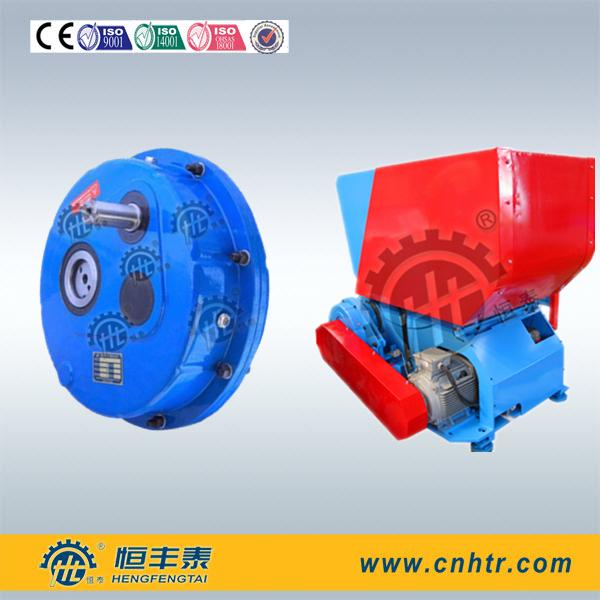

Conveyor Chain Helical Gear Reducer Transmission Gearbox is a shaft mounted gearbox which can be optionally
fitted with a backstop option (except for HXG30). It is appreciated that the backstop option prevents conveyor
from back driving once the conveyor inclines.
This Conveyor Chain Helical Gear Reducer Transmission Gearbox is wildly used in mining conveyor fields such
as: Jaw Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact Crusher conveyor gearbox,
Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.
Ps: Scan QR code to connect me for more services.
Your benefits:
1. Simple structure and convenient to be installed and maintained
2. Small volume
3. Widely application
4. All input/ output shafts are plated so that can prevent them to rusting.
5. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is
safe from contamination.
6. High efficiency.
Our gearbox units now are in higher load capacity as the gears have been redesigned.
7. Strong capacity of being overloaded.
Our gearbox units now are in higher load capacity as the gears have been redesigned.
8. Long service life.
Life of main parts of gearbox (except wearing parts) should not be less than 20, 000 hours.
9. Anti-leaking oil.
The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.
Other Details:
|
Place of Orign
|
Zhejiang, China |
|
Trade Mark
|
Hengtai Gearbox |
|
Mounting Position
|
Shaft Mounted |
|
Color
|
Ral 5010& 7031& 7040 |
|
Certification
|
CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS |
|
Packing Detials
|
Wooden Case, Standard Export Package |
Application:
Mobile Jaw Crusher
Mobile Vibrating Screen
Mobile VSI Crusher
Mobile Cone Crusher
Mobile Impact Crusher
Crawler Mobile Crusher
Features:
|
Model Number
|
Input shaft Diameter |
Output shaft hollow bore diameters:
|
Output torque range |
Torque arm length |
Input Speed |
Reduction Ratio:
|
|
Ta35-35D
|
19mm |
30mm
|
1000Nm |
220mm |
1400rpm
900rpm
500rpm |
5:1
7:1
10:1
12.5:1
15:1
20:1
25:1
31:1
|
|
Ta40-40D
|
24mm |
40mm
|
1350Nm |
240mm |
||
|
Ta45-45D
|
28mm |
45mm
|
2050Nm |
260mm |
||
|
Ta50-50D
|
42mm |
50mm
|
2100Nm |
280mm |
||
|
Ta60-60D
|
48mm |
60mm
|
3500Nm |
300mm |
||
|
Ta70-70D
|
48mm |
70mm
|
4900Nm |
320mm |
||
|
Ta80-80D
|
55mm |
80mm
|
6600Nm |
380mm |
||
|
Ta100-100D
|
55mm |
100mm
|
10500Nm |
520mm |
||
|
Ta124-125D
|
60mm |
125mm
|
16000Nm |
560mm |
