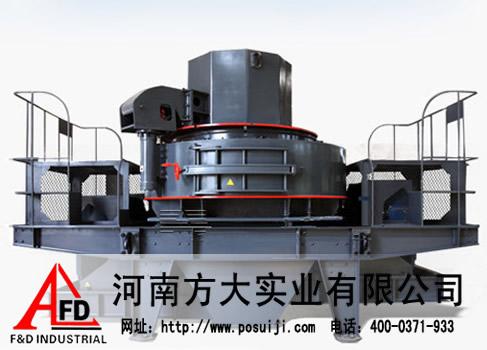

YuKuang Energy Saving River stone Sand Making Machine ,VSI sand crusher,VSI crusher

 Energy Saving River stone Sand Making Machine ,VSI sand crusher,VSI crusher

VSI crusher use a different approach involving a high speed rotor with wear resistant tips and a crushing chamber designed to 'throw' the rock against. The VSI crushers utilize velocity rather than surface force as the predominant force to break rock. In its natural state, rock has a jagged and uneven surface. Applying surface force (pressure) results in unpredictable and typically non-cubical resulting particles. Utilizing velocity rather than surface force allows the breaking force to be applied evenly both across the surface of the rock as well as through the mass of the rock. Rock, regardless of size, has natural fissures (faults) throughout its structure.

Model	Feeding Size (mm)	Motor Power	Rotor speed	Capacity	Overall Dimensions(mm)
VSI-6020	26	2*37/55	2000/2600	8-50	3500*1500*2050
VSI-8620	35	2*75/110	1000/1450	60-150	3600*2140*2620
VSI-9526	40	2*132/160	950/1200	100-260	4520*2640*3100
VSI-1210	45	2*200/220	950/1200	200-350	5500*2785*3030
VSI-5120	50	2*250	800/1000	300-460	5700*3080*3096





Energy Saving River stone Sand Making Machine ,VSI sand crusher,VSI crusher

As rock is 'thrown' by a VSI Rotor against a solid anvil, it fractures and breaks along these fissures. Final particle size can be controlled by 1) the velocity at which the rock is thrown against the anvil and 2) the distance between the end of the rotor and the impact point on the anvil. The product resulting from VSI Crushing is generally of a consistent cubical shape such as that required by modern SUPERPAVE highway asphalt applications. Using this method also allows materials with much higher abrasiveness to be crushed than is capable with an HSI and most other crushing methods.
