High Cost Performance Prodrill B67C Air Jack Hammer Hand Held Jack Hammer

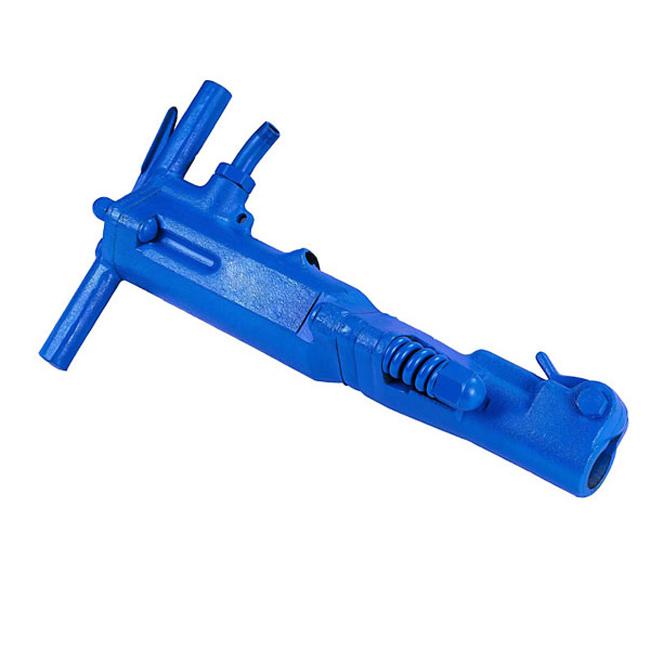

B67C Jack Hammer
Keyword:Handheld Hydraulic Breakers;paving breaker,pneumatic rock crusher
Product Introduction
The paving breaker model B67C is tool with compressed air as its power.The compressed air is distributed alternatively through the valve into either end of the cylinder Assembly so that the hammer inside is made to carry on a reciprocal motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrete foundation and makes them split into huge pieces.
Main Characteristics
1.The pneumatic breaker model B67C is tool with compressed air as its power. 2.The compressed air is distributed alternatively through the distributing valve into every end of the cylinder Assembly so that the hammer inside is made to carry on a reciprocal motion.
Technical Parameters
|
Model |
B67C |
|
Over Length(mm) |
615mm |
|
Total weight (kg) |
30kg |
|
Cylinder Dia.(mm) |
50.8mm |
|
Working pressure(Mpa) |
0.63 |
|
Impact Energy (J) |
37±10% |
|
Impact Power(Kw) |
0.9±10% |
|
Blows frequency(Hz) |
24±5% |
|
Air Consumption(L/S) |
42±155 |
|
Shank size(mm) |
32*152 |
|
Air Pipe Dia.(mm) |
19 |
|
Bit Shank |
32*152mm |
Feature Photo
