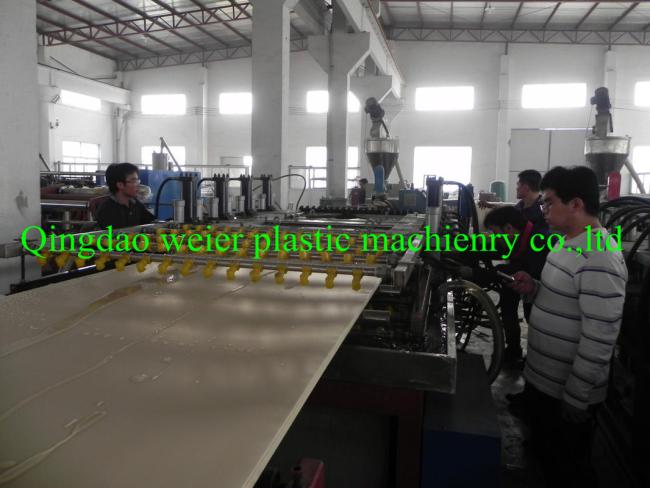

Co-Extrusion WPC PVC Plastic Foam Board Production Line / Extrusion Machinery
Co-Extrusion WPC PVC Plastic Foam Board Production Line / Extrusion Machinery
Parameter of PVC crust foamed board machinery
|
Description |
Parameter |
|
Feed material |
PVC+ assistant materials +(can also add wood powder ) |
|
Production line speed |
0.2-4m/min |
|
Max. output |
450kg/h |
|
Outline size |
30× 6× 3 L× W× H(m), unsaturated |
|
Weight |
16T |
|
Total power |
185kw |
|
Actual energy consumption power |
138kw |
|
Consumed air |
0.4m 3 /min |
|
Atmospheric pressure |
0.6mpa |
|
Water cycle |
0.3m 3 /min |
|
Power |
AC380V± 10%, 50HZ |
|
Water |
Industrial water, no impurity, with filtration treatment, pressure: 0.4Mpa temperature: 14-25° C |
|
Work environment temperature |
0-40° C |
Consists list of pvc crust foamed board machine
|
1.SJSZ 80/156 conical twin screw extruder |
one set |
|
2.Die mould |
one set |
|
3.Hydraulic pressure calibration table |
one set |
|
4.Cooling conveying bridge |
one set |
|
5.Edge cutting uint |
one set |
|
6.Haul-off unit |
one set |
|
7.Length metering |
one set |
|
8.Transverse cutter |
one set |
|
9.Stacker table |
one set |
|
10.Electric cabinet |
one set |
|
11.Spare parts list |
one set |
PVC WPC co-extrusion foamed board parameters:
| Main extruder and motr | SJZ80/156 conical double screw extruder 75kw |
| Co-extruder and motor | SJZ65/132 conical doule screw extruder 37kw |
| cooling roller | stainless steel |
| haul-off | 8 roller haul-off 5.5kw |
| cutter | 2.2kw feeding motor 1.5kw |
| output | 450kg/h |
Auxiliary machinery
| wood powder making machinery | 150-300kg/h |
| SRL-Z500/1000 mixer | 500-700kg/h |
| PC500 crusher | 300kg/h |
| SMF-600 miller | 250-300kg/h |
Finished products of pvc crust foamed board production machine
PVC furniture Foam Board is a kind of new material for home furnishing, such as furniture, cabinet, desk chair and building, upholster, advertising, transportation and exhibition, etc. It is heat formable, lead-free, flame retarded, water repellant, chemical resistance, lightweight yet rigid and durable.
