Injection Ptfe Machining , High Temperature Resistance Function
Injection Ptfe Machining , High Temperature Resistance Function
Excellent function Injection or machining PTFE part
PTFE special articles machining main Features:
PTFE has excellent all-round properties performing well at both high and low temperatures, being corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.
Function: For various types of electronic, electrical, automation equipment, industrial equipment components
Quick detail
1.the best chemical resistance properties
2.long-term using of temperature
3.reach 260 degrees.
Property
We supply special compounds filled ptfe products in order meet specific applications requirments according to end use. ie. Glass fiber ,Carbon fiber ,MoS2 ,Graphite , Bronze , Pigmen
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
| Product No. | Filled compound and content by weight | Tension strength MPa min | Ultimate strength% min | Compresive strength MPa min |
| 1 | 20% glass fiber | 10 | 120 | 16 |
| 2 | 25% glass fiber | 10 | 100 | 16 |
| 3 | 20% glass fiber graphile | 10 | 120 | 16 |
| 4 | 60% bronze | 10 | 80 | 20 |
| 5 | 15% carbon fiber | 11 | 130 | 16 |
| 6 | 24% bronze 12%glass fiber 6% graphite | 9 | 100 | 16 |
| 7 | 15%glass fiber 105polyikmide 5% graphite | 10 | 120 | 16.7 |
| Item Name | Precision Part | ||||
| Quality Assurance | ISO9001:2008 Certified | ||||
| Machining Equipment | Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc. | ||||
| Materials | Aluminum Alloy: | ||||
| 5052 /6061/ 6063 / 2017 / 7075 / etc. | |||||
| Brass Alloy: | |||||
| 3602 / 2604 / H59 / H62 / etc. | |||||
| Stainless Steel Alloy: | |||||
| 303 / 304 / 316 / 412 / etc. | |||||
| Steel Alloy: | |||||
| Carbon Steel / Die Steel / etc. | |||||
| Other Special Materials: | |||||
| Lucite / Nylon / Bakelite / etc. | |||||
| We handle many other type of materials. Please contact us if your required material is not listed above. | |||||
| Surface Treatment | Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting | ||||
| Inspection | Our Mitutoyo Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ | ||||
| File Formats | Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF etc. | ||||
Specification
1.the best chemical resistance properties
2. long-term using of temperature
3.reach 260 degrees
4.have very good self-lubricating
5.electrical flame retardant
6.commonly used in the food machinery, textile machinery, engineering machinery

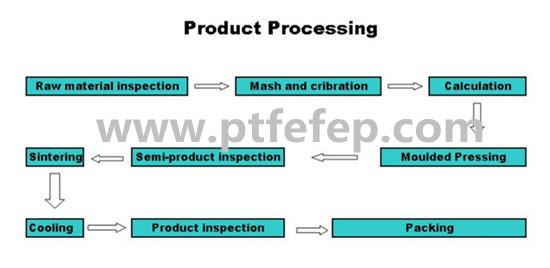

Production Flow
Production
Application
Widely used in petrochemical, instrument, space, chemical, electric, cement metallurgy industries.
The raw material comes from top quality suppliers:
