Double Shaft Paddle Mixer Fertilizer High Mixing Speed Machine SSHJ Series
Double shaft paddle mixer fertilizer High mixing speed machine SSHJ Series
Color:As customers require
Specification:1900*1600*1700
Weight:2000kg
|
Model |
Volume(m³) |
Capacity/batch(kg) |
Mixing Time(s) |
Homogeneity(CV≤%) |
Power(kw) |
| SSHJ0.1 | 0.1 | 50 | 30-120 | 5 | 2.2(3) |
| SSHJ0.2 | 0.2 | 100 | 30-120 | 5 | 3(4) |
| SSHJ0.5 | 0.5 | 250 | 30-120 | 5 | 5.5(7.5) |
|
SSHJ1 |
1.0 |
500 |
30-120 |
5 |
11(15) |
| SSHJ2 | 2 | 1000 | 30-120 | 5 | 15(18.5) |
| SSHJ3 | 3 | 1500 | 30-120 | 5 | 22 |
| SSHJ4 | 4 | 2000 | 30-120 | 5 | 22(30) |
| SSHJ6 | 6 | 3000 | 30-120 | 5 | 37(45) |
| SSHJ8 | 8 | 4000 | 30-120 | 5 | 45(55) |
Features:
1.The mixing chamber is “W” horizontal shell shape. Double shaft and many paddles. The spraying system(spray nozzle & fittings) is on top of mixer can meet light and heavy bulk density materials mixing, improve the liquid atomizing and prevent from agglomerating.
2. Specially designed discharger has big door-opening angle and quick discharging with less residue. Good tightness and no products leakage.
3. High mixing speed and homogeneity. SSHJ Series Double Shaft Paddle Mixer makes materials can be mixed and no influenced for bulk density, filling degree in state of loss weight.
4. SSHJ Series Double Shaft Paddle Mixer is widely used for mixing of powder, granular, flake, block, irregular and sticky materials in the industries of feed, cereal, food, chemicals, medicines, pesticides, etc.
Our factory

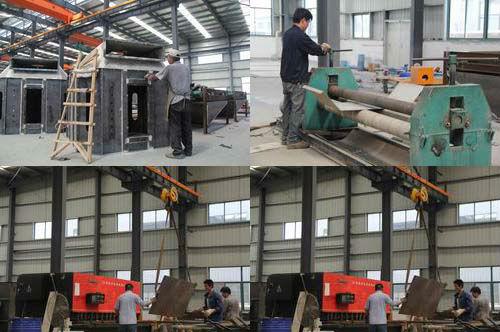

Our workshop
Certification
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
