Small Manual Powder Coating Line With Curing Oven And Powder Spraying Machine

 Small Manual Powder Coating Line With Curing Oven And Powder Spraying Machine

electrostatic powder coating system

1.  small powder coating line

2. powder spray booth , powder spraying machine , curing oven

3.  for smaller components and mixed goods.

Electrostatic Small Manual Powder Coating Line With Curing Oven

Powder Coating by Manual Application

Powder coating is done by a small handgun, ideal for smaller components and mixed goods.

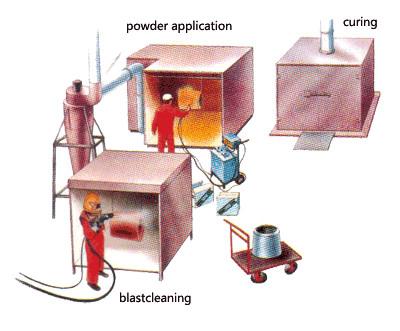

Pre-treatment can be done - as shown- by blast cleaning or any other method suited for the finished product. Curing takes place in a box oven

The small assembly line usually consists of three basic equipment to complete the job of electrostatic powder coating

1)  powder spray booth
2) powder spraying machine
3) curing oven

Small investment, small footprint, is not strictly required for the plant, and affordable

The ‘pretreated’ articles are jigged and hung into the coating booth on a fixed or rotatable jig-holder. The manual coater coats the components from all sides. The articles are then moved out onto an oven trolley
(or directly into the oven). The trolley, if used, is rolled into the oven when full. In the oven, at a temperature of 180-220oC, in 10-15 minutes, the powder melts, polymerizes fuses and cures into the final tough uniform and consistent powder coat that has high aesthetic value. At the end of the curing schedule, the trolley is rolled out of the oven and allowed to cool down. The articles are then removed out from the paint-shop.
