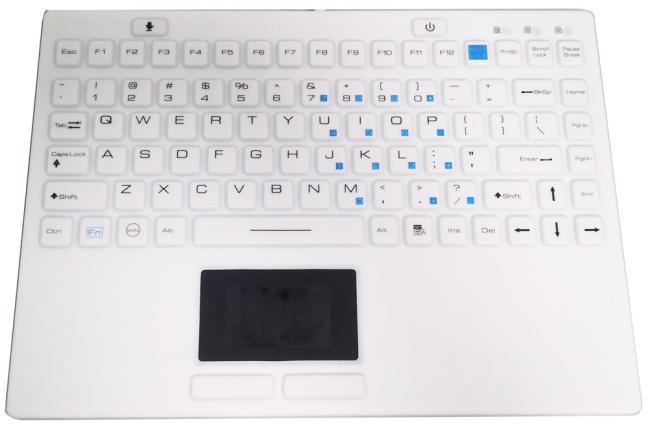

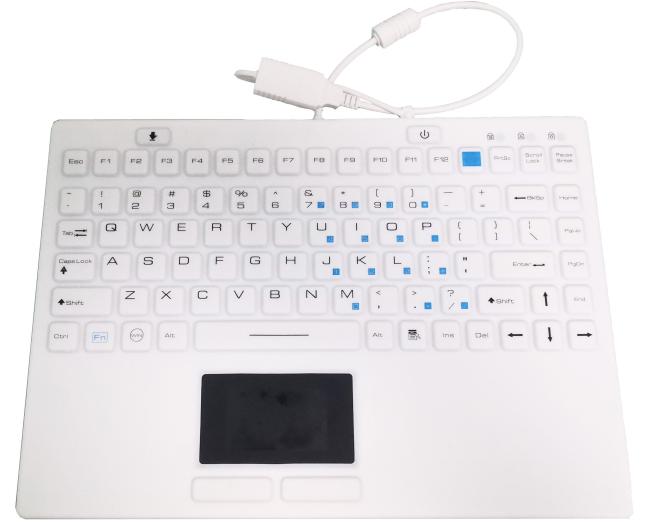

IP68 Washable Cleanable Infectable Antimicrobial Medical Industrial Silicone Keyboard With Touchpad
KINGLEADER’s SKB-86-TP-2,is a 87-key silicone keyboard with 12 function keys and integrated touchpad,featuring super slim,washable,ON/OFF button for lockdown while being washed, and IP68 compliance
Due to its unique design and build,it is rugged,virustatic,washable and can be disinfected with any hospital-approved disinfectant, it is an ideal input terminal used in industrial or medical environments.
Compared to its ancestor SKB-86-TP,it has the following enhancements:
-Better tactile feel on keys
-Easier to be cleaned or disinfected as the keys are made shorter(low profile) and their side-walls are made more sloping.
|
Items
|
Specifications |
| Key Feature |
- 87 low-profile keys including 12 function keys - Low profile keys makes cleaning easier - Built-in touchpad - Main power ON/OFF switch - Key Lifespan:>10 millions actuations - Seal Protection level: IP68 - Interface: USB - Compatibility:Microsoft®Windows7/8/10,Vista®/XP/2000/ME/98,Linux - Operating Temperature:-20℃~+65℃ - Addition of antimicrobials into raw material to prevent reproduction of harmful bacterials like Coronavirus or COVID-19 virus - EMC Certified for electrical medical equipment - Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists - Colors:Black or white or custom - Layout:US,UK,DE,FR or custom - Dimensions: 298 x 213 x 11mm (L x W x H) - Certification:CE,FCC,ROHS,IP68 |
| Material |
- Industrial and medical grade silicone |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data |
- Actuation force: 90 ±15g
|
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11,Linux |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification |
-CE,FCC,RoHS,IP68 -EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013 |
| Dimension | -298.00(L) x 213.00(W) x 11.00(T) mm |
| Weight |
0.85 kgs |
