Industrial Desktop Backlit Keyboard With Two Rugged Cables And Handheld Handle,Particularly Designed And Made For RUMO Logística Brazil

Price Negotiable
Price: US$140-200
MOQ: 1pcs
Delivery Time: 20days
Brand: KINGLEADER
Product Description

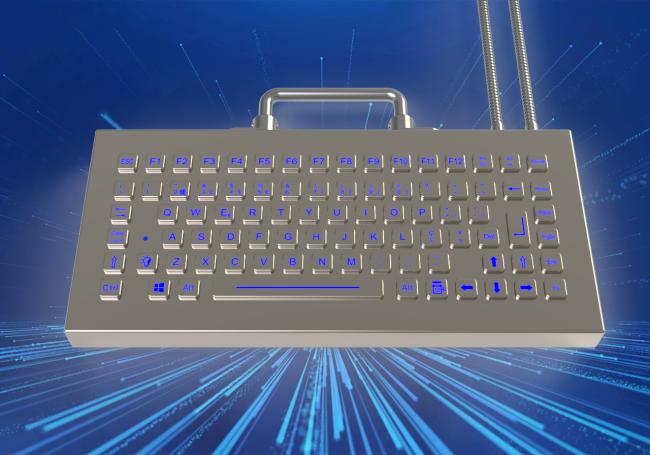

KINGLEADER’s MKB-F86-BL-DT-RUMO, is an Industrial Desktop Backlit Keyboard With Two Rugged Cables And Handheld Handle, Particularly Designed And Made For RUMO Logística Brazil.

Due to its unique design and build, it is robust, rust-resistant, water & dust-proof and vandalproof, thus widely used in RUMO Logística Brazil.

Items Specifications
Key Features
  • Desktop style with handheld handle, no mounting needed, enjoy the convenience of mobility
  • 86 backlit keys including 12 function keys F1~F12, one key for Brightness Control (On/Off)
  • Protruding full travel (2.0mm) keys with laser-etched graphics, excellent tactile feedback
  • Two Rugged coiled cables enhanced with metal wrap enduring wear and tear
  • AMP connectors on both ends:
    • 1x OBC: AMP MS3106A14S-2P.
    • 1x PTC: AMP MS3116F10-6S
  • Designed to operate in harsh railway environments
  • High resistance against rust, corrosion and vandalism
  • Completely sealed to meet IP65 up to IP68 requirement
  • PS/2 or USB interface for option
  • ABNT Keyboard Layout.
  • Barcd model (mandatory to be approved by RUMO) for operation in the PTC – Positive Train Control system through the onboard IETMS system
Material
  • Case: 304 stainless steel
  • Keys: 304 stainless steel or industrial grade high temperature resistant polycarbonate
Electrical Data
  • Power supply voltage: DC 5 V ± 5%
  • Current rating: 50 mA
  • Interface: USB or PS2
  • EMC Emission: EN55022(B)
Environmental Characteristics
  • Operating temperature: -20º C to + 60º C
  • Storage temperature: - 40º C to + 80º C
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40º C: 21 days, IEC 60512-6
  • Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
  • Actuation force: 120±15g
  • Key travel: 2.0mm
  • Lifetime (cycles): Min 5,000,000 actuations
  • Sealing protection: IP65/NEMA4X from the front
  • Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
  • Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System
  • PS2: Win NT4, 98SE, 98ME, 2000, XP, Linux
  • USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7/8.1/10/11, Linux
Reliability
  • MTBF: >20,000 hours
  • MTTR: <30 minutes
Certification
  • CE, FCC, RoHS
Dimension
  • 340.00 x 160 x 25.00 mm (L x W x T)
Weight
  • 2.00 kgs
Product Image 1 Product Image 2 Product Image 3 Product Image 4 Product Image 5 Product Image 6 Product Image 7 Product Image 8
