Product Description

• Household Keys Cutting
• Car Keys Cutting
• Superor Mechanical Structune
• Super Motor Height Leve Adiustment
• Adequate Cutting Powver Indicator Light
• High-quality Cross Rail Tracks
• Ergonommic Design
• Cutting Special Keys Available
• Al-purpose Clamps
• Core Components Processed by German-made CNC
• Ultra-high Precision Processing

Reliable Mechanical Structure

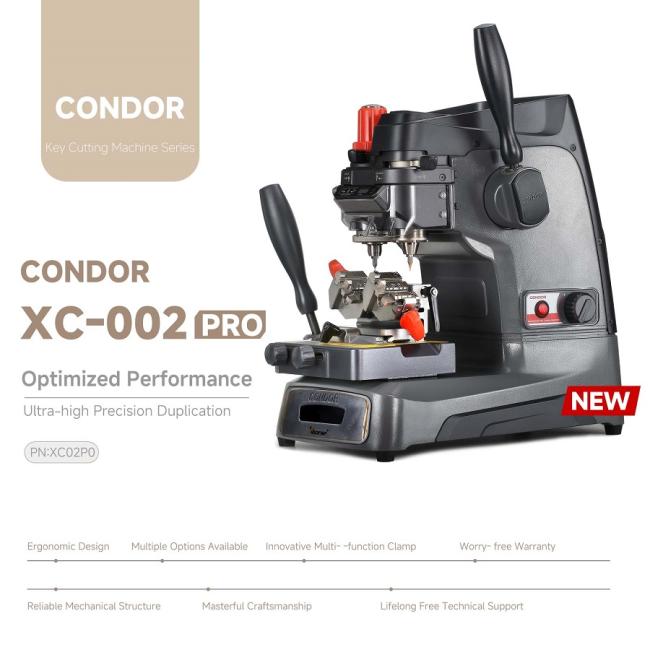

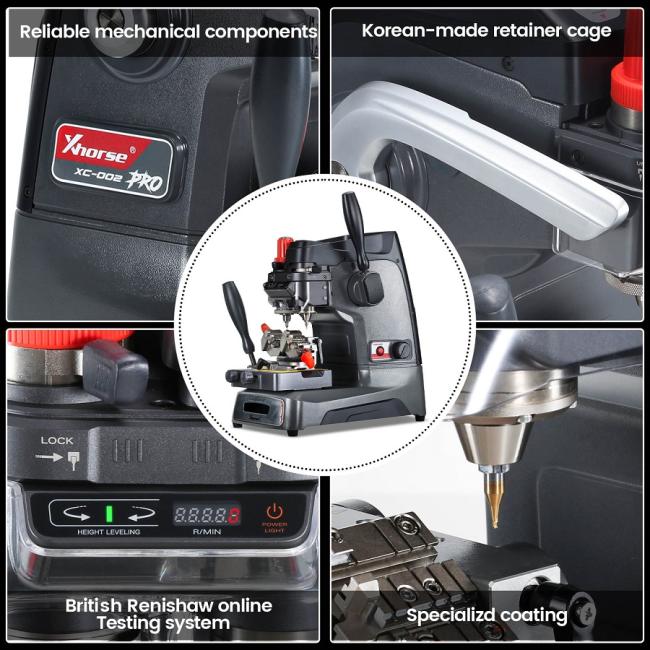

Condor XC-002 PRO is manufactured with reliable mechanical components, ensuring ultra-high precision duplication. The Korean-made retainer cage greatly maintains a good running status. The British Renishaw online testing system spots flawless key cutting location. With specializd coating, the cutter made of Japanese raw materials guarantees a long service life.



Multiple Options Available

Multiple gears allow users to adjust the spindle speed in accordance with their needs to elevate efficiency and prolong its service life. Standard mode and dimple mode are added to facilitate dimple key and ordinary key cutting.

Erogonomic Design

Every detail you care about is addressed with these thoughtful designs. Based on deep research on users' operation habits, CONDOR XC-002 PRO has been greatly optimized regarding its materials, handle radian, grip, touch, control, and cutting operation. With built-in indicator light, you can level the probe and the cutter at ease. An intelligent LCD screen displays the spindle speed for your convenience.

Master Craftsmanship

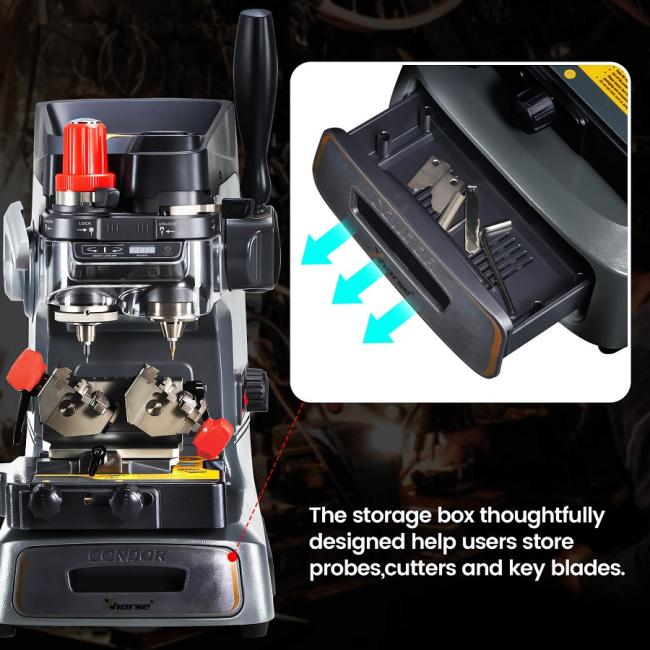

At the bottom of the machine, the storage box thoughtfully designed helps users store probes, cutters, and key blades.

The machine body forged by the all-aluminum die casting process (thermal treatment) ensures greater stability. All the main components processed by the German-made DMG CNC machine guarantee high-precision duplicating results.



Innovative Multi-function Clamp

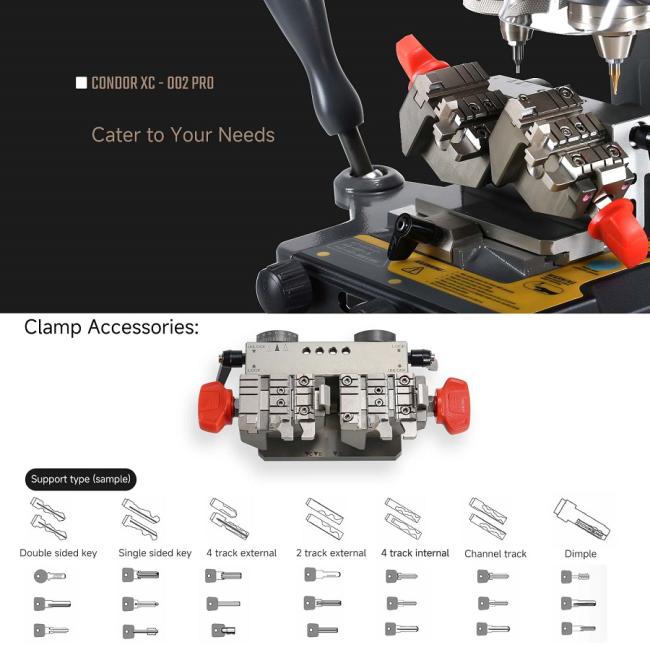

The multi-function clamp equipped allows for cutting dimple keys of different angles (0-45°). Users can adjust the angle of clamp to finish cutting based on the original key. Currently, CONDOR XC-002 PRO supports duplicating standard single sided, double sided, 4 track external, 2 track external, 4 track internal, channel track, and dimple keys with angles.

Lifelong Free Technical Support

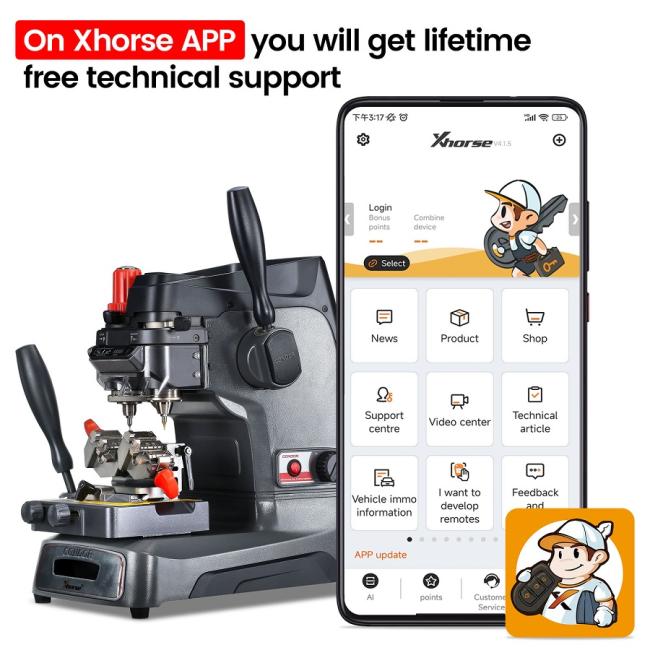

With 'Customer Service' on Xhorse APP, you'll get live and free technical support from a professional and dedicated team to help you tackle any problems.

Worry-free Warranty

A one-year (365 days) warranty is offered from the date you purchased the product.

XC-002 Pro Parameters:
Input Frequency: 50Hz
Spindle Speed: 6800~10500rpm
Travel of Spindle: 27mm
Travel of Table:
X axis: 38mm
Y axis: 50mm
Machine Dimensions: 298x445x525mm
Package Dimensions: 595x550x375mm
Net Weight: 23kg
Gross Weight: 28kg



Package Including:

1pc x XHORSE Condor XC-002 PRO main unit
1pc x 1.5mm cutter
1pc x 2.5mm cutter
1pc x probe
1pc x power cord
1pc x clamp
