OBDSTAR ISCAN PRO SERIES MARINE Scanner

OBDSTAR ISCAN PRO SERIES (MARINE) is a portable tablet with super performance and industrial appearance. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 7.0-inch capacitive touch screen, brings customer professional diagnosis experience.

Support marine diagnosis:

ISCAN PRO (MARINE) COVERAGE


Diagnostic support series:

Support ISL (EPA), QSB 5.9, QSB 6.7, QSB 7, QSC 8.3, QSK 19, QSL 9, QSM 11 and other models.

iScan Pro Marine Features:

1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8. 2 Years Free Update

Advanced Function:

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Support Idle Speed Adaption System, Max Vehicle Speed, Power Take-Off (PTO) Option, Accelerator Option, ENG brake control, Idle Speed Control, Max Vehicle Speed (OEM), Vehicle Speed Sensor Anti-Tampering (Enable/Disable), Information: Write VIN, Information: Write Vehicle or Device Year, Information: Write Manufacturer, Information: Write Vehicle Model, Reset Oil Service, Injector Coding, Max Vehicle Speed(Customer), Gear down protection and other special functions.
4. Support DC24V input.



Function Display-(From OBDSTAR Mobile App)

1) Main Page



2) Diag Socket/Diag Connector Location



Function Display-(From ISCAN PRO)

1) Main Page/Brand Supported

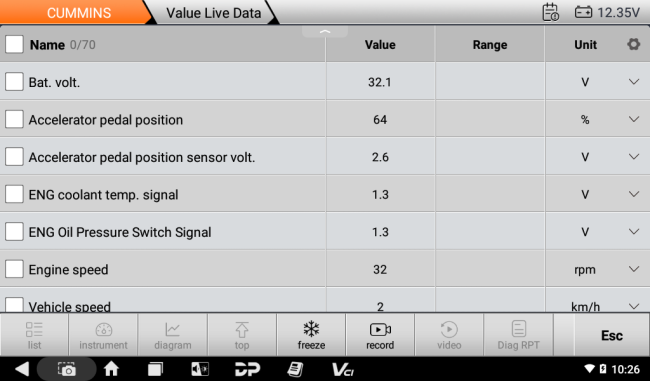

2) Data Flow Text/Waveform Diagram

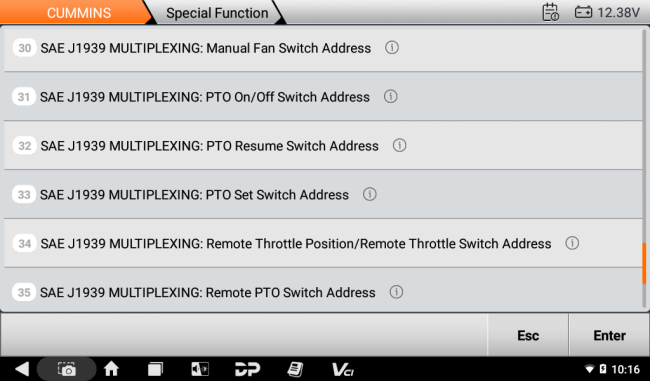

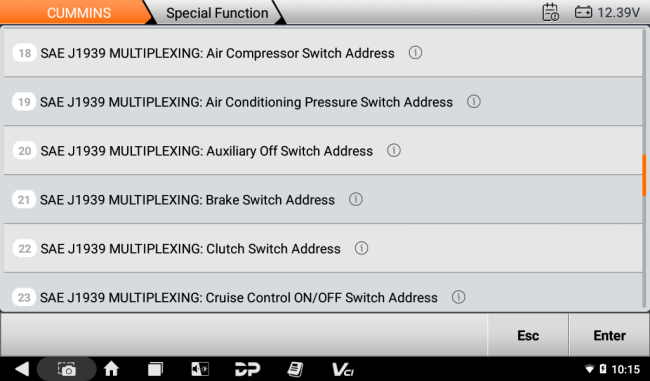

3) Special Functions









Specifications



Accessories



Package Includes:

1set x OBDSTAR ISCAN PRO SERIES MARINE Scanner
