LAUNCH ELA400 Intelligent Digital Power Supply for EV & Fuel Vehicle Maintenance
Price:
$2999
MOQ:
1
Delivery Time:
1 work day
Brand:
Launch
Product Description
Product Description
The ELA400 is an intelligent digital power supply suitable for both EV vehicles and fuel-powered vehicles maintenance. With a high voltage output range of 50V-900V, the ELA400 is designed to support a wider range of high-voltage electrical offline driving and maintenance testing scenarios.

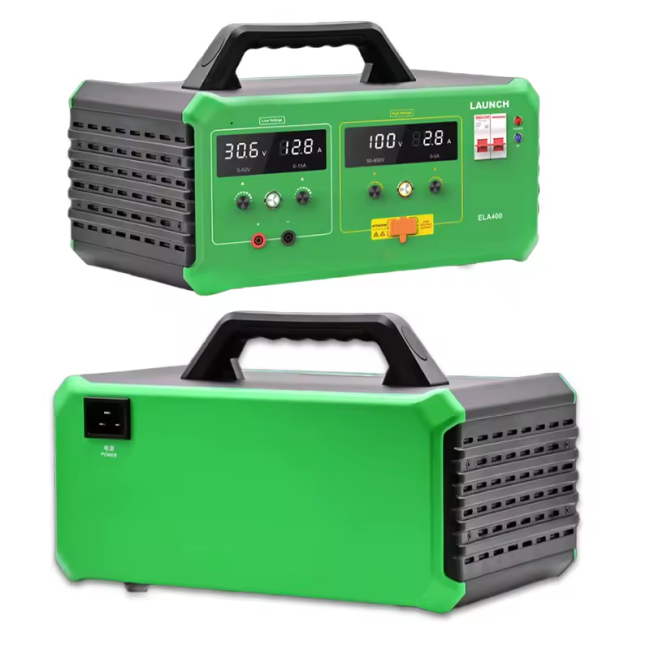

LAUNCH ELA400 Intelligent Digital Power Supply
The ELA400 is an intelligent digital power supply suitable for both EV vehicles and fuel-powered vehicles maintenance. With a high voltage output range of 50V-900V, the ELA400 is designed to support a wider range of high-voltage electrical offline driving and maintenance testing scenarios.
Product Features:
1. Applicable to all new energy and fuel vehicle maintenance scenarios.
2. The high-voltage module and the low-voltage module are independent of each other, with each module providing separate protection during power output without affecting each other.
3. Low Voltage Output supports 0V-50V, 0A-15A DC output, adjusting via a knob.
4. The input circuit, high-voltage output circuit, and low-voltage output circuit all have independent protection mechanisms, capable of detecting undervoltage, overvoltage, overcurrent, and short circuit faults, and implementing corresponding protective measures.
5. High Voltage Output includes current limiting and short circuit protection and supports 50V-900V, 0A-5A DC output, adjusting via a knob.
Product Specifications:
Power Input: AC100~240V@20A
High Voltage Output: Voltage: 50~900V
Current: 0~5A
Low Voltage Output: Voltage: 0~50V
Current: 0~15A
Front Panel: High Voltage: Voltage adjustment knob, Current adjustment knob, High voltage switch button
Low Voltage: Current adjustment knob, Voltage adjustment knob, Low voltage start/stop button
Communication: Bluetooth
Display Mode: LED Digital Tube
Protection: Current limiting, short circuit protection, undervoltage protection, overvoltage protection, overtemperature protection, etc
Working Temperature: -10~65°C
Dimensions: 395*315*265 (mm)
Weight: 11Kg
Package includes:
1pc x main unit
1pc x AC Power Cord
1pc x HV Extension Cable
1pc x HV Wire(alligator clip-fits)
1pc x HV Jumper Cable(4mm Banana plug)
1pc x Black LV wire(alligator clip-fits)
1pc x Red LV wire(alligator clip-fits)
1pc x User Manual
1pc x Packing list
