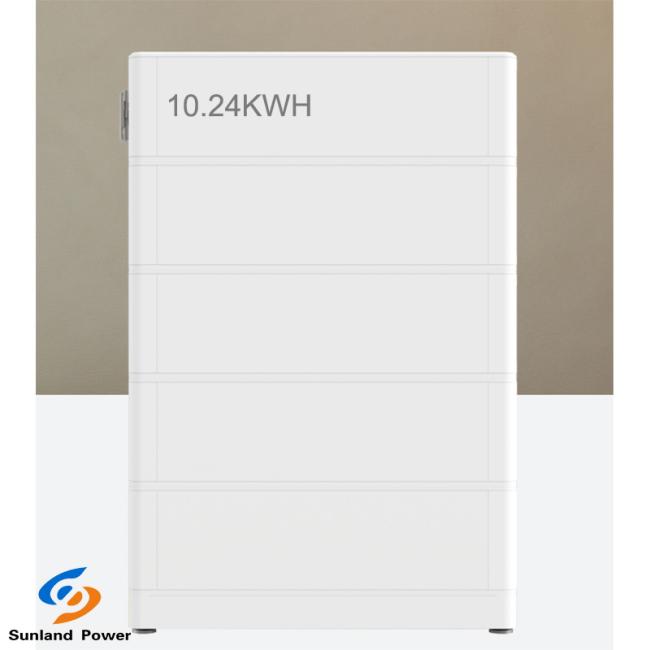

Home Energy Solar System 10.24KW Battery For Solar Systems With Three Phase Solar Inverter Hybrid For Houses

Feature:

1. include BMS controller

2. High voltage,3S to 10S,the voltage from 156.3V to 512V

3. Floor installation requires extra base (W/ D/ H =650/260/80 mm)

4.  Battery discharge: - 10°C ~ 50°C, battery charge: 0°C ~ 50°C

5. ARK series battery has an EU model and a General model, the storage inverters sold in European countries only work with EU model ARK battery.

General
Battery Type Cobalt Free L ithium Iron Phosphate (LFP)
Standard Charge/
Discharge Current 25A/0 .5C
IP Protection IP65
Installation Wall-mounted or Floor installation*2
Operation Temperature - 10 ~50°C*3

BMS Controller

HVC 60050-A1
Weight 8 kg
Communication Port CAN
Dimension(W/D/H) 650/260/185 mm
BMS Monitoring
Parameters SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurement

Home Energy Solar System 10.24KW Battery For Solar Systems With Three Phase Solar Inverter Hybrid For Houses


Home Energy Solar System 10.24KW Battery For Solar Systems With Three Phase Solar Inverter Hybrid For Houses

The ESS energy storage system is a great option for those who are interested in solar power but don't want to deal with the hassle of installation. This panel is easy to install and comes with a battery that will store energy for use when the sun isn't shining.
