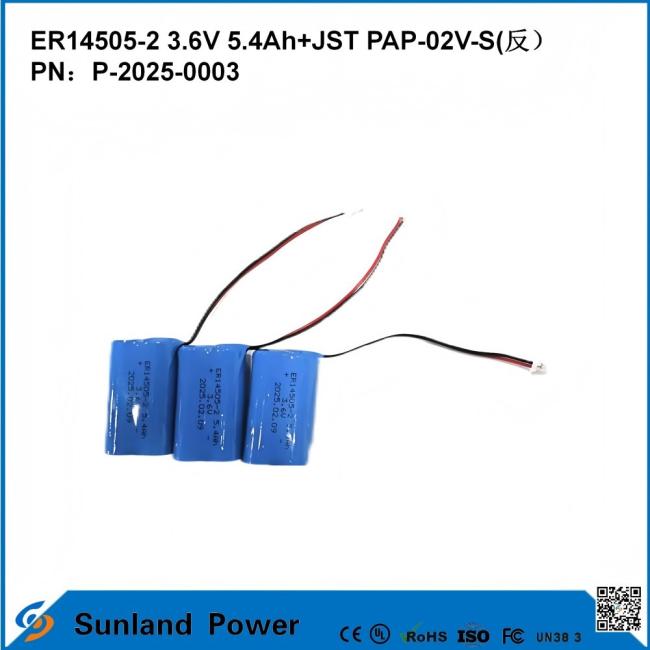

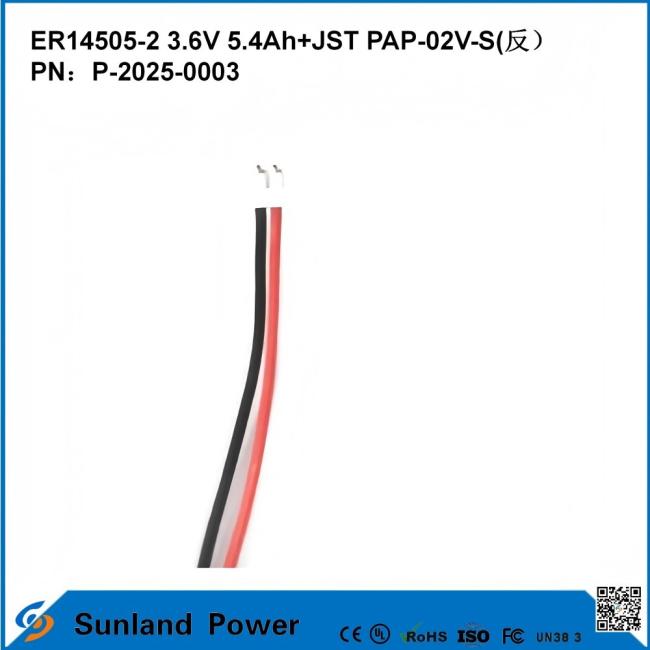

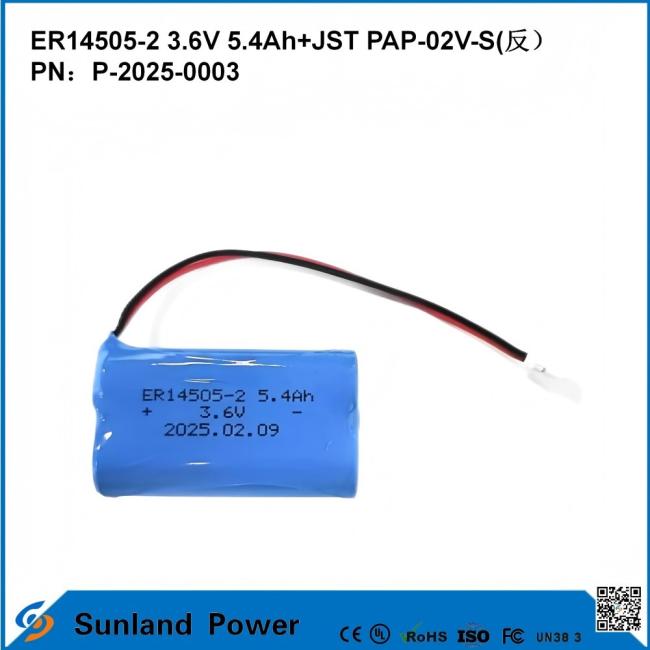

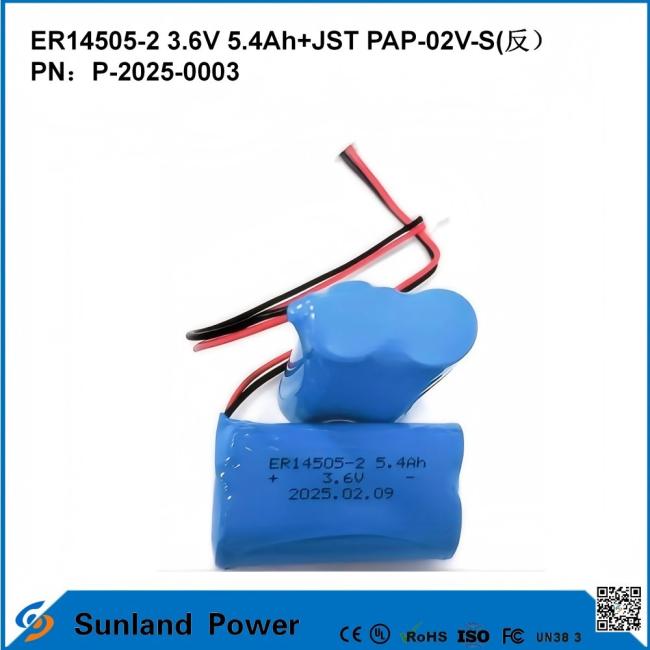

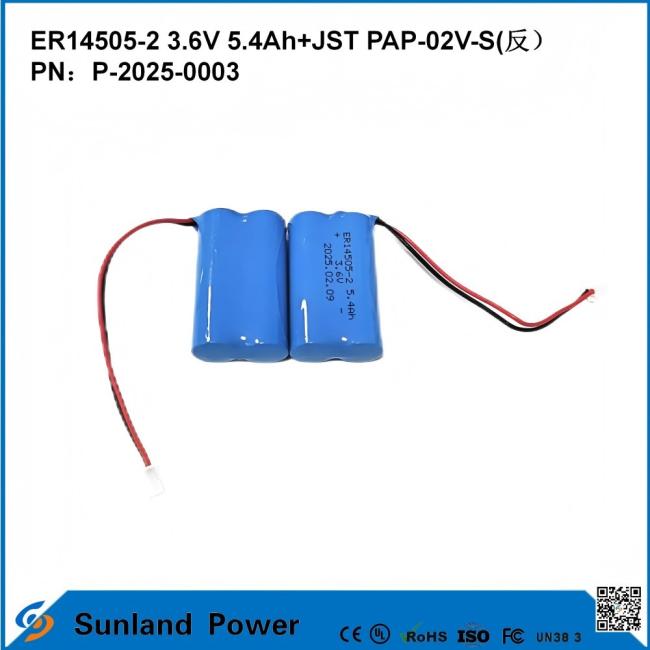

3.6V 5.4AH ER14505-2 Primary Battery

ELECTRICAL CHARACTERISTICS

Nominal Capacity 5.4Ah

(1mA,+25℃ 2V cut off.The capacity restored by the cell varies according to current drain, temperature and cut-off)

Nominal Voltage:3.6V

Max.continuous current:100mA

Max.Pulse Capability:200mA Storage(recommended)

Max.30℃ Operating Temperature Range ﹣60℃～+85℃

(Operation at temperature different from ambient may lead to reduced capacity and lower voltage plateau readings)

Weight Approx.40g

KEY FEATURESAPPLICATION

High and stableoperating voltage

Low self discharge rate(less than 1% after 1 year of storage at 25℃)

Long storage life Stainless steel container(with low magnet)

Widely operating temperature range Hermetic glass-to-metal sealing

Non-flammable electrolyte CE,SGS recognized,ISO9001 approved Utility metering

Memory back-up

Alarms and security devices

Tollgate systems

Military electronics

Automotive electronics

Professional electronics
