7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Sunland

Product Description

7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge

Parameter:

No.	Items	Specifications	Remark
6.1	Combination Method	1parallels 2series
6.2	Rating Capacity	5Ah	0.2C constant current(CC) discharge to 6V
6.3	Nominal voltage	7.4V
6.4	Max. charge voltage	8.4V	0.2C constant current(CC) charge to 8.4V,then constant voltage (CC)8.4V charge till charge current decline to ≤0.02C
6.5	Discharge cut-off voltage	6V
6.6	Charge current	2A
6.7	Continuous Output Discharging current	2A
6.8	Dimension	100L60W17Tmm
6.9	Operating Temperature	0~45℃	Charging
6.9	Operating Temperature	-10~55℃	Discharging

7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge

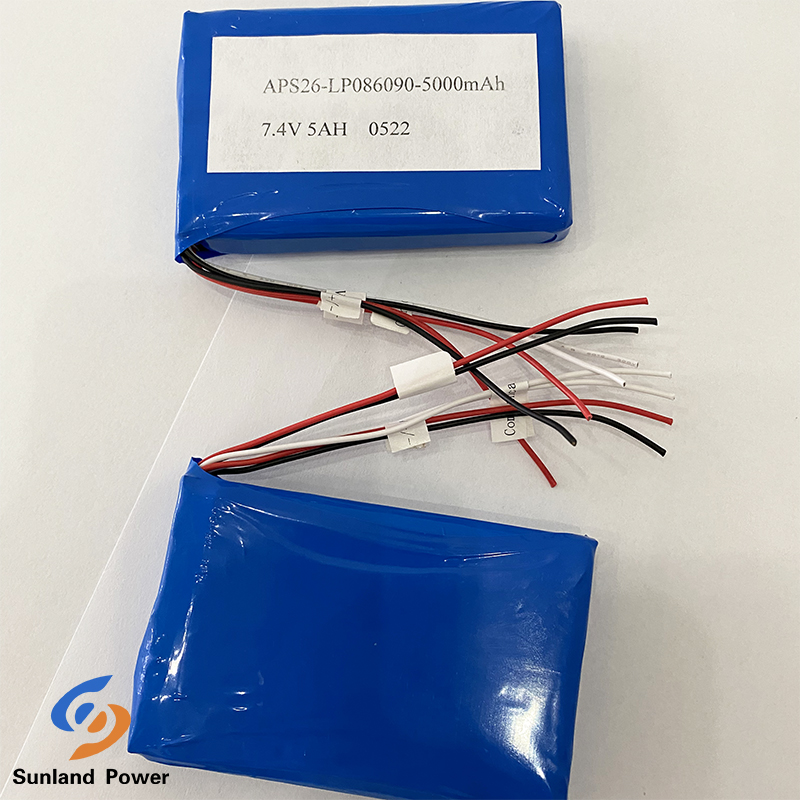

Picture:

7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge

BOM :

NO	Items	Units: mm		Remark
1	Thickness	T	18	Max
3	Width	W	60	Max
4	Height	H	93	Max
5	Cable Length/	L	100±3

NO	Part name	Quantity	Unit	Remark
1	Cell	2	ea	Great Power
2	Solder	0.04	g	Lead Free
3	PCM	1	Ea	SH366003+ +PE616BA*2+ETA2893
4	Cable	6	Ea	Charge,discharge,data
5	PVC	1		Blue PVC

Capacity retention

The battery to be charge in accordance with standard charge condition at 20~25℃,then storage the battery at an ambient temperature 20~25℃ for 28 days.

Measure the capacity after 30 days with 0.2C at 20~25℃ as retention capacity more than 85%
