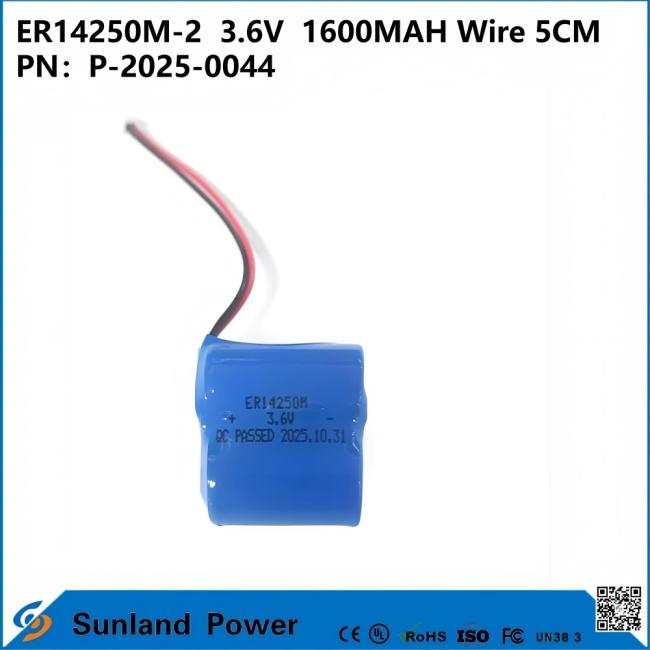

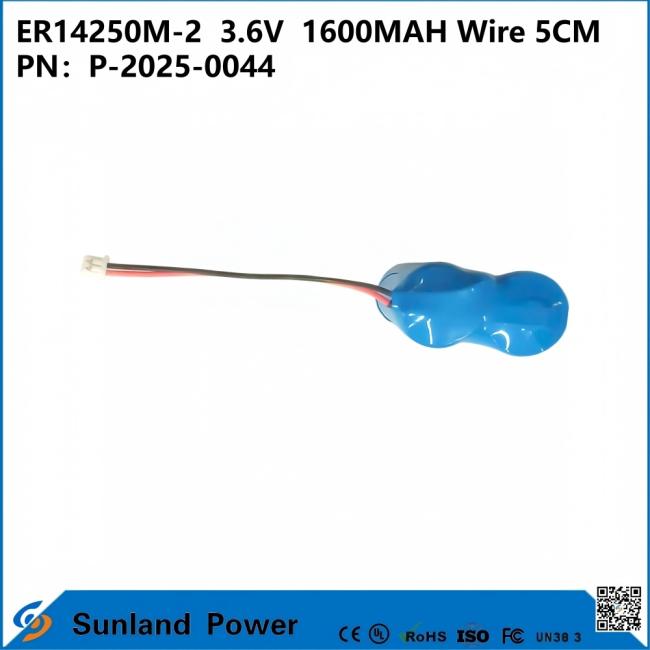

ER14250M-23.6V1600MAH Wire 5CM Battery

ER14250M 3.6V 1600mAh Lithium Thionyl Chloride Battery

Product Overview

Core Technical Specifications

• Nominal Voltage: 3.6V (Open Circuit Voltage ≥ 3.65V)
• Rated Capacity: 750‑800mAh (High-Power Type)
• Maximum Continuous Discharge Current: 100mA
• Maximum Pulse Current: 250mA
• Cut-off Voltage: 2.0V

• Dimensions: Φ14.5 × 25.0mm
• Approximate Weight: 10g
• Operating Temperature Range: -55℃ to +85℃
• Annual Self-Discharge Rate: ≤1%
• Shelf Life: Over 10 years

Key Features & Advantages

Applications

• Smart electricity, water, gas, and heat meters
• AMR for utility meters & CMOS circuit boards
• Flow meters, gas/water quality detectors

• PLCs, CNC systems, machine tools, servos
• Smoke detectors, burglar alarm systems
• Medical devices, emergency lighting systems

• Tire Pressure Monitoring Systems (TPMS)
• Wireless sensor networks, remote monitoring
• IoT devices, asset trackers

• Aerospace, underwater sonar, navigation equipment
• Military communication systems, security apparatus

Quality Certifications

Important Usage Notes

1. Non‑Rechargeable: The ER14250M is a primary (non‑rechargeable) lithium battery. Charging is strictly prohibited​ as it may cause explosion or fire.
2. Prevent Short Circuits: Avoid direct contact between the positive and negative terminals.
3. Correct Installation: Install the battery according to the correct polarity specified by the device.
4. Avoid High Temperatures: Store at a maximum temperature of 30℃. Do not expose to heat or incinerate.
5. Transportation Regulations: Transportation must comply with Dangerous Goods Safety Regulations.
