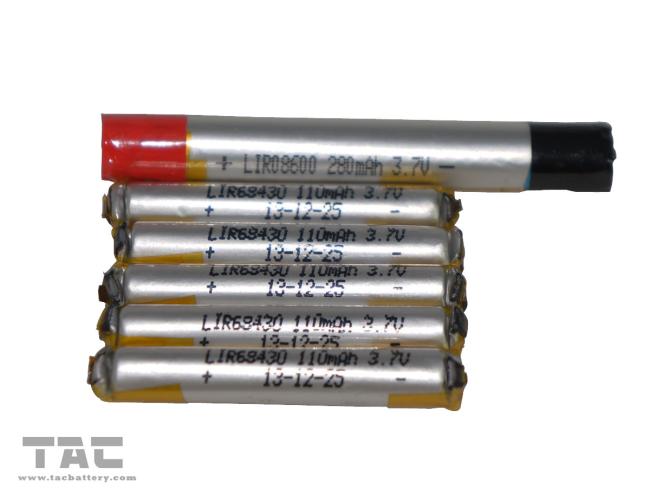

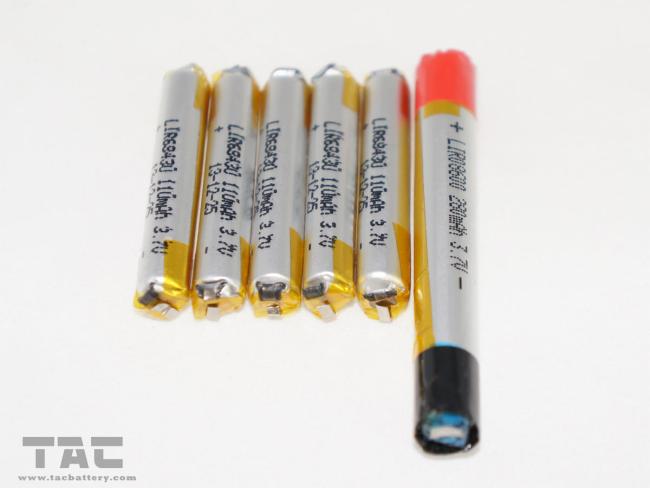

3.7V LIR68500 / LIR68430 E-cig Big Battery For Ego Ce4 Kit 110mAh ROHS Approved

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

110mAh

Standard discharge0.2C(20mA)
after Standard charge

Minimum

100mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of
Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.20V

5

Max.Charging Voltage

4.25V

6

Internal Impedance

≤130mΩ

Internal resistance measured at AC 1KH_Z after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

7

Standard charge

Constant Current 0.2C₅A
Constant Voltage 4.2V
0.01 C₅A cut-off

Charge time : Approx 6.5h

8

Standard discharge

Constant current 0.2C₅A
end voltage 3.0V

9

Maximum Continuous Operation Current

1200mA

10

Weight

2.7±1.0g

11

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.
Bare Cell

Discharge: -10~60℃

12

Storage Temperature Range

Less than 1 month: -20~40℃

60±25%R.H.
at the shipment state

less than 6 months: -10~35℃

13

Cell  Dimension

Length:Max 43.5mm

Initial  Dimension

D:Max.6.8mm

14

Voltage of shipment

4.10~4.20V
