IFR10440 AAA Li-Ion 3.2V LiFePO4 200mAh Batteries for Solar Product
IFR10440 AAA Li-Ion 3.2V LiFePO4 200mAh Batteries for Solar Product
The Feature of AAA/IFR10440 200mAh:
1. Model Name: IFR10440/AAA 200mAh Lithium iron phosphate battery pack
2.The long cycle life,is about 2000 times
3. There are IFR14500/AA, IFR17335/123A,IFR18650,IFR26650 are available.
4. 90%Discount for normal price base on mass production
5. Two type capacity , 180mah and 200mah for choice
6.Low Moq meet your small order require
Specification for IFR10440 AAA Li-Ion 3.2V LiFePO4 200mAh Batteries for Solar Product
|
No. |
Items |
Specifications |
Remark |
|
|
1 |
Nominal Capacity |
200mAh |
0.2C Standard discharge |
|
|
2 |
Minimum Capacity |
150mAh |
||
|
3 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
|
4 |
Delivery voltage |
3.25~3.29V |
Within 10 days from Factory |
|
|
5 |
Charge Voltage |
3.65V±0.03V |
By standard charge method |
|
|
6 |
Standard charging method |
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
|
7 |
Charge current |
0.2C |
40mA |
Standard charge, charge time about 5h(Ref)
|
|
1.0C |
200mA |
Rapid Charge, charge time about: ::1.5h(Ref)
|
||
|
8 |
Standard discharging method |
0.2C constant current discharge to 2.5V, |
|
|
|
9 |
Cell Internal Impedance |
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|

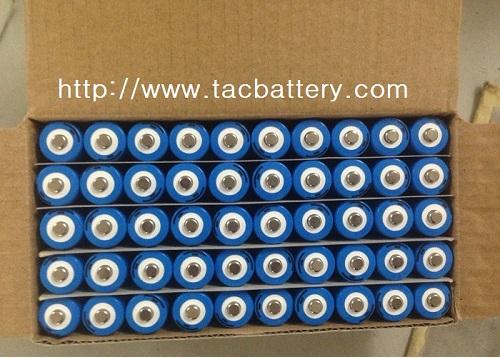

Packing Method
The battery is nice appearance with blue color printing pvc
Separate by thin paper board to avoid waggle
50pcs in one box ,and 8 box for one cargo meet the transport require.
Pictures:

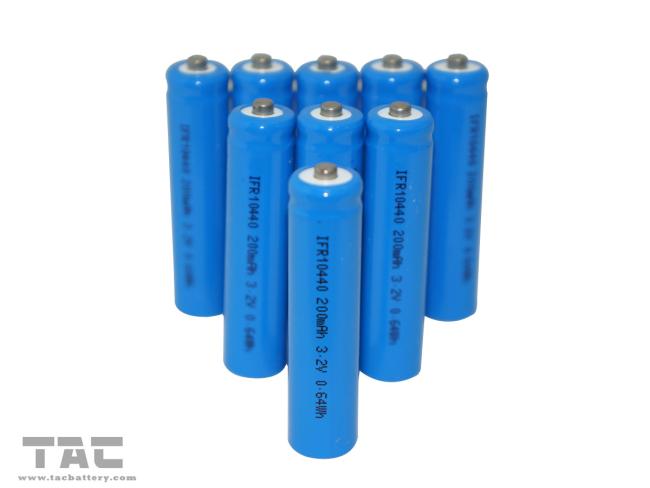

Lithium ion Battery 3.2V LiFePO4 Battery AAA / IFR10440 200mAh For Solar Product
Production list for Lithium Iron Phosphate Batteries
| MODEL | CAPACITY (mah |
| IFR10120 | 35 |
| IFR10440 | 200 |
| IFR14430 | 300 |
| IFR14430 | 400 |
| IFR14430 | 500 |
| IFR14505 | 250 |
| IFR14505 | 300 |
| IFR14505 | 400 |
| IFR14500 | 600 |
| IFR14505 | 600 |
| IFR15270 | 200 |
| IFR17335 | 450 |
| IFR18500 | 600 |
| IFR18500 | 800 |
| IFR18500 | 1000 |
| IFR18650 | 1000 |
| IFR18650 | 1100 |
| IFR18650 | 1200 |
| IFR18650 | 1500 |
| IFR26650 | 3000 |
| IFR21700 | 4800 |
And More

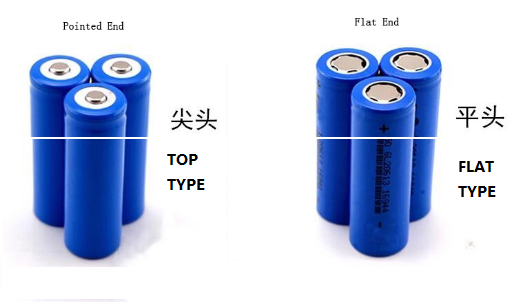

Different between top type and flat type cell
Other Bare Cell for Lithium Iron Phosphate Batteries
TAC Product More Battery Pack For Lithium Iron Phosphate Batteries
Tag: IFR10440 / AAA Li-Ion 3.2V LiFePO4 200mAh Batteries for Solar Product
