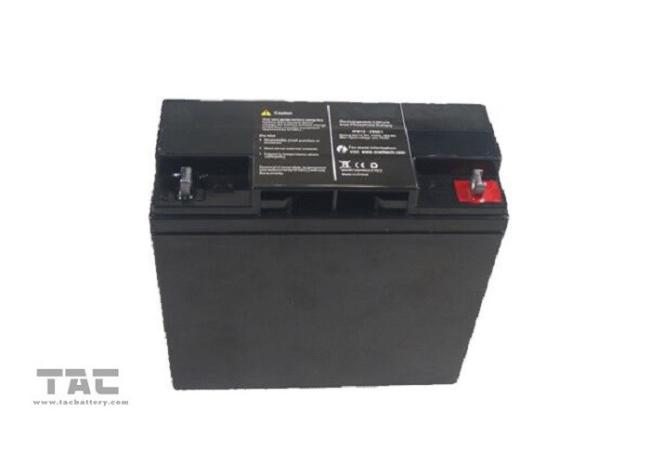

26650 12V LiFePO4 Battery Pack 9.9Ah Rechargeable for Electric Fans
26650 12V LiFePO4 Battery Pack 9.9Ah Rechargeable for Electric Fans
Feature for 26650 12V LiFePO4 Battery Pack 9.9Ah Rechargeable for Electric Fans
1. The replacement of Lead-Acid battery,environmental protection.
2. Longer life, more than 2000 cycles
3. Low self-discharge rate, less than 3% monthly
4. Lighter weight, with the best power-to-weight ratio
5. No memory effects
6. High charging & storage efficiency
7. Environment friendly, Non-toxic, non-contaminating and no rare metal
Specification:
No. | Item | General Parameter | Remark |
1 | Rated Capacity | 9.9Ah | Standard discharge(0.2 C5)after standard charge(0.2 C5) |
2 | Minimal Rated | 9.6Ah | |
3 | Nominal Voltage | 12.8V |
|
4 | Cycle Life | Higher than 60% of the Initial Capacity of the Cells | ◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C |
5 | Discharge cut-off voltage | 10.0V | 10.0V( recommended) |
6 | Charging cut-off voltage | 14.8V | 14.6V (recommended) |
7 | Cell and assembly method |
|
|
IFR26650EC 3.3AH | 4S3P | ||
8 | Housing material | ABS+PC housing |
|
Charge and Discharge Performance
9 | Standard charge | 0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C | Charge time : Approx 7h |
10 | Standard discharge | Constant current 0.2C |
|
11 | Maximum Charge Current | 1C | (0.2C Recommended) |
12 | Continuous Discharge Current | 1C |
|
Peak Discharge Current | 5C |
| |
13 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. |
Discharge: -10~60℃ | |||
14 | Storage Temperature Range | Less than 1 year : 0~25℃ | 60±25%R.H. |
Less than 3 months:-5~35℃ | |||
15 | Weight | Approx:1.6Kg |
|
16 | Max.Dimension | Height:151mm | 151*65*116mm |
Width: 65mm | |||
Length: 116mm |
Application
The Lifepo4 battery pack Mainly used in
- consumer products, digital products, power products, medical and security.
- Power Consumers Digital Health Care Security Electric Heating device
- Electric car mobile phone digital camera palm
- ECG machine fire light warm clothes electronic recipes
- electric bicycle electric car Electric boat Electric Motorcycle
- Notebook digital camera
- camera heating suit electric shaver
- Tablet Bluetooth Headset Portable
- Ultrasound Diagnostic POS Machine
- Hand Warmer Wireless Charging
Packing Manner

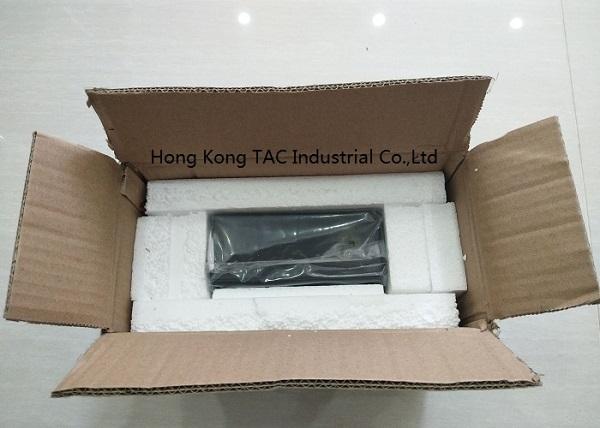

One battery pack was protected by cystosepiment and then put strong paper box
Similar Production Picture
Similar Production
We support more Portable 12.8V-19.8V ESS
Q & A
Q1. Can I just order small samples for the first order?
A: Yes, samples order is acceptable. we can sell just 1-5 pcs for you to confirm the specifications of our products if the buyer charged for shipping fee
Q2. What is your warranty? 3.2 volt lithium phosphate battery
A: We offer 3-5 years warranty for all of our battery pack. we ensure at least 3000 cycle life for the LiFePO4 battery pack, 3000@80% DOD, You can use it for at least 10 years for normal 1 time charge and discharge every day.
