Bobbin 3.6V non-Rechargeable Lithium Battery 19000mAh D Size 34615
Bobbin 3.6V non-Rechargeable Lithium Battery 19000mAh D Size 34615
Quick Detail for Bobbin 3.6V non-Rechargeable Lithium Battery 19000mAh D Size 34615
1. Model Name:ER34616/D
2 . Voltage:3.6V
3. Nominal Capacity:19000mAh
4. Cell Dimension:D:33.1mm*H:61.5mm
5. Weight:22g
Specification:
|
No |
Item |
Data |
|
1 |
Nominal voltage: |
3.6V |
|
2 |
Nominal capacity: |
19000mAh(3mA / 2.0V) |
|
3 |
Discharge end-voltage: |
2.0V |
|
4 |
Operating voltage : |
3.5V(330Ω, in 5s) |
|
5 |
Max constant discharge current: |
200mA |
|
6 |
Max. pulse current: |
400mA |
|
7 |
Ambient temperature range: |
-55~ +85℃ |
|
8 |
Storage life: |
≥10 year, Yearly self-discharge ≤ 1% |
Size for Single cell :
Max dimension : φ34.2mm× H61.5 mm
If you have bought ER battery from other supplier, pls take close attention to max size
in order to avoid the size over your space limit
Feature:
1. High energy density: the battery can reach 420WH/KG and 800WH/dm3
2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load,
the end voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged,
the capacity output is still more than 90%.
4. Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than 10
years under room temperature.
Application:
Intelligent water meter, Ammeter, Gas Meter
Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.
Packing Method:
30PCS/layer, 240Pcs/Carton, weight:26.5KG Size:44*27*33cm
Battery pack:
We can add the wire and connector on the battery if you like

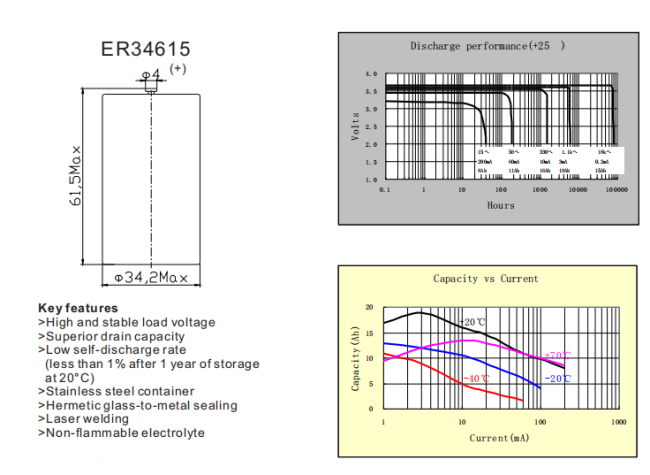

Drawing for ER341615 19AH
More ER Production Model
|
Model
|
Normal
Voltage
(V) |
Dimension
(mm) |
Normal
Capacity (mAh) |
Standard Current
(mA) |
Max Discharge
Continuous (mA) |
Current
Pulse (mA) |
Cut-off
Voltage (V)
|
Weight Approx
|
|
ER14250M
1/2AA |
3.6
|
14.5*25.0
|
750
|
0.5
|
100
|
300
|
2
|
10
|
|
ER14335M
2/3AA |
3.6
|
14.5*33.5
|
1200
|
0.7
|
200
|
400
|
2
|
13
|
|
ER14505M
AA |
3.6
|
14.5*50.5
|
1800
|
1
|
400
|
800
|
2
|
19
|
|
ER17335M
|
3.6
|
17*33.5
|
1700
|
1700
|
500
|
1000
|
2
|
20
|
|
ER18505M A
|
3.6
|
18.5*50.5
|
3000
|
1
|
600
|
1000
|
2
|
32
|
|
ER26500M
C |
3.6
|
26.2*50.5
|
6500
|
2
|
1000
|
1500
|
2
|
55
|
|
ER34615M
D |
3.6
|
34.2861.5
|
13000
|
10
|
2000
|
3000
|
2
|
106
|
