12.8V Lithium Iron Phosphate 12V LiFePO4 Battery Pack 9Ah 10Ah For Motorbike
12.8V Lithium Iron Phosphate 12V LiFePO4 Battery Pack 9Ah For Motorbike
Specification for 12.8V Lithium Iron Phosphate 12V LiFePO4 Battery Pack 9Ah For Motorbike
|
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
9 Ah 10ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5) |
|
2 |
Minimal Rated Capacity |
12Ah |
|
|
3 |
Nominal Voltage |
12.8V |
|
|
4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles |
|
5 |
Discharge cut-off voltage |
10.0V |
10.0V( recommended) |
|
6 |
Charging cut-off voltage |
14.8V |
14.6V (recommended) |
|
7 |
Cell and assembly method |
|
|
|
IFR18650EC 1.5AH |
4S6P |
||
|
8 |
Housing material |
abs+pc |
black |
Feature:
- 12.8V 9AH Battery Pack with bms assembled by IFR18650 1.5AH 3.2V single cell and pack with 4s6p
- Standard housing size can replace the lead acid direcly
- Environment friendly,all the raw material passed Rohs Certification
- Low self dischrge current , the remain capacity is 70% after stock 1 year
- Operation temperature range:-20℃to 60 ℃
Application for Battery Pack
The battery pack can assembled to various voltage and capacity for EV ECAR
48V170AH system is suited to 3KW~5KW load for example
Golf cart , tour bus (less than 11 seats ) , bubble car Environmental sanitation car ,dining car, . mini truck
72V110AH system is suited to 5KW~6.5KW load for example
tour bus ( 11 -18 seats ),police patrol car ,electrocar ,truck for factory
Packing
Packing follow rules for safe transport of good by sea , one set system was protected double level sponge and then put into the standard paper carton, and put into the wood pallets
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per three months to prevent over-discharge.
Period of Warranty
The period of warranty is 12 months from the date of shipment.We guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

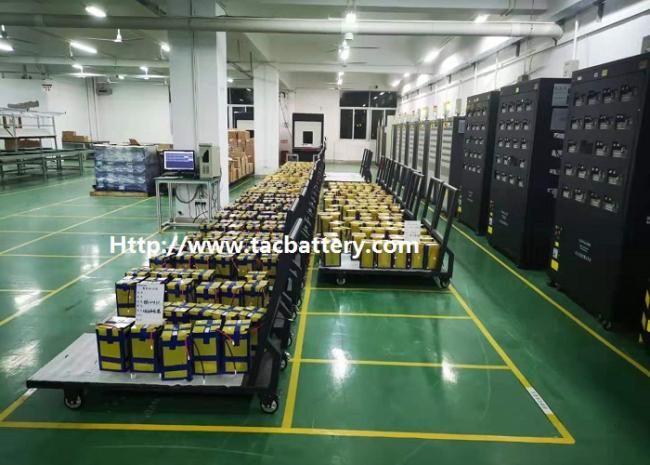

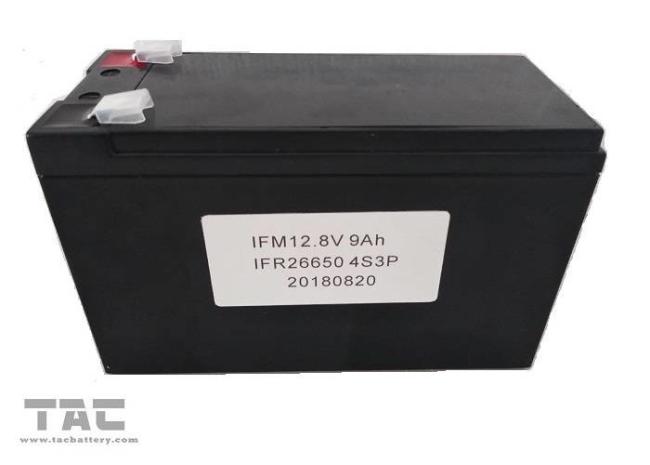

Picture for Similar Protduction
