IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light
IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P for Solar Street Light
Feature for IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P for Solar street light
1. IFM12.8V12Ah LiFePo4 Battery Pack made by IFR 26650 3AH 3.2V via assembled in 4S4P.
2. Safe battery pack with battery manager system
3. Standard size for 26650 meet various application
4. Long cycle life: over 2000 times charge and discharge circle
5. No pollution,eco-friendly passed Rohs
8. MOQ: 2set for samples and 50set for Mass production are workable
Quick Detail:
| Model Number: | 12.8V12Ah | Brand Name: | TAC-PIFP0748 |
| Nominal Voltage: | 12.8V | Rated Capacity: | 12AH |
| Type: | LiFePO4 Lithium Battery | Size: | T33:W320:H272mm |
| Weight: | 1.4KG | Certification | UN, ROHS, REACH Compliance |
| OEM & ODM: | Support | Warranty: | 12months |
IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P Cell Specification:
| No. | Items | Specifications | |
| 1 |
Nominal Capacity
|
3000mAh | |
| 2 |
Minimum Capacity
|
2940mAh | |
| 3 |
Nominal Voltage
|
3.2V | |
| 4 |
Delivery voltage
|
3.2~3.3V | |
| 5 |
Charge Voltage
|
3.65V±0.03V | |
| 6 |
Standard charging method
|
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C | |
| 7 |
Charge current
|
0.2C | 600mA |
| 0.5C | 1500mA | ||
| 8 |
Standard discharging method
|
0.2C constant current discharge to2.0V, | |
| 9 |
Cell Internal Impedance
|
≤40mΩ | |
IFM12.8V12Ah LiFePO4 Battery Pack 26650 4S4P Application:
- Solar street light
- Such as e-bike
- Scooter
- Electric tool
- Electric drill
- Electric saw
- Small medical equipment
- Portable equipment

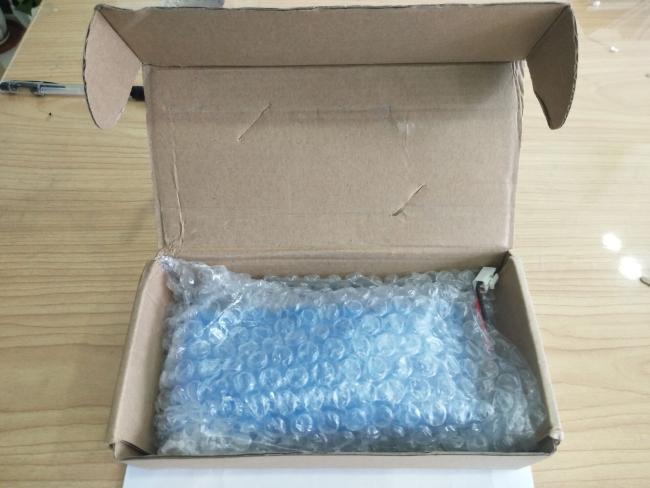

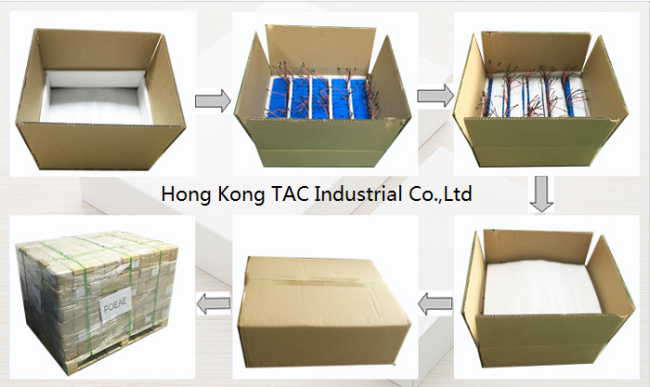

Packing Detail

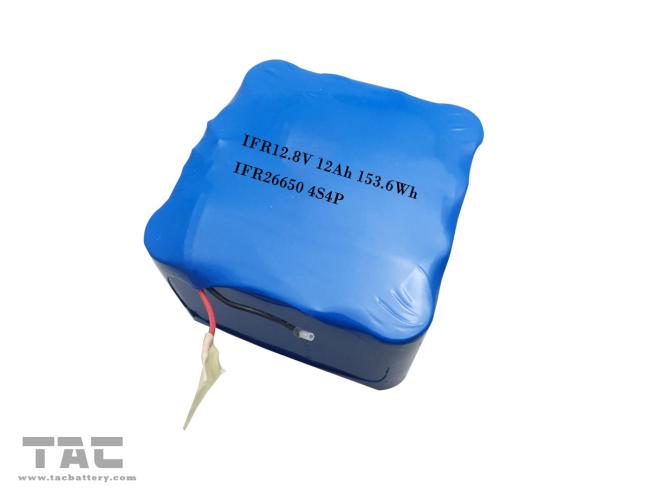

Picture for 12.8V12Ah LiFePo4 Battery Pack:

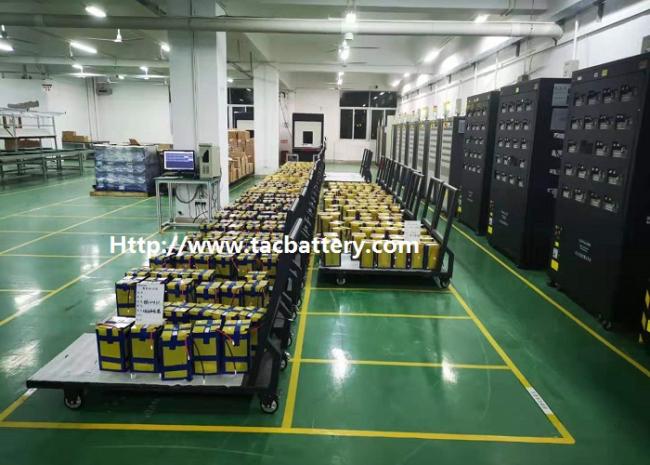

Quality Control
we check the voltage and internal resistance of each cell , to ensure the difference among the cells are within the required value to keep the high consistency for battery pack
Period of Warranty
The period of warranty is 12 months from the date of shipment. TAC guarantees to give a
replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that battery to be charged once each three months to prevent over-discharge
