LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
Quick Detail:
| Model Number: | 12.8V18Ah | Brand Name: | TAC-PIFP0753 |
| Nominal Voltage: | 12.8V | Rated Capacity: | 18AH |
| Type: | LiFePO4 Lithium Battery | Size: | T33:W159:H272mm |
| Weight: | 2.1KG | Certification | CE, UN, ROHS, MSDS REACH Compliance |
| OEM & ODM: | Support | Warranty: | 12Months |
LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting Specification:
| No. | Items | Specifications |
Remark |
|
| 1 |
Nominal Capacity |
3000mAh |
0.2C Standard discharge |
|
| 2 |
Minimum Capacity |
2940mAh | ||
| 3 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
| 4 |
Delivery voltage |
3.2~3.3V |
Within 10 days from Factory |
|
| 5 |
Charge Voltage |
3.65V±0.03V |
By standard charge method |
|
| 7 |
Charge current |
0.2C | 600mA |
Standard charge, charge time about 6h(Ref) |
| 0.5C | 1500mA |
Rapid Charge, charge time about: 3h(Ref) |
||
| 9 |
Cell Internal Impedance
|
≤40mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
IFR26650 4S6P 12.8V 18AH LiFePO4 Battery 12V Lithium Battery Pack Specification:
| No | Item | Parameter | |
| 1 | Nominal Voltage | 12.8V | |
| 2 | Rated Capacity | 18AH | |
| 3 | Max.constant discharge current | 13.5A | |
| 4 | Charging Mode | CC/CV | |
| 5 | Charging Current | 3-6A | |
| 6 | Working Voltage Range | 10-14.6V | |
| 7 | Over charging Protection Voltage | 15.6V | |
| 8 | Over discharging Protection Voltage | 10V | |
| 9 | Communication | Nope | |
| 10 | Others | Nope | |
| 11 | Life Cycles |
≥1500 times |
|
| 12 | Working Temp.(CC/CV) | Working | 0℃~65℃ |
| 13 | Storage | -20℃~45℃ | |
| 14 | Dimension | T | 33mm |
| W | 159mm | ||
| H | 272mm | ||
| 15 | Weight | 2.1kg | |
| 16 |
Cables/ |
Cables OEM |
|
Picture for LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
Product Advantages
- Long standby time
- One year warranty
- Excellent safety performance
- Excellent storage performance and low self-discharge rate
- Short circuit testing passed
- Overcharge testing passed
Application
- Small medical equipment and portable equipment
- Remote control cars, boat, aircraft, toys
- Large-scale electric vehicles: electric bus, electric car, E-Tour Car
- Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
- E-tool: electric drill, electric saw, lawn mower and so on
- Solar and wind power generation energy storage devices, Telecom base Station

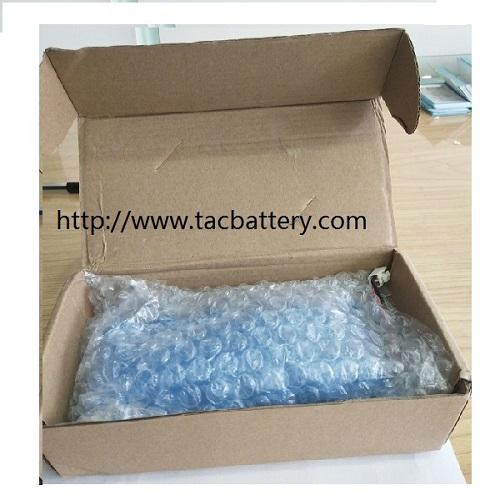

Transportation Packing Photo
The battery were wrapped by double level sponge bag, one set for one inner box, and 8-10 box for one standard paper carton
