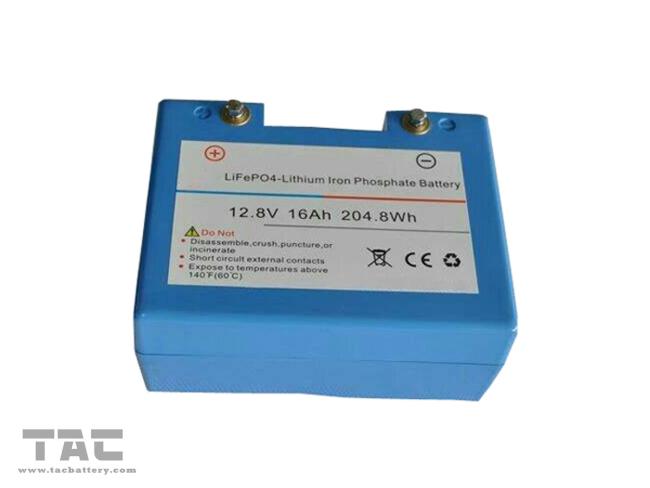

LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley
Features For LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley
1.LiFePO4 Battery 12.8V16Ah 208.4Wh Lithium ion Battery
2. Solar System, Wind System and Other ESS used Lithium ion Battery Pack
3. Large energy density
4. Long cycle life 2000 times ,and low self discharge
5. No pollution,eco-friendly ,all raw material passed Reach
6. Improved safety with BMS
7. Good high-temperature performance meet specially require
8. MOQ: 50set
Quick Detail for LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley
| Model Number: | 12.8V16Ah | Brand Name: | TAC-PIF0002 |
| Nominal Voltage: | 12.8V | Rated Capacity: | 16AH |
| Type: | Lithium Battery | Size: | L128*W75*H168mm |
| Weight: | 2.25Kg | Certification: | CE/ROSH/UL/MSDS/UN38.3 |
| OEM & ODM: | Support | Warranty: | 12months |
Packaging & Delivery
| Packaging Details: | standard package for lithium ion battery packs |
| Delivery Detail: | shipped in 5 days after payment |
LiFePO4 Battery 12.8V16Ah 208.4Wh Lithium ion Battery Specification:
|
No.
|
Item | General Parameter |
Remark
|
| 1 | Rated Capacity | 16.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5)
|
| 2 |
Minimal Rated Capacity |
16.0Ah | |
| 3 | Nominal Voltage | 12.8V | |
| 4 |
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
Charge: CC @0.2C to 14.6V, then CV till current to 0.05C Rest: 30min. Discharge: 0.2C to 10.0V Temperature:20±5°C Carry out 2000cycles |
| 5 | Discharge cut-off voltage | 9.2V |
10.0V( recommended) 10.0V |
| 6 | Charging cut-off voltage | 14.8V |
14.6V (recommended)
|

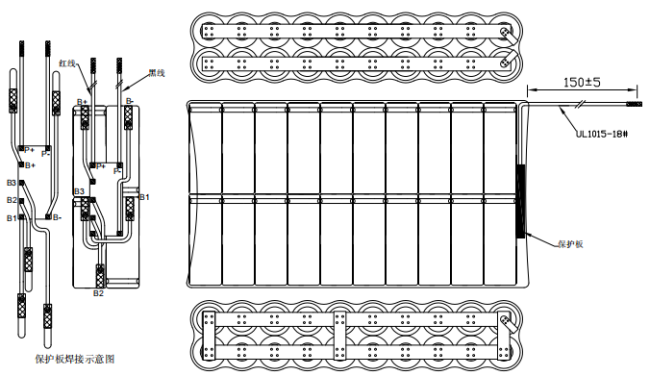

| 7 | Cell and assembly method | IFR26650EC-3.3AH | 4S5P |
| 8 | Housing material | ABS+PC | |
| 9 | size: |
L168*W75*H128mm |
Discharge and Charge Performance
|
No.
|
Item
|
General Parameter
|
Remark
|
| 9 |
Standard charge
|
0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C
|
Charge time : Approx 7h
|
| 10 |
Standard discharge
|
Constant current 0.2C Cut-off voltage 10.0V
|
|
| 11 |
Maximum Charge Current
|
7A | |
| 12 |
Continuous Discharge Current
|
7A | |
| 13 |
Operation Temperature Range
|
Charge: 0~45℃ |
60±25%R.H.
|
| Discharge: -10~60℃ | |||
| 14 |
Storage Temperature Range
|
Less than 1 year : 0~25℃ 0~25℃) |
60±25%R.H. at the shipment state
|
|
Less than 3 months:-5~35℃ -5~35℃) |
|||
| 15 |
Weight
|
Approx/: 1.80Kg | |
| 16 |
Max. Dimension
|
thickness/:33mm |
|
| Width/: 133mm | |||
| Length/: 272mm |
Similar Battery Pack Picture
We have similar model 12.8V 15AH for Solar Lighting
