12V Lifepo4 IFR26650 70AH Long Life For Solar Power and Battery Storage
12V Lifepo4 IFR26650 70AH Long Life For Solar Power and Battery Storage
Key Parameter for 12V Lifepo4 IFR26650 70AH Long Life For Solar Power and Battery Storage
|
No.
|
Item
|
General Parameter
|
Remark
|
| 1 |
Rated Capacity
|
70.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5)
|
| 2 |
Minimal Rated Capacity
|
69.0Ah | |
| 3 |
Nominal Voltage
|
12.8V | |
| 4 |
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles 100%DOD ◆Carry out 3000cycles 80%DOD ◆Carry out 3500cycles 60%DOD
|
| 5 |
Discharge cut-off voltage
|
9.2V |
10.0V( recommended) 10.0V |
| 6 |
Charging cut-off voltage
|
14.6V |
14.6V (recommended) 14.6V |
| 7 |
Cell and assembly method
|
IFR26650EC-3.3AH | |
| 8 |
Housing material
|
PVC | |
| 11 |
Charge Current
|
10A | |
| 12 |
Continuous Discharge Current
|
15A | |
| 15 |
Weight
|
Approx/: 8.2 0Kg | |
| 16 |
Max.Dimension
|
Thickness/:31mm |
|
| Width/: 295mm | |||
| Length/: 540mm |

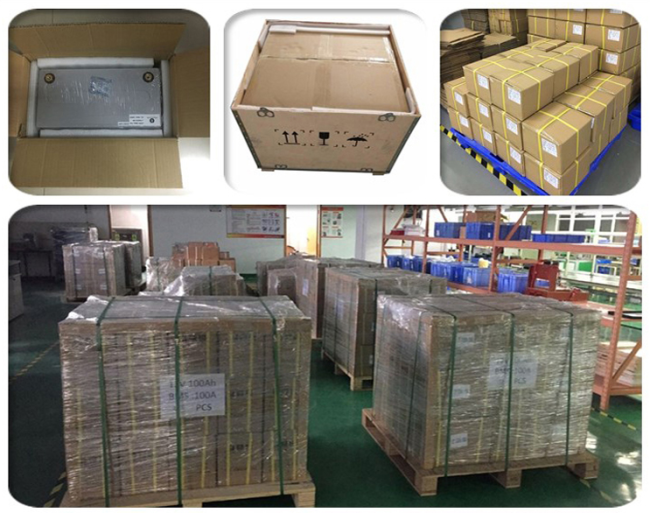

Packaging & Delivery
|
Packaging Details:
|
Standard Industry Carton+Wooden Pallet
|
|
Delivery Detail:
|
Shipped in 20 days after payment
|
Application for Solar Power And Battery Storage Lifepo4 IFR26650EC-3.3AH 12V
- Solar street light
- Such as e-bike
- Scooter
- Electric tool
- Electric drill
- Electric saw
- Small medical equipment
- Portable equipment
Caution
- Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.
- Does not use or leave the battery near a heat source as fire or heater
- Use the battery charger specifically for that purpose when recharging.
- Do not reverse the position and negative terminals.
- Do not connect the battery electrodes to an electrical outlet.
- Do not discard the battery in fire or a heater.
- Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
- Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
- Do not strike, trample or throw the battery.
- Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
Similar Model for Solar Power And Battery Storage Lifepo4 IFR26650EC-3.3AH 12V
| Type | Nominal Voltage | Nominal Capacity | Height | Width | Weight | Max Discharging Current |
| IFM48V10AH | 48V | 10Ah | 1U | 19'' | 6.6Kg | 10A |
| IFM48V25AH | 48V | 10Ah | 2U | 19'' | 13.0KG | 25A |
| IFM48V40AH | 48V | 40Ah | 2U | 19'' | 28.0Kg | 30A |
| IFM48V50AH | 48V | 50Ah | 2U | 19'' | 28.5Kg | 35A |
| IFM96V20AH | 96V | 20Ah | 2U | 19'' | 29.0Kg | 35A |

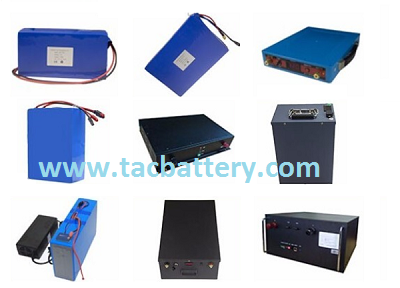

Similar Picture for Battery Pack
