IFR26650 4S8P 24Ah 12V LiFePO4 Battery Pack For Solar Street Light
IFR26650 4S8P 12.8V 24Ah LiFePo4 Battery for All In One Solar Street Light
Quick Detail:
| Model Number: | 12.8V24Ah | Brand Name: | TAC |
| Nominal Voltage: | 12.8V | Rated Capacity: | 24AH |
| Type: | LiFePO4 Lithium Battery | Size: | L228:W124:H75mm |
| Weight: | 3.10Kg | Certification: | UL,ROHS,CE,CK ,BIS. |
| OEM & ODM: | Support | Warranty: | 12Months |
IFR26650 4S8P 12.8V 24ah LiFePo4 Battery Specification:
No. | Item | General Parameter | Remark |
| 1 | Rated Capacity | 24Ah | Standard discharge(0.2 C5)after standard charge(0.2 C5) |
| 2 | Minimal Rated | 23Ah | |
| 3 | Nominal Voltage | 12.8V | |
| 5 | Discharge cut-off voltage | 10.0V | 10.0V( recommended) |
| 6 | Charging cut-off voltage | 14.6V | 14.6V (recommended) |
| 7 | Cell and assembly method | IFR26650-3AH | 4S8P |
| 8 | Housing material | PVC | |
| 9 | Weight | Approx/:3.10Kg | |
| 10 | Max.Dimension | Height:75mm | |
| Width:124mm | |||
| Length:228mm |
Application:
- LED lamps
- Wireless monitoring devices
- Medical equipment
- Instruments and meters
- Traffic sign
- Small household appliances
- Electric tools
- Toys

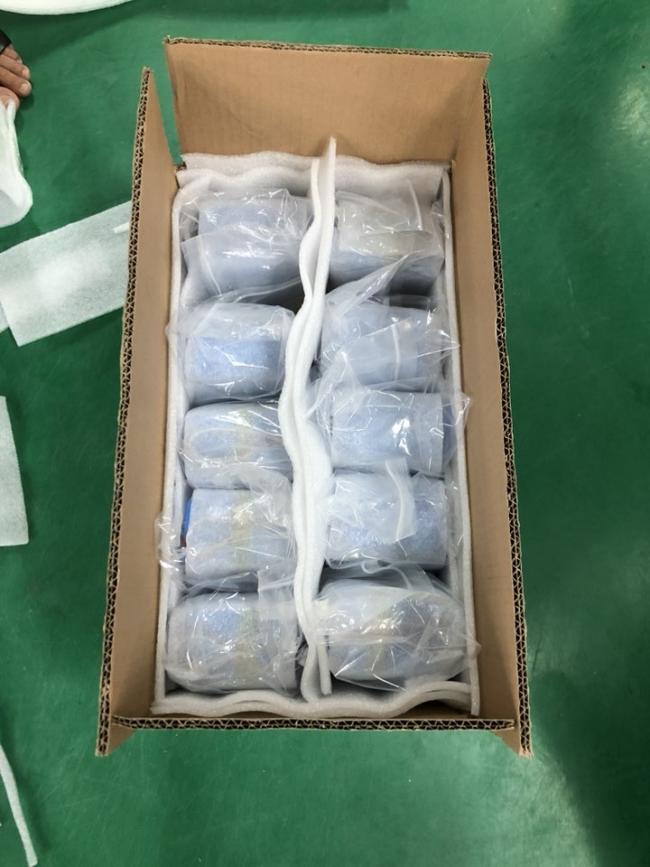

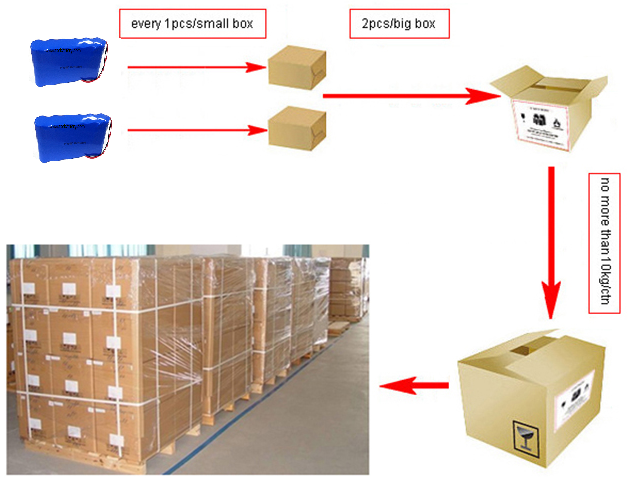

Package for IFR26650 4S8P 12.8V 24ah LiFePo4 Battery Lifepo4 Battery
1.each battery pack protect by sponge
2.each battery pack put into plastic bag
3. each battery pack put into export inner box
IFR26650 4S8P 12.8V 24ah LiFePo4 Battery Lifepo4 Battery

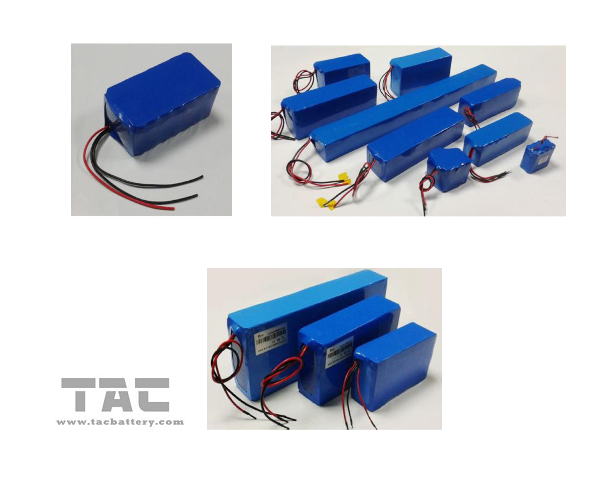

Similar Production for 12v Lifepo4 Battery Pack
We have similar model for 12.8v 25ah if this model can not meet your require
Period of Warranty
The period of warranty is 12 months from the date of shipment. TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over-discharge.
Protection function
the battery pack with PCB, protection function is including of Over charged,over current,over discharged,short circuit,balance charged,temperature etc
OEM/ODM service
1.Customized battery packs, tags,labels, plugs, connectors, protection circuit module(PCM) and other electrinic part for pack
2.we could design and develop battery solution according to customer's product work performance & structure appearance and size.
