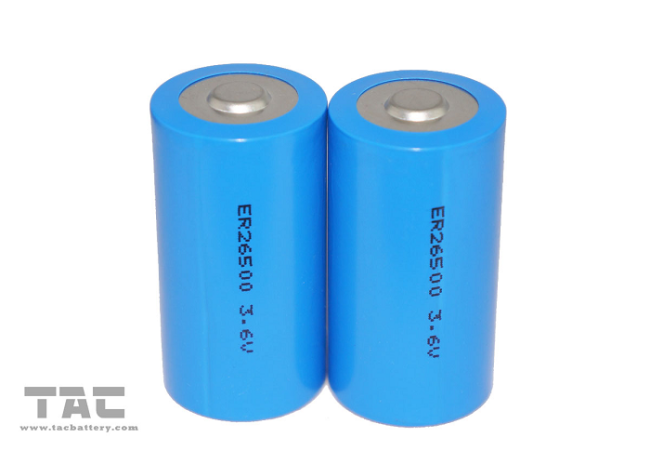

C Model 3.6v Lithium LiSOCL2 Dry Battery ER26500 9AH for Water Meter Ammeter

Price Negotiable

Price: base on quantity

MOQ: 100 pcs

Delivery Time: 7-25 days after order confirm

Brand: TAC

Product Description

C Model 3.6v Lithium LiSOCL2 Dry Battery ER26500 9AH for Water Meter Ammeter

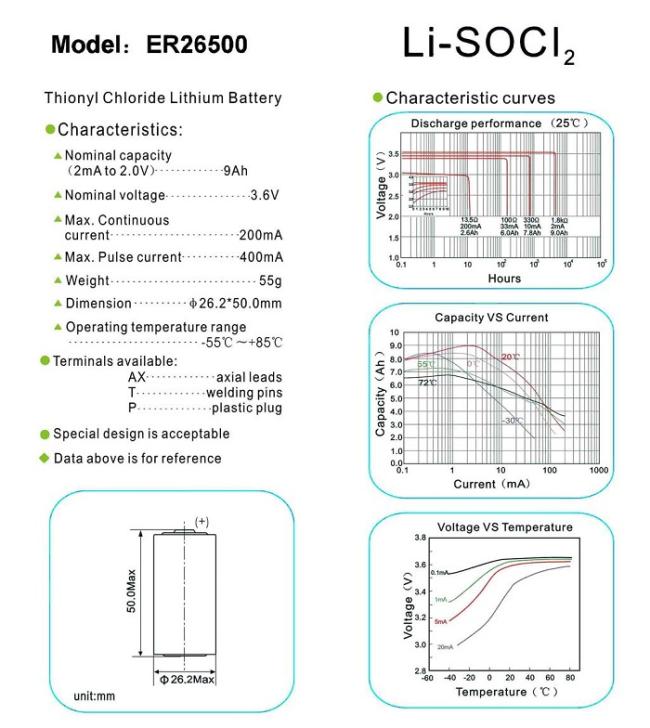

Appearance & Dimension/Weight

1) Appearance: Cylinder

2) Max dimension : φ26.2mm×h50.0mm

3) Max weight: 55g

Detail information for C Model 3.6v Lithium LiSOCL2 Dry Battery ER26500 9AH for Water Meter Ammeter

Item	Measuring Procedure	Standard
1.Appearance	Visual check	Clean, unscratched and clearly labeled
2.Dimenaions	Measured by calipers with precision of 0.02mm	Max φ26.2×50.0mm
3.Weight	Weighed by balance with precision of 0.1g	Max 55g
4.Open-circuit voltage	Measure by volt-meter with precision of 0.01V	≥3.65V
5.Operating voltage	Measure by volt-meter with precision of 0.01V, connecting an impedance of 330Ωin series, Reaching the target voltage in 5 seconds.	≥3.45V
6.Nominal discharge	330Ω,20±2℃, Constant discharge to 2.0V.	≥7500mAh
7.Rapid discharge	62Ω,20±2℃, Constant discharge to 2.0V.	≥6500mAh
8. Discharge at high temperature	Put battery in constant ambient temperature of 55±2℃ for 16 hours, discharge at 330Ω to 2.0V/cell.	≥7800mAh
9.Discharge at low temperature	Put battery in constant ambient temperature of -40±2℃ for 16 hours, discharge at 1200Ω to 2.0V/cell	≥4800mAh
10.Charge	Prohibited	Prohibited
11.Over-discharge	Prohibited	Prohibited
12.Self discharge	Store the batteries at constant temperature of 20±5℃, Measure the nominal capacity yearly for 10 years.	≤1%

Features:

Fire,explosion and severe burn hazard.Do not recharge,crush,disassemble heat above100℃, Incinerate, or expose contents to water . Do not solder directly to the cell
