PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike
PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike
Product Specification for PVC Housing 12V LiFePO4 Battery Pack 26650 36ah For Electrical Bike
| No. | Item | General Parameter | Remark |
| 1 | Rated Capacity | 36.0Ah | Standard discharge(0.2 C5)after standard charge(0.2 C5) |
| 2 | Minimal Rated | 35.0Ah | |
| 3 | Nominal Voltage | 12.8V | |
| 4 | Cycle Life | Higher than 60% of the Initial Capacity of the Cells | Charge: CC@0.2C to 14.6V, then CV till current to 0.02C |
| 5 | Discharge cut-off voltage | 9.2V | 10.0V( recommended) |
| 6 | Charging cut-off voltage | 14.8V | 14.6V (recommended) |
| 7 | Cell and assembly method | IFR26650-3.0AH | 4S12P |
| 8 | Housing material | PVC |
The Charge And Discharge Performance And Measure
No. | General Parameter | Remark | |
| 9 | Standard charge | 0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.02C | Charge time : Approx 7h |
| 10 | Standard discharge | Constant current 0.2C | |
| 11 | Maximum Charge Current | 10A | |
| 12 | Continuous Discharge Current | 10A | |
| 13 | Operation Temperature Range | Charge:0~45℃ | 60±25%R.H. |
| Discharge: -10~60℃ | |||
| 14 | Storage Temperature Range | Less than 1 year : 0~25℃ | 60±25%R.H. |
Less than 3 months:-5~35℃ | |||
| 15 | Weight | Approx/: 3.60Kg | |
| 16 | Max. Dimension | thickness/:33mm | |
| Width/: 295mm | |||
| Length/272mm |
12v Lithium ion Battery Application
The Lifepo4 battery pack widely use in our daily life including of the Power tool, E-cig, E-bike, Robot, E-bike, Bright flashlight, headlights, Mobile medical equipment, digital camcorder, digital camera, e-book, household electrical appliances, and other equipment etc.
Packaging & Shipping
1. the battery protect the foam bag one by one and put it into 3 times outer pack
2. UPS / DHL / EMS/ FEDEX / TNT within 7 working days
3. The shipping cost is different in different country and weight ,we will choose the cheapest one for you always.

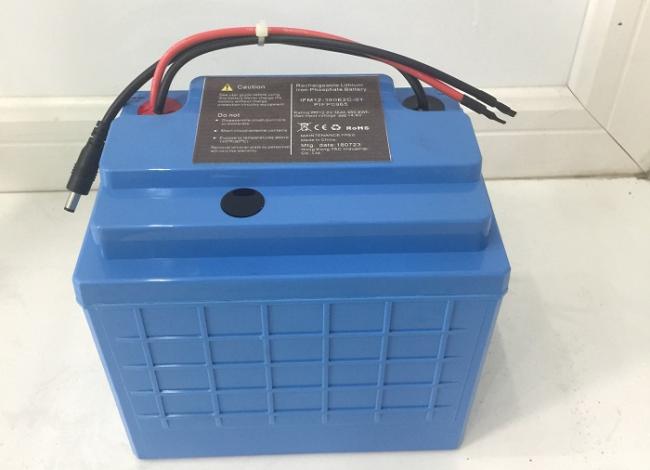

Battery Show
TAC Trade Terms:
Payment: T/T, PayPal for sample,small order);L/C
30% deposits,70% balance before delivery (batch order).
Delivery Time: 7-10days(if the samples did have stock ),10-15days(base on small order),35-40days(for batch order)
MOQ: 50pcs
Features and Advantages of Lifepo4 Battery
- Excellent high and low temperature discharge performance . Nominal voltage 3.2V, 90% capacity output under the stable voltage
- Widely using temperature range, can be operated in -40°C~+60°C.
- Excellent storage life and reliability. With low self-discharge, self-discharge rate≤5% monthly.
- Flexible design,also can make special design for customers.
- Long cycle life, more than 2000 charge/discharge cycles ( 80% capacity remained ).
- lithium batteries are environmentally friendly and pollutant free power, it's without mercury, cadmium,lead and other heavy metals.pass the REACH ROHS
Why chose us
- over 8 year professional manufacturer in lithium-ion battery Lifepo4 polymer lithium battery
- Low MOQ :we can agree with small quantity even 1 set samples and try our best to meet you business very well
- OEM ODM accepted :please send us you design, we can submit best solution not only for the battery cell but also BMS and specially wire or connector
- Good service :Quickly action and respond.Professional technology support
- Good quality :We are vendor for Samsung
- Fast&safe delivery :strong export team, and export forward partner
Factory Certification
Full -automatic machion for TAC

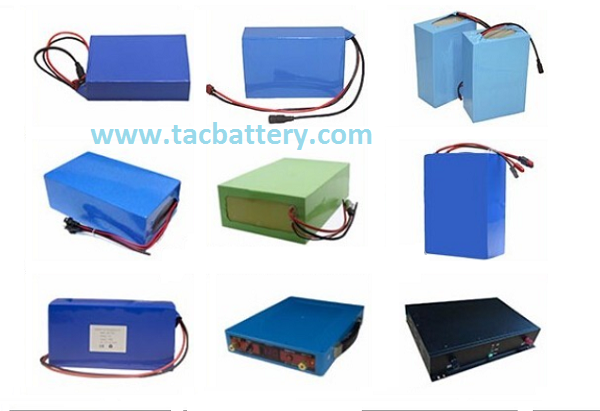

Similar Product photo
