Blue 12V LiFePO4 Battery Pack 26650 23AH With Housing UL2054 For Solar Lighting
12V LifePO4 Battery Pack 26650 23AH With Housing UL2054 for Solar Lighting
Feature for 12V LifePO4 Battery Pack 26650 23AH With Housing UL2054 for Solar Lighting
-
Lifepo4 Lithium Solar Battery, Extremely safe and stable chemistry: PCB and/or BMS built inside to protect the battery.
-
Long life-cycle: Best can up to 2000 times recycles, 8 times of Lead acid battery.
-
Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
-
Good performance at high temperature.
-
Low self-discharge rate, less than 3% monthly.
-
Environment friendly: Non-toxic, non-contaminating and no rare metal. Passed Reach
Detail Date for 12V LifePO4 Battery Pack 26650 23AH With Housing UL2054 for Solar Lighting
|
No.
|
Item
|
General Parameter
|
Remark
|
| 1 |
Rated Capacity
|
23.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5)
|
| 2 |
Minimal Rated Capacity
|
21.85Ah | |
| 3 |
Nominal Voltage
|
12.8V | |
| 4 |
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles |
| 5 | Discharge cut-off voltage | 8.0V | |
| 6 | Charging cut-off voltage | 14.6V | |
| 7 | Cell and assembly method | IFR26650-3.3AH | 4S7P |
| 8 | Housing material | Flame retardant plastic |

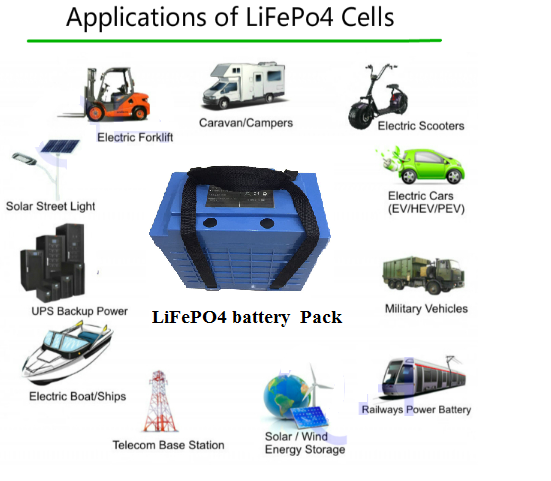

Application
-
Large-scale electric vehicles: electric bus, electric car, E-Tour Car
-
Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
-
tool: electric drill, electric saw, lawn mower and so on
-
Remote control cars, boat, aircraft, toys
-
Solar and wind power generation energy storage devices, Small medical equipment and portable equipment.
Packing Manner
The battery pack was putted into bag, 1 set for one box , 2 box for one carton

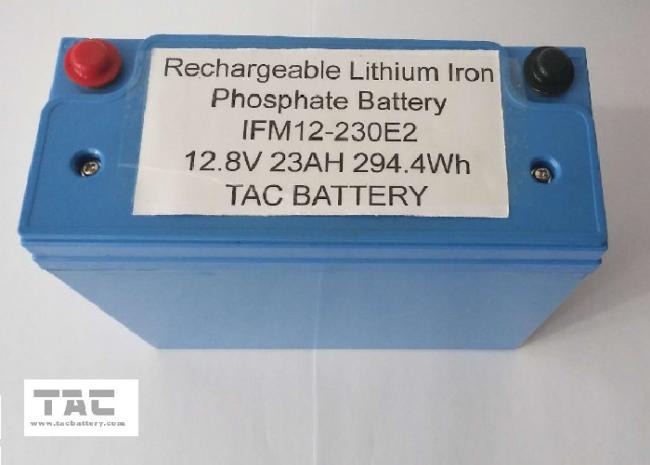

Battery Pack Picture

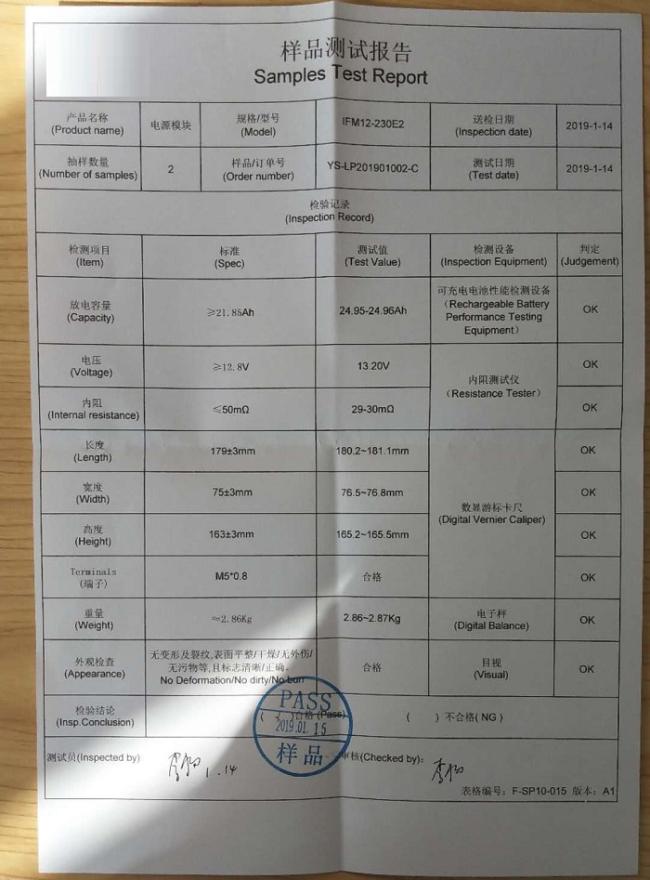

Test Report

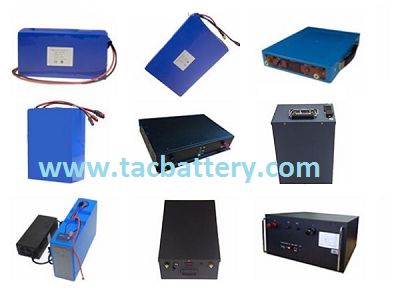

Maybe you are interested in more model as below
| Model Name | Battery Chemical | Nominal Voltage | Out put Voltage | Max Discharge Current | G.W. | Cell Inside | Assembling | |
| Max | Min | |||||||
| INM24V8.8Ah | Li(MnNiCo)O2 | 25.9V | 29.4V | 21V | 15A | 2.8KG | INR18650 2200mAh | 7S4P |
| INM24V10.4Ah | Li(MnNiCo)O2 | 25.9V | 29.4V | 21V | 15A | 3.0KG | INR18650 2600mAh | 7S4P |
| INM36V8.8Ah | Li(MnNiCo)O2 | 37V | 42V | 30V | 15A | 3.4KG | INR18650 2200mAh | 10S4P |
| INM36V10.4Ah | Li(MnNiCo)O2 | 37V | 42V | 30V | 15A | 3.5KG | INR18650 2600mAh | 10S4P |
| IMM24V10Ah | LiMnO4 | 25.9V | 29.4V | 21V | 15A | 2.99KG | Enax Lithium Polymer | 7S1P |
| IMM36V10Ah | LiMnO4 | 37V | 42V | 30V | 15A | 3.7KG | Enax Lithium Polymer | 7S1P |
| IFM24V9.9Ah | LiFePO4 | 25.6V | 29.2V | 16V | 15A | 3.5KG | IFR26650 3300mAh | 8S3P |

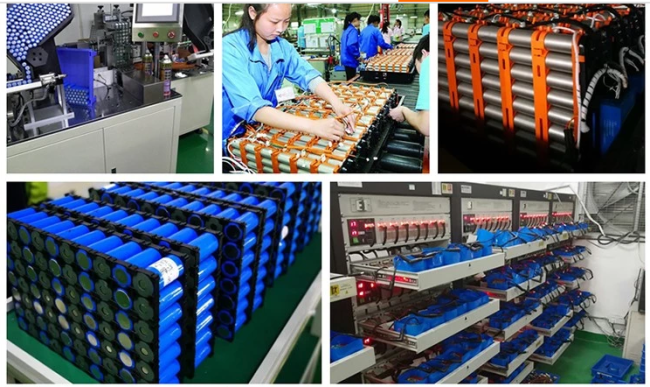

Our Factory
Tac Battery Also support 12v Prismatic battery pack .
