Metal Housing 60V 30AH Lifepo4 Battery Pack For Motor Tricycle Deep Circle
60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle
Advantage for 60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle
- high energy with long distance cruise capability
- stable voltage platform provide more energy,make the battery compact size and light weight
- olivine structure Lifepo4 with excellent safety performance
- standard modular, lead-acid replacement battery
- powerful BMS provide ultimate protection of the battery
Specification for 60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle
|
Item
|
General Parameter
|
Remark
|
|
|
Combination method
|
20S5P | ||
|
Rated Capacity ) |
Typical
|
30Ah |
Standard discharge after Standard charge(package)
|
|
Minimum
|
30Ah | ||
|
Nominal Voltage
|
60V-66V |
Mean Operation Voltage
|
|
|
Discharge Cut-off Voltage
|
44.8V |
Discharge Cut-off Voltage
|
|
|
Charging Voltage
|
69.35V | ||
|
Internal Impedance
|
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
|
|
|
Standard charge
|
Constant Current 0.2C Constant Voltage57.6V 0.02CA cut-off
|
Charge time : Approx6 h
|
|
|
Standard discharge
|
Constant current:0.2C end voltage 44.8V
|
||
|
Maximum Continuous Charge Current
|
15A | ||
|
Maximum Continuous Discharge Current
|
35A | ||
|
Operation TemperatureRange
|
Charge: 0~45℃ |
60±25%R.H. Bare Cell
|
|
| Discharge: -20~60℃ | |||
|
StorageTemperatureRange
|
Less than 12 months : -20~25℃
|
60±25%R.H. at the shipment state
|
|
|
less than 3 months: -20~40℃
|
|||
|
Less than 7 day : -20~60℃
|
|||
|
Dimensions
|
OEM ODM | APPROX | |
|
Weight
|
11.0KG | APPROX | |
|
(Delivery SOC) |
50%-60% | ||
|
(Package) |
(Paper carton + Wooden Pallet) | ||

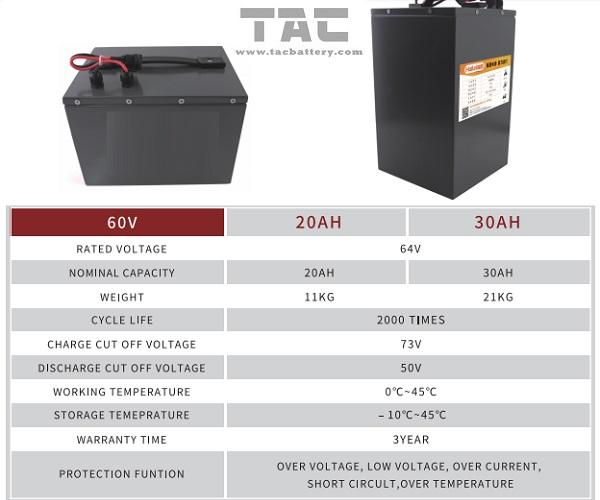

Model Pictures

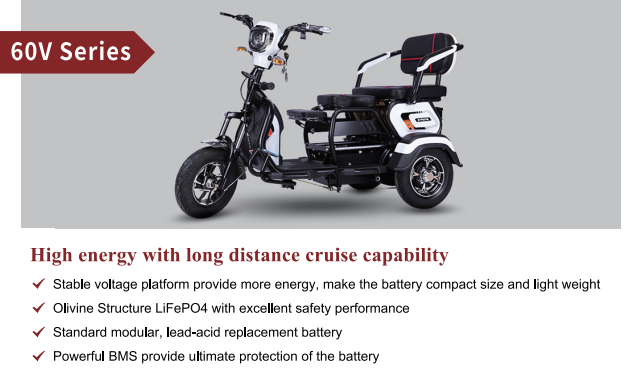

Application :
the battery pack design for motor tricycle

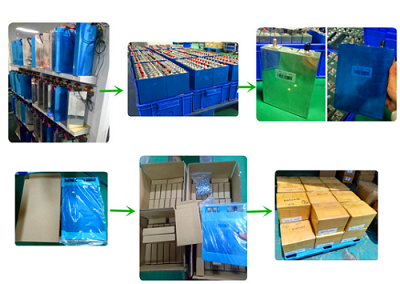

Packing Detail
The battery pack will be protected by specially pallet avoid damange during the shipping
Similar Production

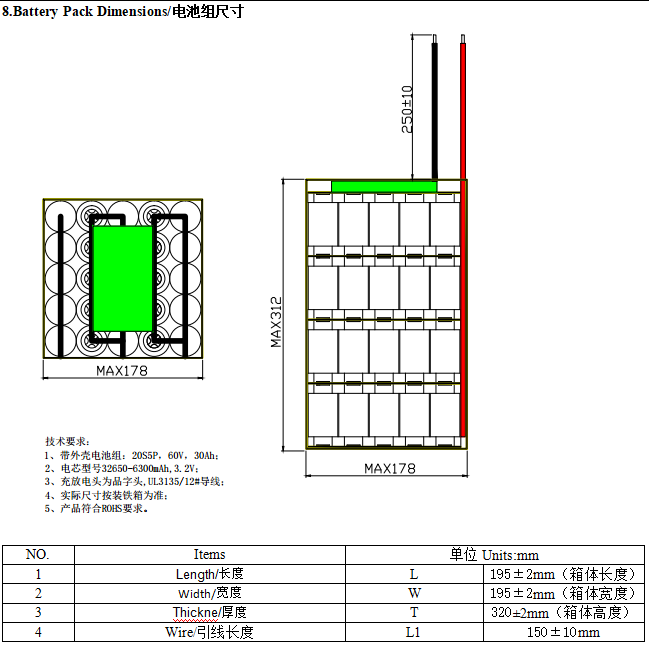

Drawing for 60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle
