Cylindrical LiFePO4 Battery IFR32700 6AH 3.2V With Tag For Electronic Fence
Price:
usd 3-5
MOQ:
200PCS
Delivery Time:
7 days for single cell 15-20 days for battery pack
Brand:
TAC OEM ODM
Product Description
LiFePO4 Battery IFR32700 6AH 3.2V With Tag for Electronic Fence
Specification for LiFePO4 Battery IFR32700 6AH 3.2V With Tag for Electronic Fence
| Item | Specification |
| Battery Type | LiFePO4 battery |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 6AH |
| Battery Type | Cylindrical with tag |
| Discharge Cut-off | 2.5V |
| Charge Cut-off | 3.65V |
| Charge Current | 0.2C |
| Continuous Discharge | 0.5C |
| Peak Discharge | 6A |
| Impendance: | ≤30mΩ |
| Charge Temperature | 0℃ - 45℃ |
| Discharge Temperature | -20℃ - 60℃ |
| Charge Method | CC/CV |
| Life Cycle | 2000-3000 |
| Application | Solar/UPS |
| Dimension | D32mm H70mm |
| Weight | 140g |
| Warranty | 12 months |
| Package | 100pcs/box |
Feature for LiFePO4 Battery IFR32700 6AH 3.2V With Tag for Electronic Fence
- Specially design : The 2-pin terminal is on the (-) side and The 1-pin terminal on the (+) side of the battery.
- support various original connector , customized connector is workable
- Single cell passed UL certfication and Reach
- more accurate size
- We can support low moq for the customized order

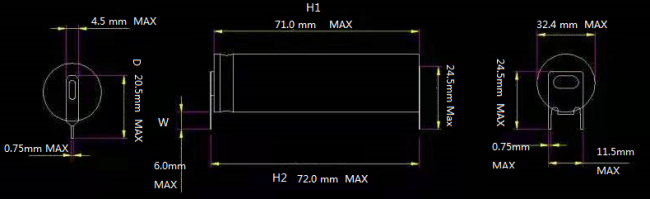

Battery Pack Engineer Drawing
| NO | Items | Units: mm |
| 1 | diameter | 32.4mm (Max) |
| 2 | Height | 71.0 mm (Max) |
| 3 | Height | 72.0 mm (Max) |
| 4 | Width / W | 6.0 mm( Max) |
| 5 | 1-pin for the (+) terminal | 20*4.0 mm |
| 6 | 2-pins for the (-) terminal | 24*11 mm |
| 7 | W | 5.5+/-0.5mm |

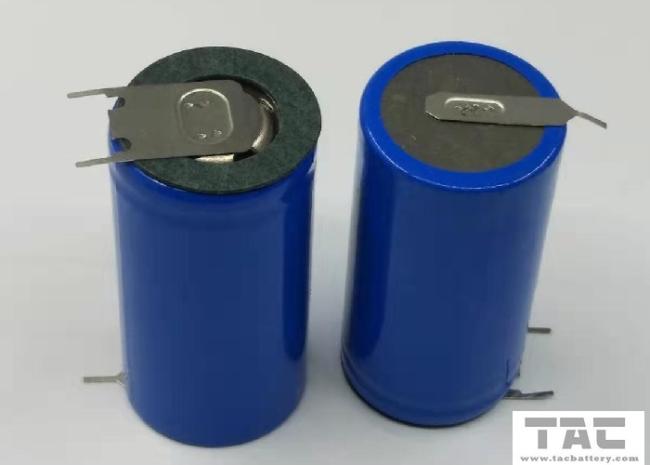

Battery Picture

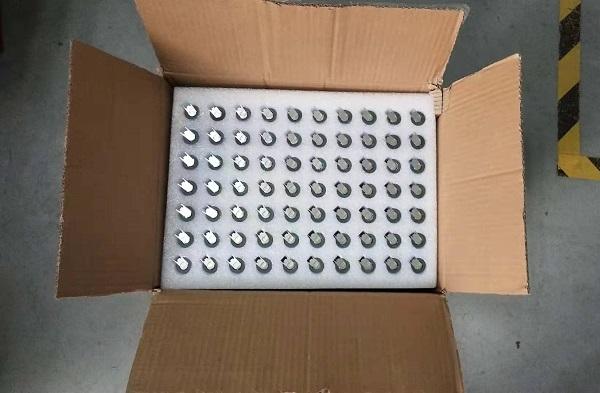

Packing Detail

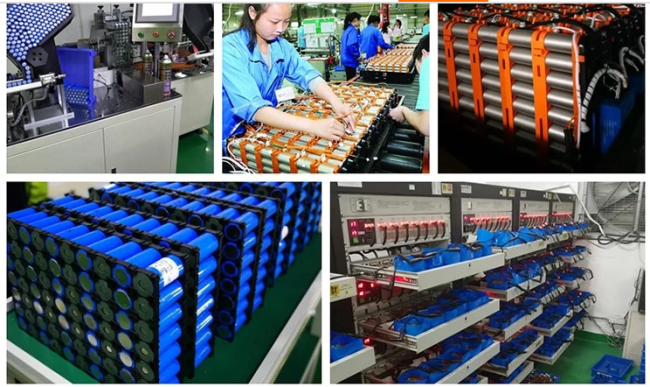

About Tac battery
