26650 24V LiFePO4 Battery

Price Negotiable
Price: USD 100-500
MOQ: 50 PCS
Delivery Time: 7-25 days after order confirm
Brand: TAC OEM ODM
Product Description

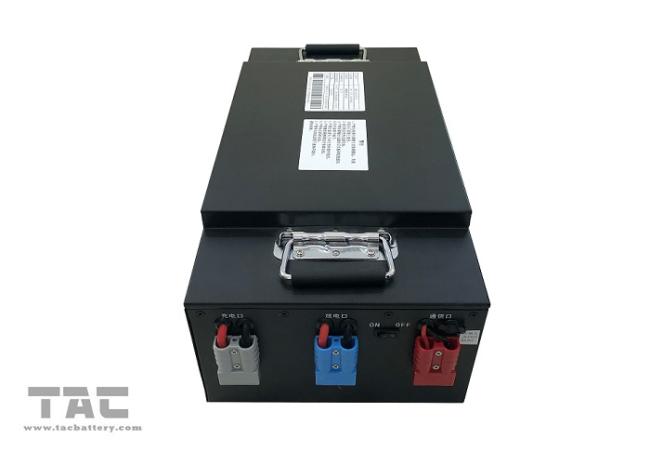

AGV or Robot LiFePO4 Battery 26650 24V 100AH Deep Circle 3000 Times



Features for AGV or Robot LiFePO4 Battery 26650 24V 100AH Deep Circle 3000 Times

1.3000 times Long life cycle, large capacity and good shock resistance,
2.100% new cell with Low self-discharge and good discharge performance at low temperature
3.Max 0.5C Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. Wide range and High temperature performance
8. Environmental friendly passled Reach
9. Lighter weight smaller size than normal lithium ion battery
10.Most safe no explosion no fire meet UN38.3





Specification for AGV or Robot LiFePO4 Battery 26650 24V 100AH Deep Circle 3000 Times

No.
Item
General Parameter
Remark
1.1
Description
LiFepo4 battery 26650 3.2v 3400mah
8S30P Assembly
1.2
Cell Model
3.2V-3400mAh

1.3
Typical Capacity
100Ah

1.4
Typical Voltage
24V

1.5
End of Charge Voltage
79.2V

1.6
Charge Current
0.2C

1.7
Charging time
5-6 Hours

1.8
End discharge Voltage
20v

1.9
Max continuous charge current
200A

2.0
Maximum Continuous Discharging Current
500A

2.1
Over-discharge Voltage Protection cell
2.5V

2.2
Over-Current Discharge Protection
400A

2.3
Short circuit protection
With BMS
RS485 protocol
2.4
Dimension
357 x 329 x 213mm

2.5
Weight
28.0 kgs

2.6
Operation Temperature Range
Charge 0~45 C, Discharge -20~60 C






Application

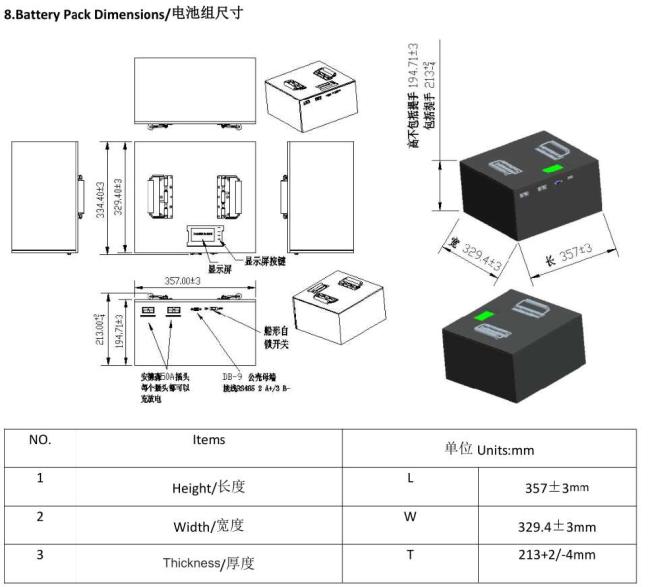

Battery Pack Dimensions
