3.2V LiFePO4 Cell High Power 38120HP 8AH With Stud and Frame For DIY EV Battery
3.2V LiFePO4 Cell High Power 38120HP 8AH With Stud and Frame For DIY EV Battery
The cell is spcially design for DIY EV Battery pack
Specification for 3.2V LiFePO4 Cell High Power 38120HP 8AH With Stud and Frame For DIY EV Battery
|
ITEM
|
SPECIFICATION
|
|
|
Standard Capacity
|
8000mAh (0.5c)
|
|
|
Stand Voltage
|
3.2V
|
|
|
resistance
|
≤5mΩ
|
|
|
Max charging current
|
5C(40A)
|
|
|
Max chargeing voltage
|
3.65±0.05V
|
|
|
Max continue discharge current
|
20C(160A)
|
|
|
Plus discharge current
|
25C(200A)
|
|
|
end voltage
|
2.0V
|
|
|
size
|
D
|
38±1mm
|
|
H
|
122 ±1mm (132±1mm)
|
|
|
Weight
|
约300g
|
|
|
worke temperature
|
charging
|
0~45℃
|
|
discharging
|
-20~60℃
|
|
|
storage temperature
|
within one month
|
-20~45℃
|
|
|
within six month
|
-20~35℃
|

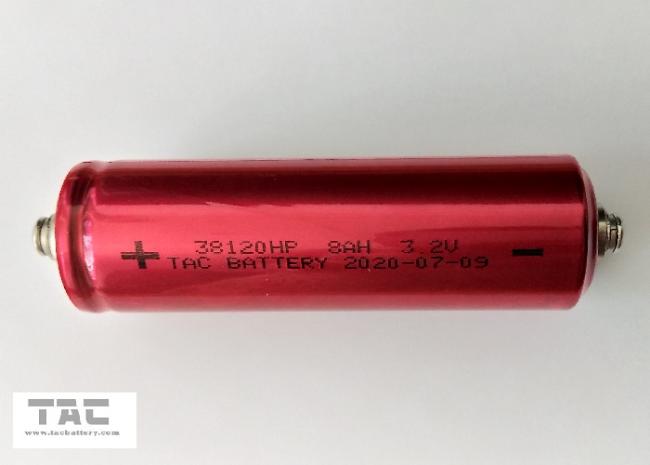

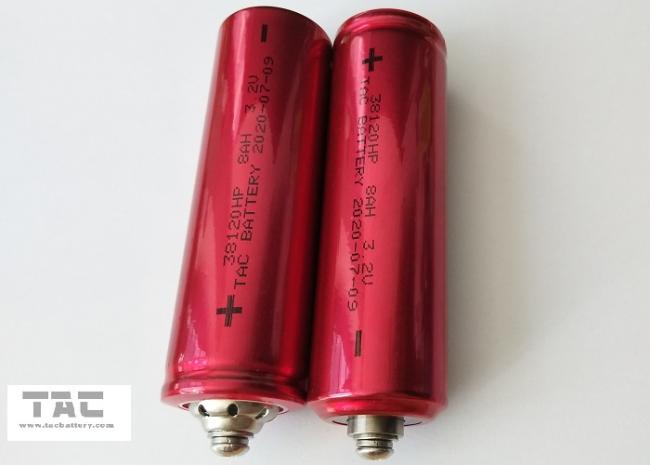

Battery Photos
Application
The buyer can DIY EV Battery with your capacity and voltage requirement

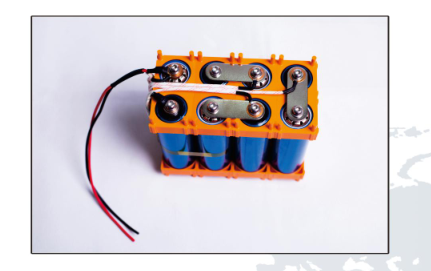

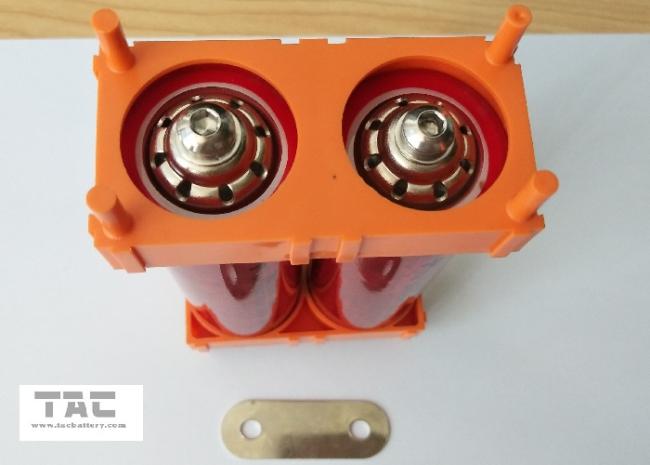

We can support batteries connect tag Plastci frame
the battery application for EV E-Car

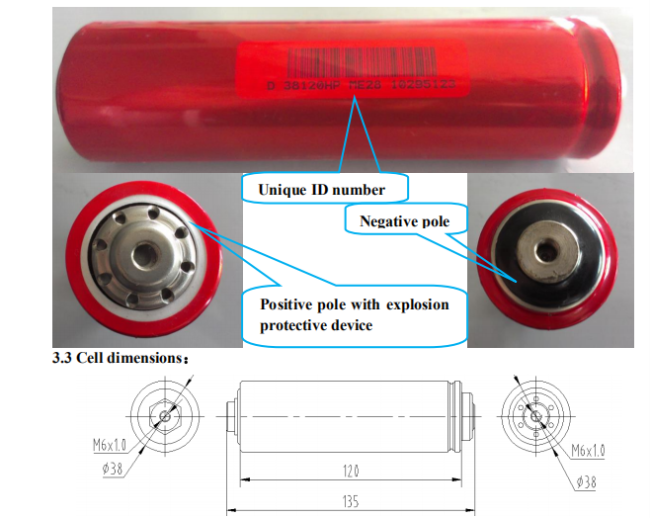

Drawing for Cell

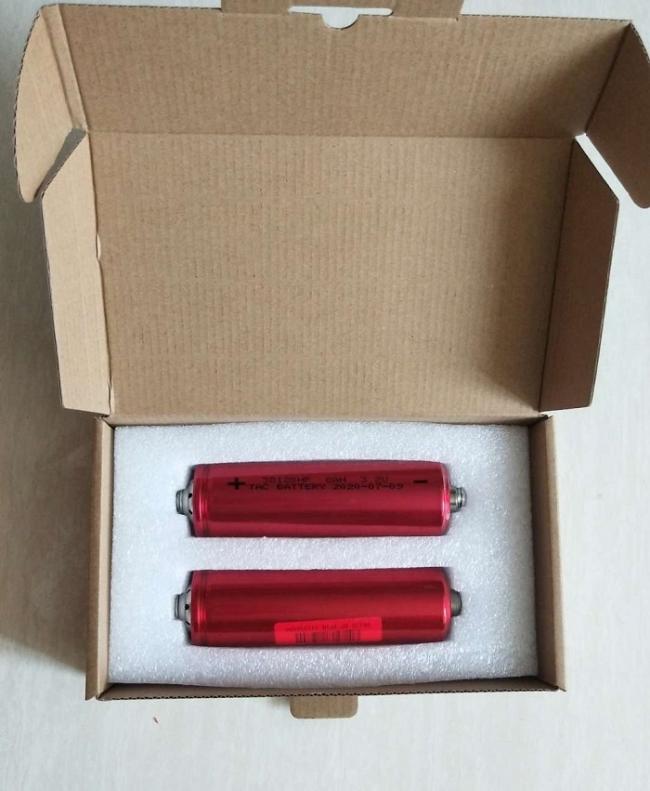

Packing Detail
Double protect
If 38120 can not meet your size requrie, pls check below options for replacement
Waste Disposal Method
It is recommended to discharge the battery to the end,handing in the abandoned batteries to related department unified,dispose of the batteries in accordance with approved local,state,and federal requirements.Consult state environmental protection agency and/or federal EPA.
