Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack
Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack
Feature
1. Shell Size(Unit:mm):350mm×150mm×50mm
2. Input:AC100V--240V～1.4A MAX 47Hz-63Hz
3. Output:DC 29.4V—1.8±0.2A
4. Status of Indicator:Green light — Full of power or no-load state
Red light — Under charging status
5. Charging time:5-6hours
6. Operating temperature:0 ℃ ----+ 40℃
7. Storage temperature:-40℃ -----+55℃
8. Operating Moisture:RH20% ~85%
9. Storage Moistrue:RH10%~95%
Specification For Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
10Ah |
Standard discharge(0.2 C5A) after Standard charge |
|
|
|
Minimum |
9.8Ah |
|
|
2 |
Nominal output Voltage |
26.6V |
|
|
|
3 |
Max. output Voltage |
29.4±0.14V |
|
|
|
4 |
Min. output Voltage |
21±0.14V |
|
|
|
5 |
Cell Discharge Protection Voltage |
2.7V±0.1V |
|
|
|
6 |
Cell Overcharge Protection Voltage |
4.25V±0.05V |
|
|
|
7 |
Charging Voltage |
29.4V |
|
|
|
8 |
Charging Current |
1.8±0.2A |
|
|
|
9 |
Max. Discharge Current |
20A |
|
|
|
10 |
Fuse |
30A |
|
|
|
11 |
Operating Temperature |
Discharge Operating: -20℃～45℃, Charge Operating: 0℃～40℃ |
|
|
|
12 |
Weight
|
2.99±0.2 Kg |
|
|
Application
The lithium -ion battery pack design for the E-bike, suitable Back Seat type
Outer Packing
The battery pack cozy up to the thicken sponge one by one , and then put into the export stronge outer carton, 1 pack for each carton
Delivery date:
15 days for normal current model
25-35 days for OEM model
Storing the Batteries
The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, suggested you should carry on additional charge to the battery.
Pictures:

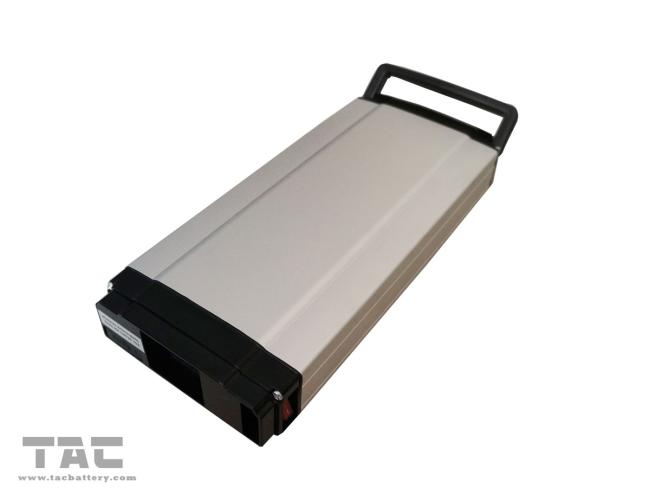

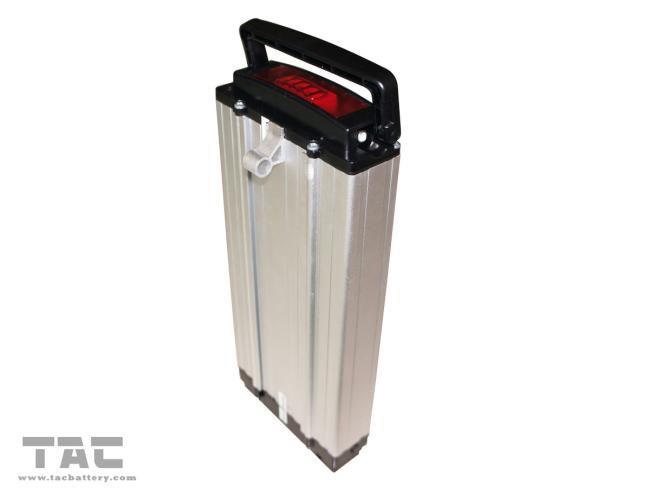

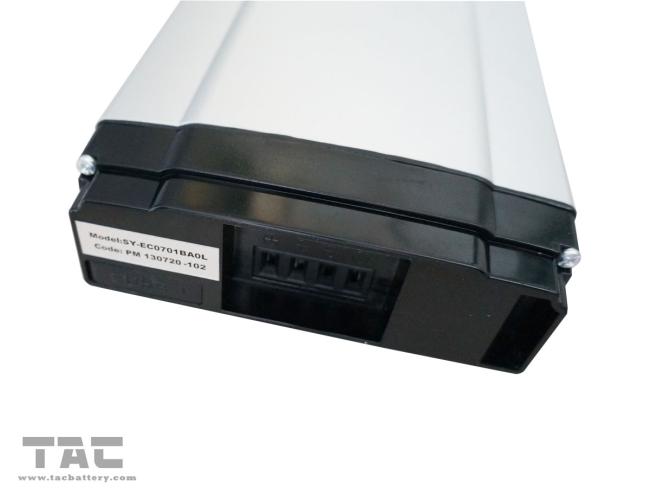

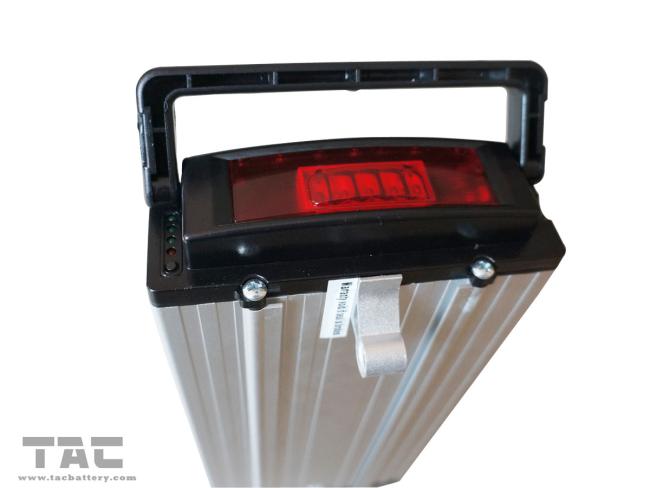

Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack
