3.0V CR123A 1300mAh Primary Lithium Li-MnO2 Battery High Energy Density
3.0V CR123A 1300mAh Primary Lithium Li-MnO2 Battery High Energy Density

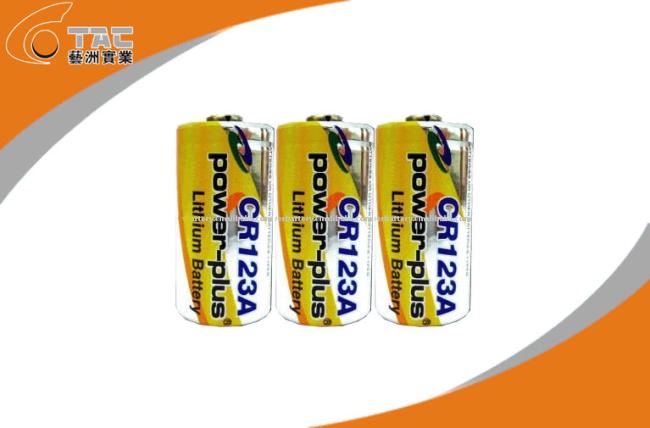

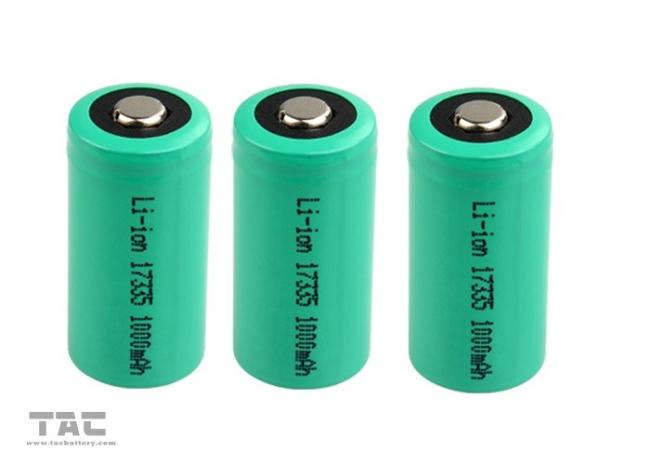

Battery Photos
Application
1. Utility meter (water, electricity, gas meter, AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
Specification for 3.0V CR123A 1300mAh Li/MnO2 Primary Lithium Battery
|
No. |
Items |
Specification |
|
1 |
Nominal Voltage |
3.0 V |
|
2 |
Rated Capacity |
1300 mAh with 100 ohm load |
|
3 |
Minimal capacity |
1300 mAh with 100 ohm load |
|
4 |
Max. Discharge Current |
1500 mA continuous |
|
|
|
3000 mA pulse |
|
5 |
Discharge Cut-off Voltage |
2.0 V |
|
6 |
Weight |
Approx. 16 g |
|
7 8 |
Dimensions |
Diameter: 16.7±0.3 mm |
|
|
|
Height: 34.2±0.3 mm |
|
|
Operating Temp. |
-40 °C to 60 °C |
|
9 |
Storage Temp. less than 1 year |
-10 °C to 40 °C |
|
10 |
Storage Temp. less than 3 months |
-40 °C to 60 °C |
|
11 |
Note:Polyswitch(PTC:144)is inside the cell. |
|

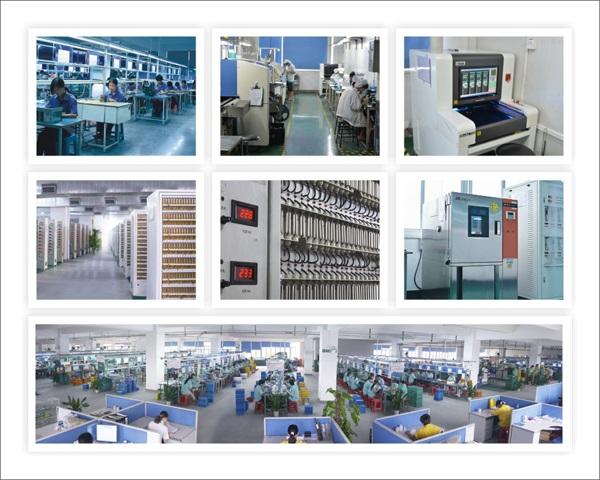

Production Line
