Stable operating voltage and current 3.0V CRV3 3000mAh Li-Mn Battery for Utility meter

Price Negotiable

Price: USD 5-6

MOQ: 3200PCS

Delivery Time: 7-10 days after order confirm

Brand: TAC

Product Description

Stable operating voltage and current 3.0V CRV3 3000mAh Li-Mn Battery for Utility meter

Features:

Characteristics lithium battery CR-V3

1) Long working life up to 5-8 years

2) Max discharge at 3.0A

3) Designed with unique technology, the battery delivers a quicker recovery time between flashes, so it eables you to snap more photos in a short span of time.

4) Wide operating temperatures: -40~60 centigrades

Main Applications:

1. Utility meter (water, electricity, gas meter, AMR)

2. Alarm or security equipment (smoke alarm system, detector)

3. GPS tracking

4. Teal time clock

5. Digital control machine

6. Military

7. Remote monitoring systems

8. Car electronics

9. Camera

Quick Detail:

Place of Origin:	Guangdong China (Mainland)
Brand Name:	TAC
Model Name:	3.0V CRV3 3000mAh Li/MnO2 Primary Lithium Battery
Other Name:
Nominal Voltage	3.0V
Nominal Capacity:	3000mAh
Size:	28.5(L)14.8(W)52.5(H)mm
Weight:	37g

Packing & Delivery:

MOQ:

1000pcs

Packing:

Bulk Packing:

50 PCs/box, 20box/Carton, total 1000pcs/Carton,

carton Size 360*185*220mm

Delivery Detail:

Sample with stock 3 days after T/T

Mass order with stock 7 days after T/T

Without stock 45days

Specification:

No.	Items		Specification
1	Nominal Voltage		3.0 V
2	Capacity (Discharge Current 1mA to 2.0V)	Nominal	3000 mAh
		Minimum	2900 mAh
3	Max. Discharge Current	Continuous	1000 mA
		Pulse	3000 mA
4	Discharge Cut-off Voltage		2.0 V
5	Weight		Approx. 37 g
6	Operating Temperature		-40 ℃ to 60 ℃
7	Storage Temperature		-10 ℃ to 40 ℃
8	Relative humidity		65±20%
9	Period of Validity		5 years

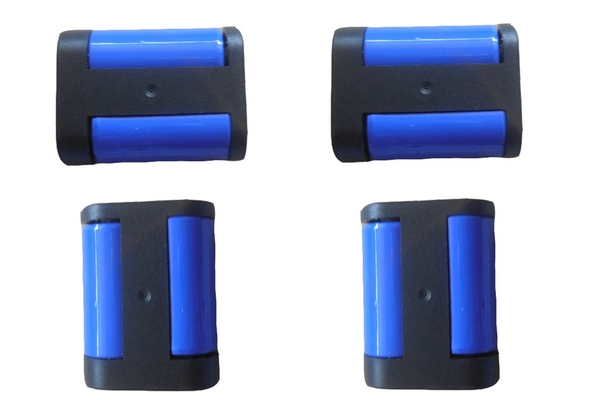

Battery Photos

The other digital battery types available:

CR2, CR123A, CR-P2, 2CR5, CR-V3

Model	Nominal Voltage (V)	Nominal Capacity (mAh)	Standard Discharge current(mA)	End Voltage (V)	Max. Diameter (mm)	Max. Height (mm)	Reference Weight (g)	TestTemperature (°C)
CR14250	3v	650.0	10	2	14.5	25.0	10	23±3
CR14335	3v	800.0	10	2	14.5	33.5		23±3
CR14505	3v	1400.0	10	2	14.5	50.5	17	23±3
CR17335	3v	1300.0	10	2	17.0	33.5	16	23±3
CR17450	3v	2000.0	10	2	17.0	45.0	25	23±3
CR17505	3v	2300.0	10	2	17.0	50.5	28	23±3
CR17345 (CR123A)	3v	1400.0	10	2	17.0	34.5	16	23±3
CR11108 (CR1/3N)	3v	160.0	1	2	11.6	10.8	3.3	23±3
CR15H270 (CR2)	3v	850.0	10	2	15.6	27.0	11	23±3
CR-P2	6v	1400.0	10	4	34.8X35.8X19.5		34	23±3
2CR5	6v	1400.0	10	4	34X45X17		34	23±3
CR-V3	6v	3000.0	20	2	29X14.5X52		34	23±3
