1200mAh 9V LiSOCl2 Battery Small Energy for Intelligent Water Meter
1200mAh 9V LiSOCl2 Battery Small Energy for Intelligent Water Meter
Description for 1200mAh 9V LiSOCl2 Battery Small Energy for Intelligent Water Meter
1. High energy density: the battery can reach 420WH/KG and 800WH/dm3
2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load, the end voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the capacity output is still more than 90%.
4. Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than 10years under room temperature.
Application:
Intelligent water meter, Ammeter, Gas Meter
Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.
Specification:
|
No |
Item |
Data |
|
1 |
Nominal voltage: |
10.8V |
|
2 |
Nominal capacity: |
1200mAh(1mA / 6.0V) |
|
3 |
Discharge end-voltage: |
6.0V |
|
4 |
Operating voltage : |
9.6V(1.1Ω, in 5s) |
|
5 |
Max constant discharge current: |
50mA |
|
6 |
Max. pulse current: |
100mA |
|
7 |
Ambient temperature range: |
-55~ +85℃ |
|
8 |
Storage life: |
≥10 year, Yearly self-discharge ≤ 1% |

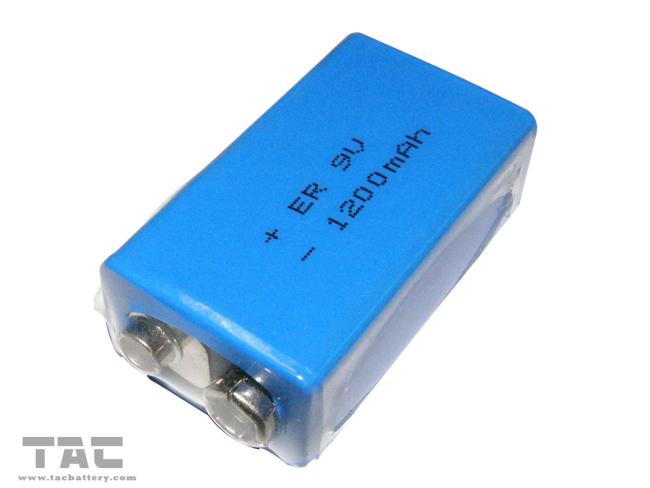

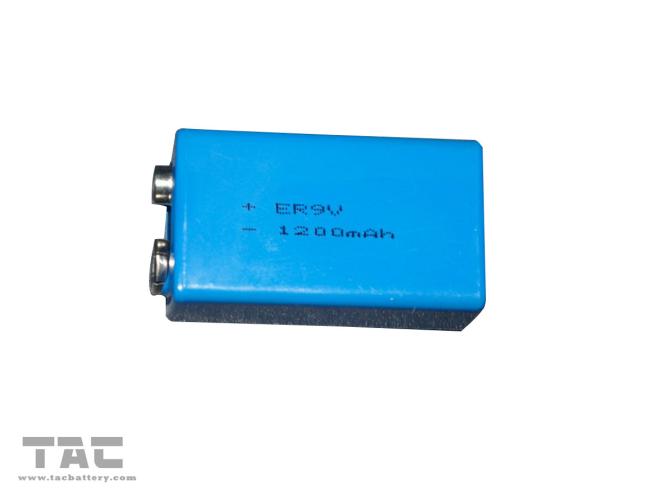

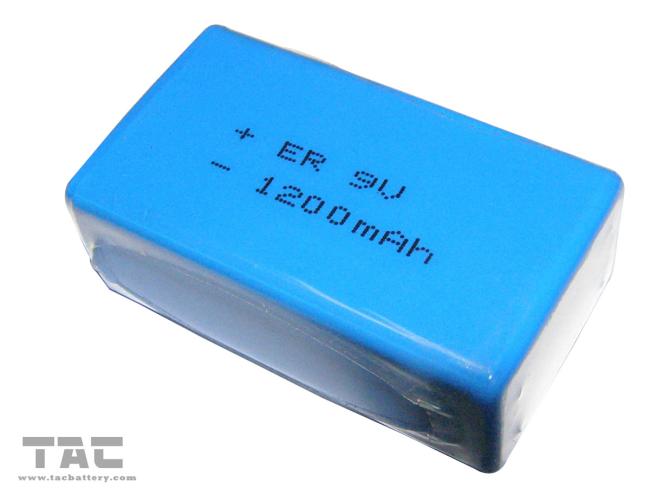

Pictures for 1200mAh 9V LiSOCl2 Battery Small Energy for Intelligent Water Meter
ER9V 1200mAh LiSOCl2 Battery of Energy Type for Intelligent Water Meter
| Price Term | FOB,EXW,CIF,C&F etc... |
| Payment term | 100% Prepaid before shipment |
| Delivery time | 20-25 working days after receiving deposite and all the design. |
| Sample lead time | 7-10 working days |
| MOQ | no MOQ |
| Shipping | By express,by air or by sea |
| Packaging | Inner box+carton box,or as customzied requirement |
LiSOCl2 Battery Production Line
TAC BATTERY INDUSTRY BASE
