ER12AA LiSOCl2 Battery of 3.6V with High Energy Density for Intelligent water meter

ER12AA  LiSOCl2 Battery of 3.6V with High Energy Density for Intelligent Water Meter

Description for ER12AA LiSOCl2 Battery of 3.6V with High Energy Density for Intelligent Water Meter

1.  The model name is 14250,he rated voltage is 3.6V and the normal capacity is 1200mAh

2.  High energy density: the battery can reach 420WH/KG and 800WH/dm3

3. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load,

    the end voltage is 2.0V or 2.5V.

4.  Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged,

    the capacity output is still more than 90%.

5.  Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃

6.  Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than

    10years under room temperature.

Application:

*Intelligent water meter, Ammeter, Gas Meter

*Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources

*Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone

*Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.

Packing Method:

100PCS/layer, 2000Pcs/Carton, Weight: 21KG Size: 44*27*33cm

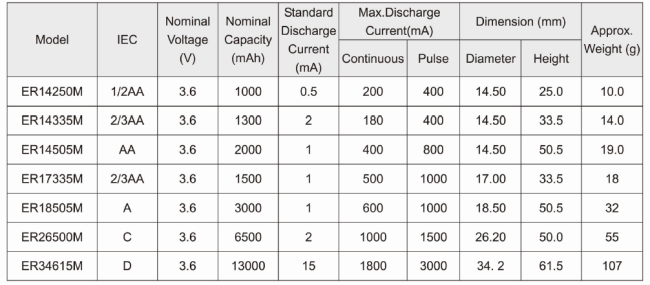

Specification:

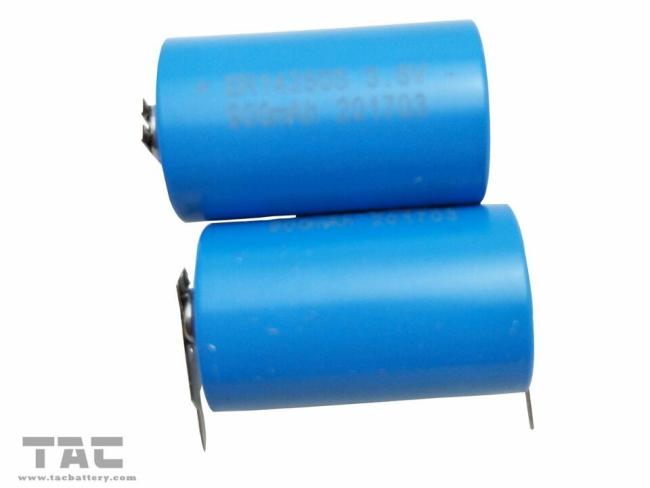

Pictures:

ER12AA  LiSOCl2 Battery of 3.6V with High Energy Density for Intelligent water meter

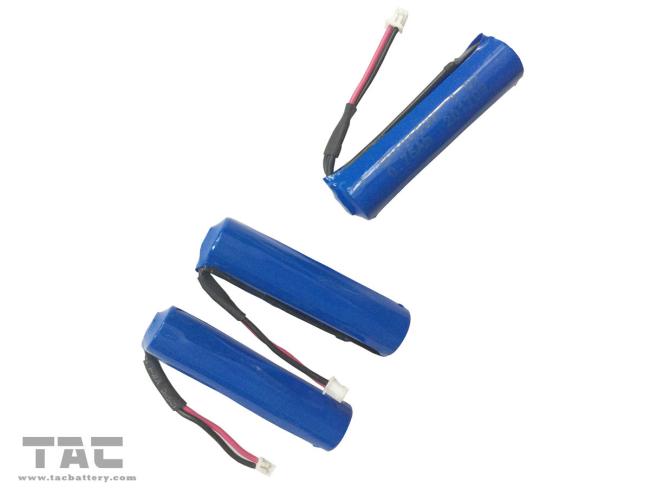

Battery Pack:

ER12AA  LiSOCl2 Battery of 3.6V with High Energy Density for Intelligent water meter
