3.6V LiSOCl2 Battery Low self-discharge , High Temperature Type
3.6V LiSOCl2 Battery Low self-discharge , High Temperature Type
Description:
1 . 3.6V rated voltage; operating voltage is 3.3V to 3.4V in normal temperature and 3.5V 3.6V in high temperature.
Because the electrochemical reaction of positive poles is hetero generous reaction, the discharging curve is
reasonably stable until the capacity is almost exhausted when the curve changes a lot.
2. Wide operating temperature range: as wide as -20~ +150℃.
3. Long self-life: due to its full-sealing structure, it can be stored for more than 10 year.
Application:
1. Petroleum Industry: Down hole high temperate EPG, flow meters, LWD/MWD, and other battery powered down
hole high temperature instruments ( processing and battery packs can be done as required)
2. Automobile industry: TPMS, Diesel engine cylinder monitor and so on.
3. Geothermic industry: High temperature inspection instruments
4. Military uses and other battery-powered devices used in high temperature.
Packing Method:
100PCS/layer, 2000Pcs/Carton, Weight: 21KG Size: 44*27*33cm
Specification:
|
No |
Item |
Data |
|
1 |
Nominal voltage: |
3.6V |
|
2 |
Nominal capacity: |
800mAh(0.3mA / 2.0V) |
|
3 |
Discharge end-voltage: |
2.0V |
|
4 |
Operating voltage : |
3.3V(330Ω, in 5s) |
|
5 |
Max constant discharge current: |
10mA |
|
6 |
Max. pulse current: |
50mA |
|
7 |
Ambient temperature range: |
-20~ +150℃ |
|
8 |
Storage life: |
≥10 year, Yearly self-discharge ≤ 1% |
Pictures:

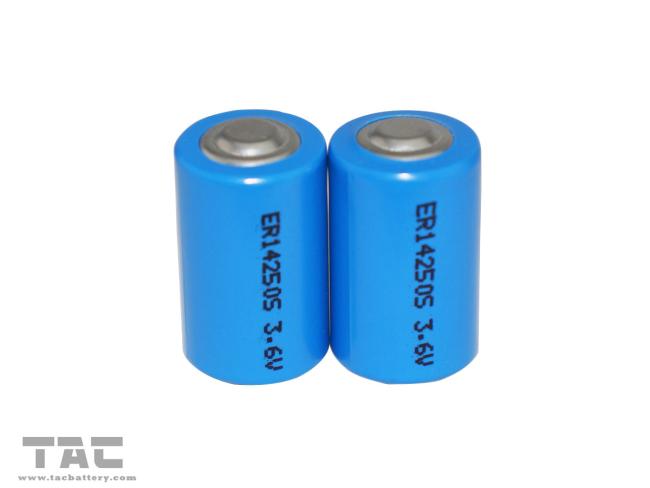

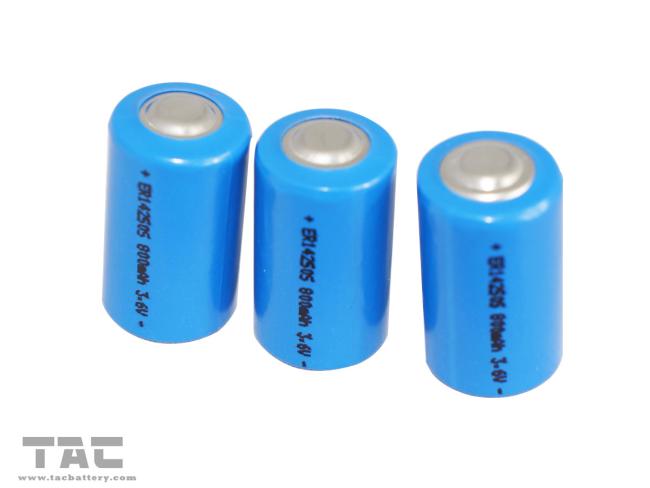

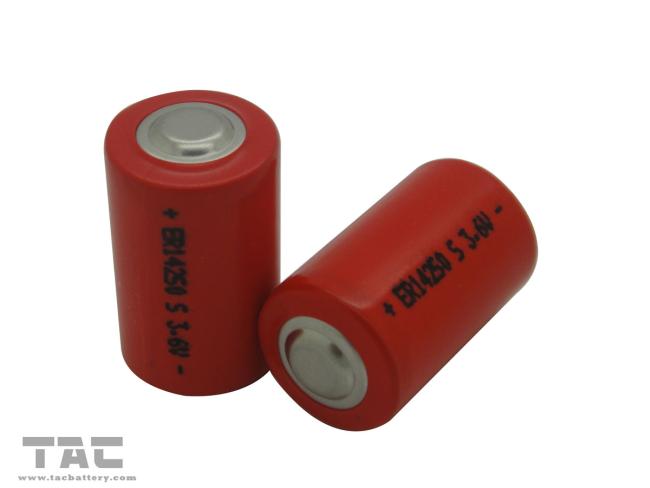

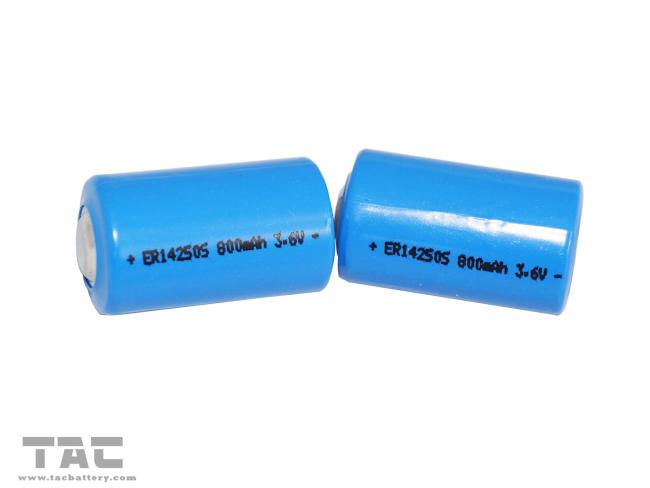

Low self-discharge 3.6V LiSOCl2 Battery of High Temperature Type
