3.6V AA ER14505 14500 LiSOCl2 Battery with high Capacity for Ammeter, Gas Meter
3.6V AA ER14505/14500 LiSOCl2 Battery with high Capacity for Ammeter, Gas Meter
Description:
1. High energy density can reach 2400mAh
2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load,
the end voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged,
the capacity output is still more than 90%.
4. Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than
10years under room temperature.
Application:
*Intelligent water meter, Ammeter, Gas Meter
*Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
*Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
*Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.
Packing Method:
100PCS/layer, 1000Pcs/Carton, Weight: 20KG Size: 44*27*33cm

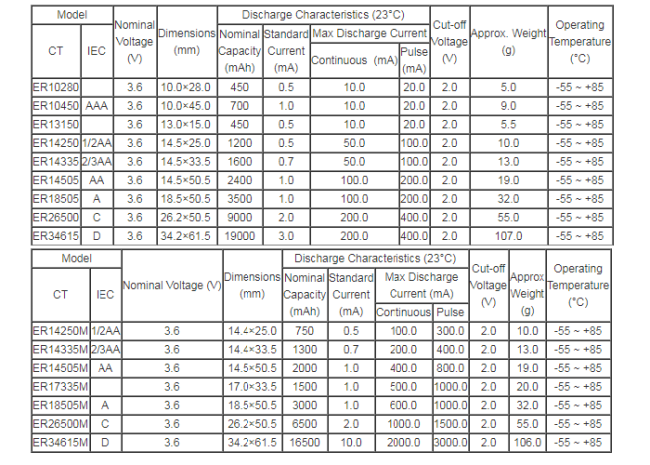

Specification:
|
No |
Item |
Data |
|
1 |
Nominal voltage: |
3.6V |
|
2 |
Nominal capacity: |
2400mAh(1.0mA / 2.0V) |
|
3 |
Discharge end-voltage: |
2.0V |
|
4 |
Operating voltage : |
3.4V(330Ω, in 5s) |
|
5 |
Max constant discharge current: |
100mA |
|
6 |
Max. pulse current: |
200mA |
|
7 |
Ambient temperature range: |
-55~ +85℃ |
|
8 |
Storage life: |
≥10 year, Yearly self-discharge ≤ 1% |

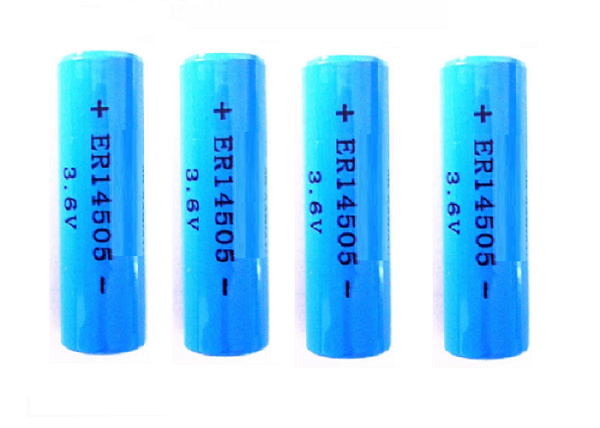

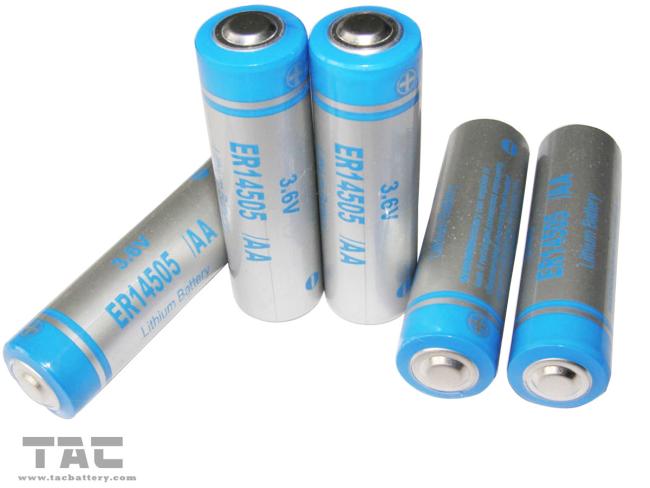

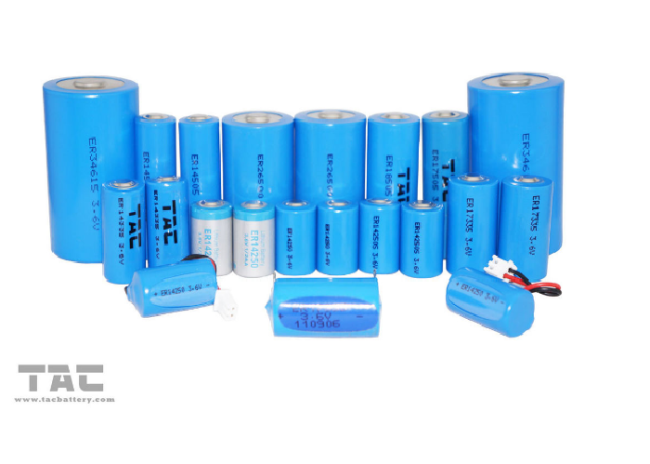

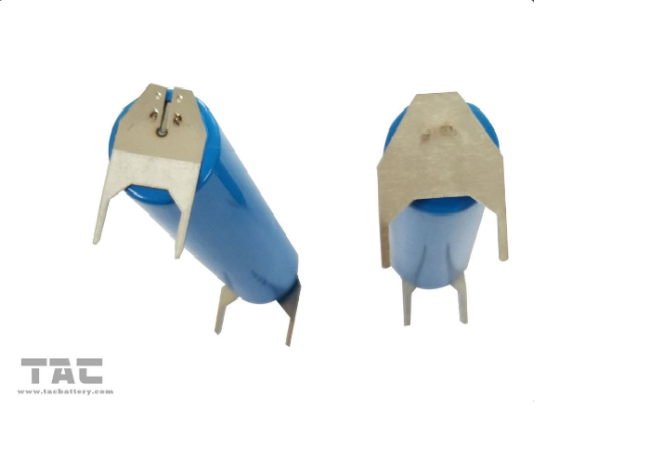

Pictures:
3.6V AA ER14505/14500 LiSOCl2 Battery with high Capacity for Ammeter, Gas Meter
