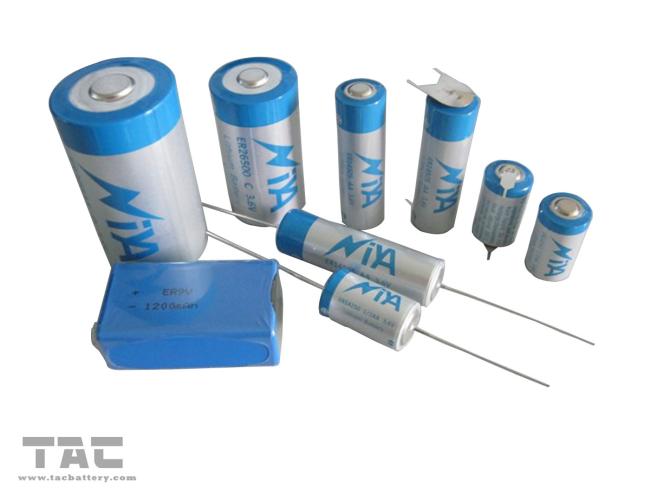

Low Self-discharge LiSOCl2 Battery 3.6V for Communication Equipment

Description:

1. The rated voltage is 3.6V, there are various size including of

    ER14250,ER14335,ER14505/ER14500,ER17335,ER18505,ER26500,ER34615

2. Able to instantaneously provide multiplied pulse or heavy current pulse.

3. Wide load range, wide temperature range of -55℃ to 85℃. Low internal resistance and stable discharge voltage.

4. Able to provide a continuous discharge of small current and heavy current pulse is also available, discharge time is 5 years or more; Excellent discharge performance, more than 90% capacity output under low or medium load.



Application:

1.      Civil water meter, Gas meter, Kilowatt-hour meter,
2.      Smoke alarm, Bu-regular proof alarm, Intelligent instruments,
3.      Life-guard device, Signal lamp, Professional radio electric tools.
4.      Military electronic devices, Communication equipment,
5.      Portable transmitter-receiver,   Night-vision instruments,
6.      Collimator, GPS system for navigation, Underwater weapon,
7.      Sonobuoy missile

Packing Method:

The batteries were fixed by thickness sponge tray avoid short circle and shake

70PCS/layer, 1000Pcs/Carton, weight:20KG Size:44*27*33cm

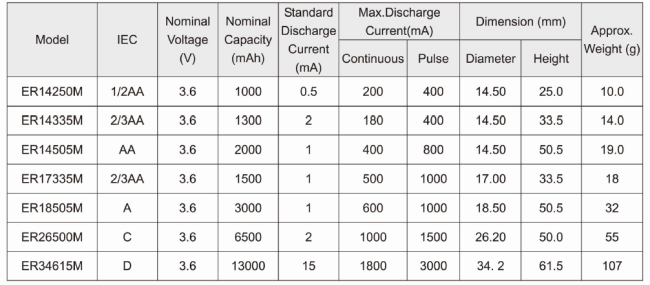

Specification for typical model

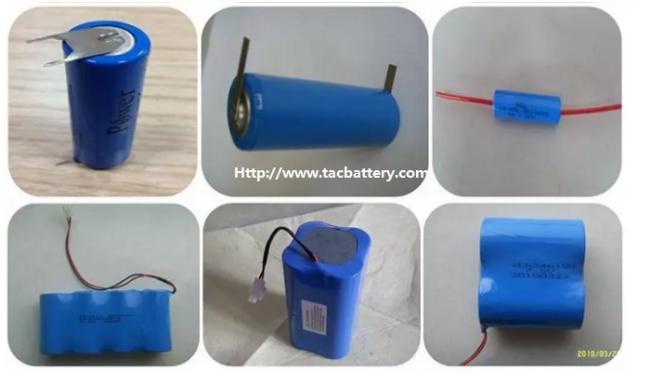

Pictures for Various assemble

The batteries can be add tag ,  metal axis , wire and connector with customer's require

Low Self-discharge  LiSOCl2 Battery 3.6V ER26500M  for Communication Equipment

Specially temperature peformance

There is specially high temperature battery can meet -40℃~ +150℃

For example the model ER14250S , The specification as below

1) Nominal voltage: 3.6V

2) Nominal capacity: 600mAh(10mA / 2.0V)

3)Discharge end-voltage: 2.0V

4) Operating voltage: 3.3V(660Ω, in 15s)

5) Max constant discharge current: 10mA

6)Max. pulse current: 50mA

7) Ambient temperature range: -40℃~ +150℃

8) Storage life: ≥10 year, Yearly self-discharge ≤ 1%

Product List For ER Battery With High Rate Performance
