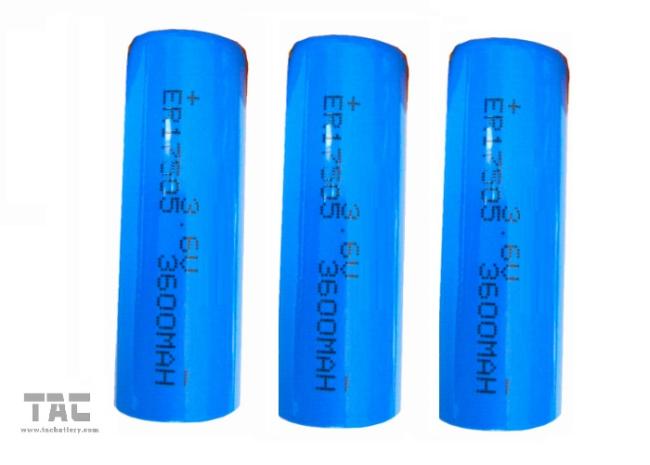

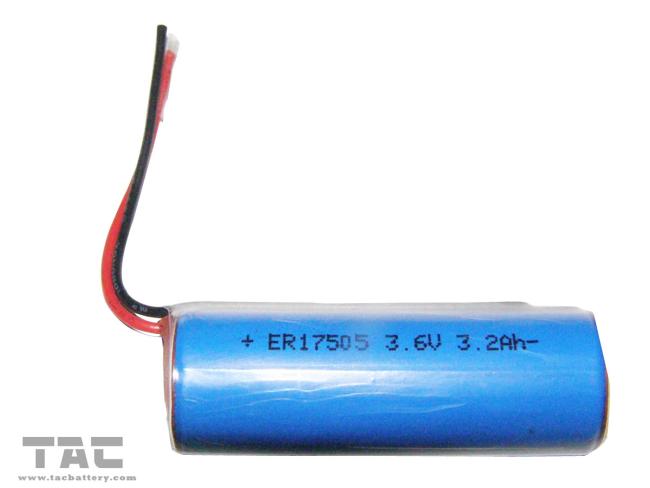

High energy density 3.6V LiSOCl2 Battery  ER17505 with Excellent Storage Life

Description:

1. The model name is ER17505 and the international stander model name is A

2. The voltage is 3.6V and the rated capacity is 3200mAh

3.  High energy density: the battery can reach 420WH/KG and 800WH/dm3

4. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load,

    the end voltage is 2.0V or 2.5V.

5.  Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged,

    the capacity output is still more than 90%.

6 . Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃

7.  Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than

    10years under room temperature.


Application:

1. Intelligent water meter, Ammeter, Gas Meter
2. Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
3. Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
4. Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.

Packing Method:

70PCS/layer, 700Pcs/Carton, Weight: 20KG Size:44*27*33cm

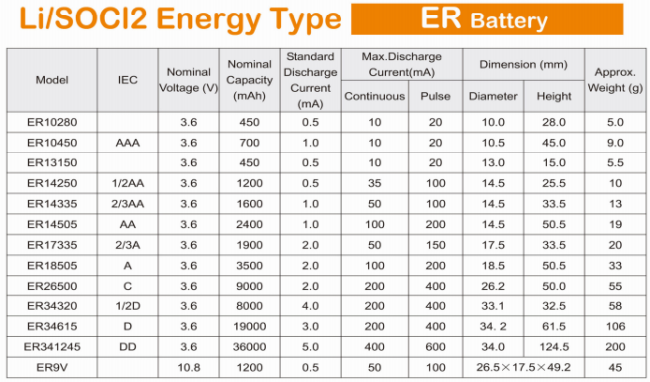

Specification:

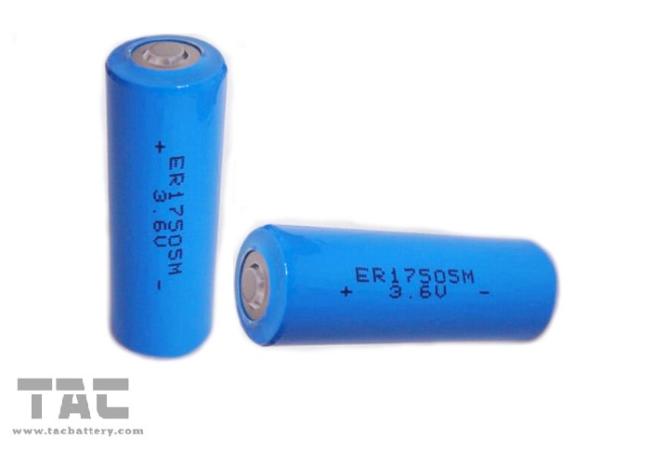

Pictures:

High energy density 3.6V LiSOCl2 Battery  ER17505 with Excellent Storage Life

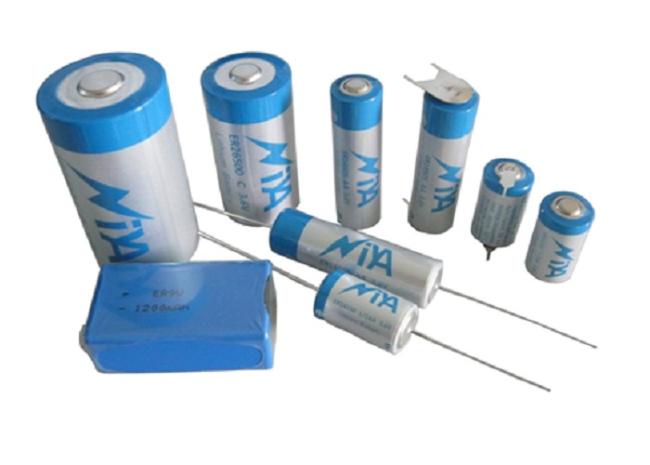

Tac Support all size for lisocl2
