Primary lithium LiSOCl2 Battery ER26500M 3.6V with Long Self-Life for flow meters
Primary lithium LiSOCl2 Battery ER26500M 3.6V with Long Self-Life for flow meters
Description:
1. The model name: ER26500M
2. The voltage is 3.6V the capacity is 6500mAh
3. We can solder the wire on the pole if you like
4.With low self discharge current
Application:
1. Petroleum Industry: Down hole high temperate EPG, flow meters, LWD/MWD, and other battery powered down
hole high temperature instruments ( processing and battery packs can be done as required)
2. Automobile industry: TPMS, Diesel engine cylinder monitor and so on.
3. Geothermic industry: High temperature inspection instruments
4. Military uses and other battery-powered devices used in high temperature
Packing Method:
40PCS/layer, 400Pcs/Carton, weight:23KG Size:44*27*33cm
Specification:
|
No |
Item |
Data |
|
1 |
Nominal voltage: |
3.6V |
|
2 |
Nominal capacity: |
6500mAh(4mA / 2.0V) |
|
3 |
Discharge end-voltage: |
2.0V |
|
4 |
Operating voltage : |
3.3V(330Ω, in 5s) |
|
5 |
Max constant discharge current: |
170mA |
|
6 |
Max. pulse current: |
400mA |
|
7 |
Ambient temperature range: |
-20~ +150℃ |
|
8 |
Storage life: |
≥10 year, Yearly self-discharge ≤ 1% |

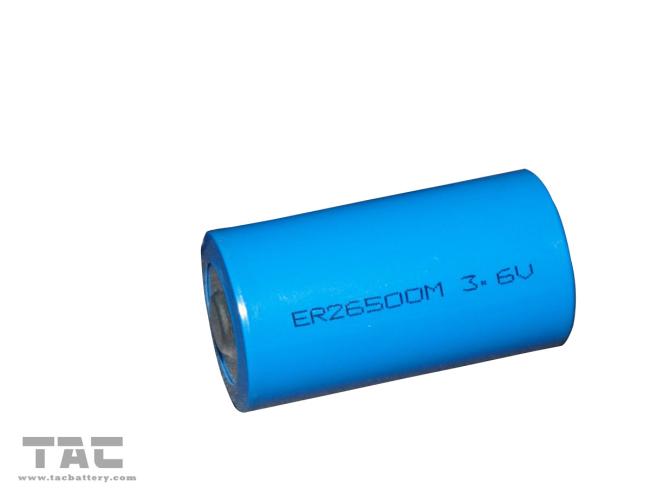

Pictures:
Primary lithium LiSOCl2 Battery ER26500M 3.6V with Long Self-Life for flow meters

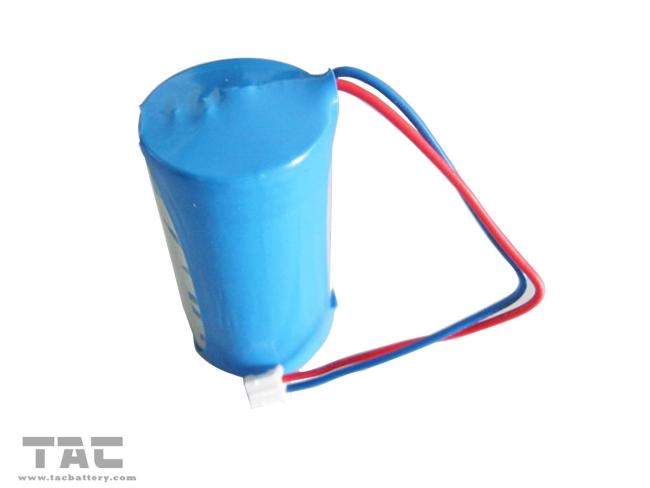

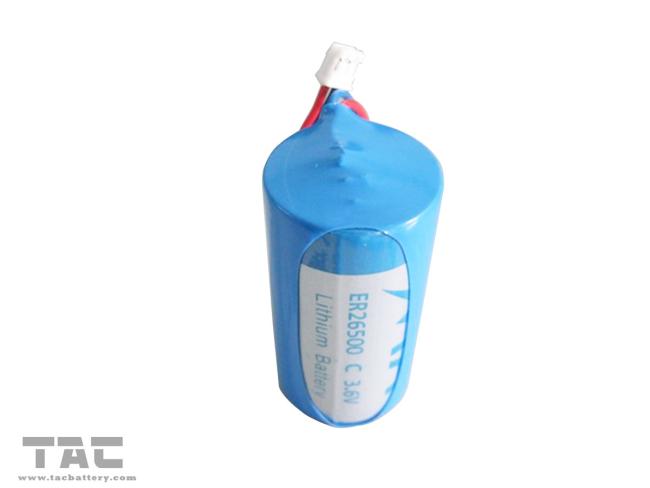

Battery Pack:
Primary lithium LiSOCl2 Battery ER26500M 3.6V with Long Self-Life for flow meters
We can solder the wire on the pole if you like
