3.2V LiFePO4 Battery 26650 Cylindrical 3300mAh Energy Type for E-bike Battery Pack
3.2V LiFePO4 Battery 26650 Cylindrical 3300mAh Energy Type for E-bike Battery Pack
Features for Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike Battery Pack
1. Diverse capacity for IFR26650 3000mAh/3200mAh/3300mAh/3400mAh for your choice
2. The highest capacity 3600mah for Model IFR26650 cell
3. Low self discharge can keep 80% original capacity after stock 12 months
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.
7. It have safety approval for UN38.3
Application For 3.2V LiFePO4 Battery 26650 Cylindrical 3300mAh Energy Type for E-bike Battery Pack
1. ups solar lamp
2. Portable high power devices
3. Stationary battery backup systems
4. Grid stabilization energy storage systems
5. Commercial truck and bus hybrid electric vehicles (HEVs)
Inner instruction
Specification for Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike Battery Pack
| No. | Items | Specifications |
| 1 | Charge cut-off voltage | 3.65V |
| 2 | Nominal voltage | 3.2V |
| 3 | Minimal capacity | 3600mAh @ 0.2C Discharge |
| 4 | Nominal capacity | 3550mAh @ 0.2C Discharge |
| 5 | Charge current | 1C |
| 6 | Standard charging method | 1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C |
| 7 | Charging time | Standard charge: 2.0 hours Ref |
| 8 | Max. charge current | 2C |
| 9 | Max. continue discharge current | 10A (Cell skin temperature cannot exceed 80°C) |
| 10 | Discharge cut-off voltage | 2.0V |
| 11 | Operating temperature |
Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
| 12 | Storage temperature/humidity |
Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage) |
| 13 | Cell Weight | 80.0g±1.0g |
| 14 | Cell Dimension |
Length: 65.0±0.3 mm Width: 26.2±0.2 mm |

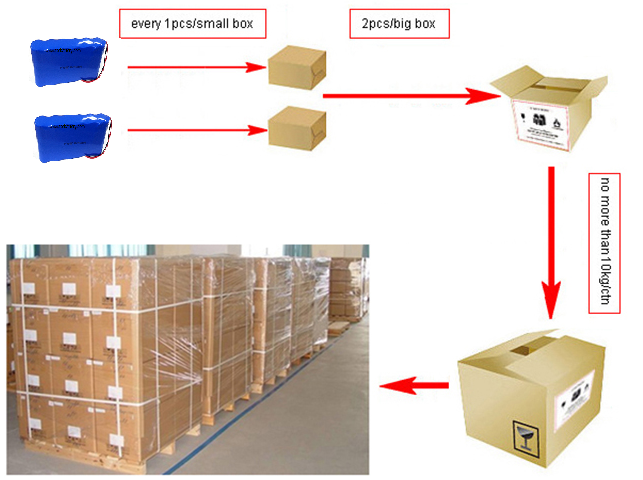

External Packing for Battery cell
put the thin paper board separated the cell one by one to keep the safe
put the anti-tarnish paper on the top and bottom of box .
20pcs for each box , and 6 box for each carton
Pictures:
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3600mAh for E-bike battery pack

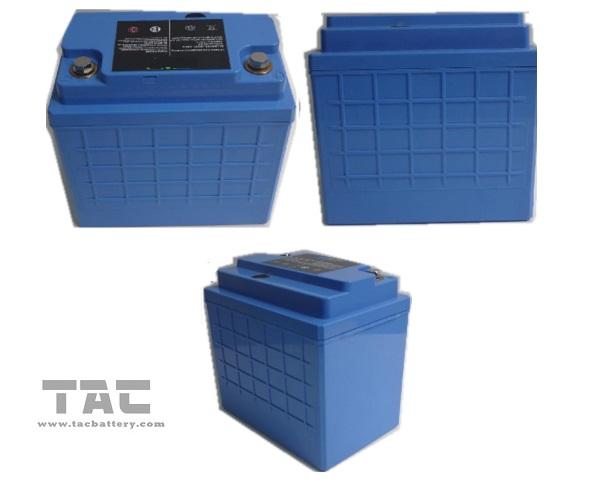

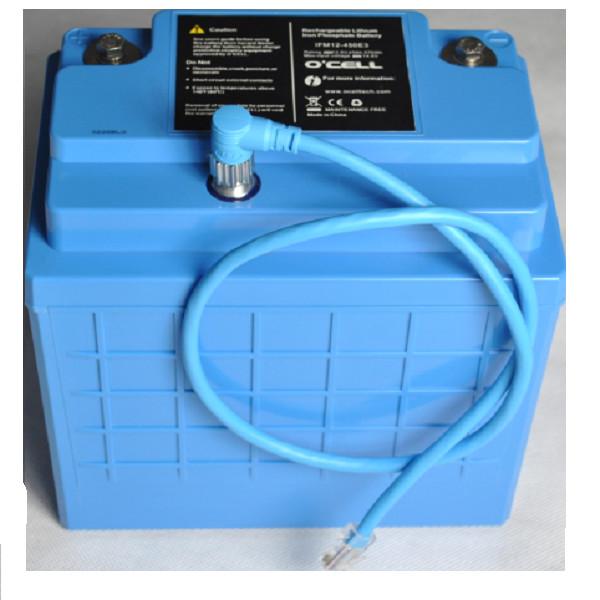

12V 3.6V Lifepo4 battery pack were assebled by bulk 26650 LiFePO4 Battery For Solar Light
The 12v 100ah for Solar Street Lighting
Lifepo4 Battery Pack with 26650 Single Cell
12V 24AH
12V 36AH
12V 48AH
24V 24AH
24V 36AH
24V 48AH
48V 50AH
48V 60AH
