Cylindrical 3.2V LiFePO4 Battery 26650 3200mAh Energy Type for Truck
Price:
negotiable
MOQ:
200PCS
Delivery Time:
7 days for single cell 15-20 days for battery pack
Brand:
TAC OEM ODM
Product Description
Cylindrical 3.2V LiFePO4 Battery 26650 3200mAh Energy Type for Truck
Features for Cylindrical 3.2V LiFePO4 Battery 26650 3200mAh Energy Type for Truck
- Excellent abuse tolerance and environmentally friendly
- Excellent calendar life, 10X cycle life vs. conventional lithium ion
- With greater power and energy density and lower impedance.
- Suitable for a wide variety of applications and system designs.
- Proven performance in the toughest conditions, combining durability, reliability, and safety
- Offers an excellent combination of price-performance.
Application for Cylindrical 3.2V LiFePO4 Battery 26650 3200mAh Energy Type for Truck
- Portable high power devices
- Stationary battery backup systems
- Grid stabilization energy storage systems
- Commercial truck and bus hybrid electric vehicles (HEVs)
BatterySpecification List:
| No. | Items | Specifications | |
| 1 | Charge cut-off voltage | 3.65V | |
| 2 | Nominal voltage | 3.2V | |
| 3 | Minimal capacity | 3200mAh @ 0.2C Discharge | |
| 4 | Nominal capacity | 3200mAh @ 0.2C Discharge | |
| 5 | Charge current | 1C | |
| 6 | Standard charging method | 1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C | |
| 7 | Charging time | Standard charge: 2.0 hours Ref | |
| 8 | Max. charge current | 2C | |
| 9 | Max. continue discharge current | 10A (Cell skin temperature cannot exceed 80°C) | |
| 10 | Discharge cut-off voltage | 2.0V | |
| 11 | Operating temperature |
Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
|
| 12 | Storage temperature/humidity |
Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage) |
|
| 13 | Cell Weight | 80.0g±1.0g | . |
| 14 | Cell Dimension |
Length: 65.0±0.3 mm Width: 26.2±0.2 mm |

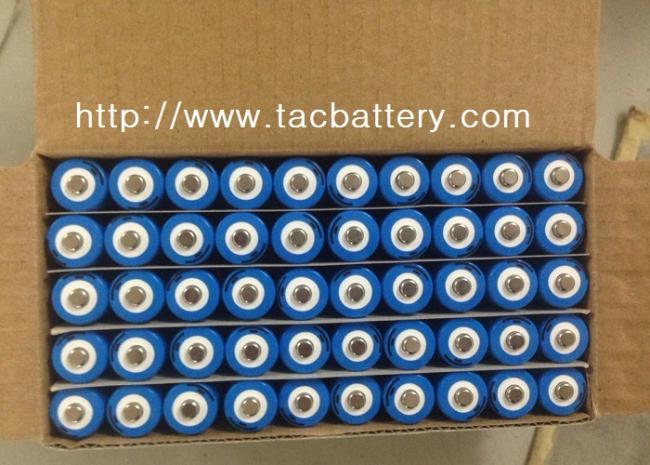

The Bulk Packing Pictures
20PCS in one inner box , and 8 pcs in one carton as similar as below

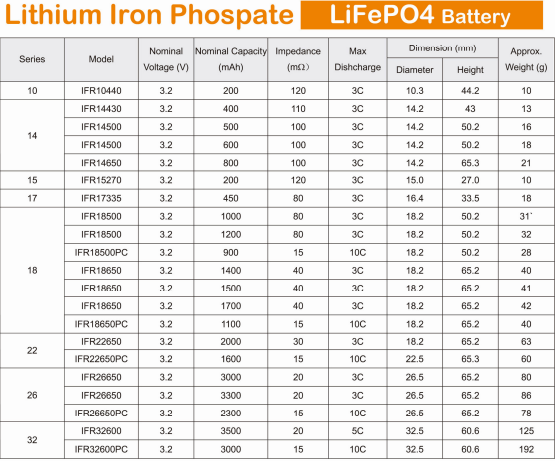

The Other Capacity for IFR26650
There are various capacity for IFR26650 , The standard model including of IFR26650 3000MAH
IFR26650 3300MAH IFR26650 2300MAH and more
Battery Photos

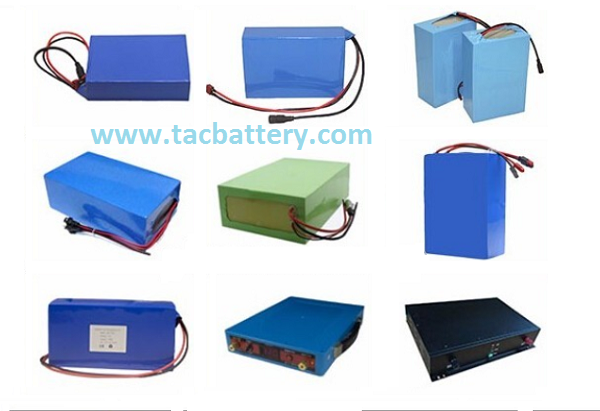

The Lifepo4 battery Pack Made By 26650 Cell
Delivery Date
7-15 Days for standard model
25-30 days for OEM order
