Cylindrical 3.2V LiFePO4 Battery LFR18500P 900mAh Power Type for High Power Devices
Cylindrical 3.2V LiFePO4 Battery LFR18500P 900mAh Power Type for High Power Devices
Features For Cylindrical 3.2V LiFePO4 Battery LFR18500P 900mAh Power Type for High Power Devices
- Excellent abuse tolerance and environmentally friendly with Rohs Certification
- Excellent calendar life circle life over 2000times
Application for Cylindrical 3.2V LiFePO4 Battery LFR18500P 900mAh Power Type for High Power Devices
- Portable high power devices
- Stationary battery backup systems
- Grid stabilization energy storage system
- Commercial truck and bus hybrid electric vehicles (HEVs)
BatterySpecification List:
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
900mAh |
0.2C Standard discharge
|
|
| 2 |
Minimum Capacity
|
880mAh | ||
| 3 |
Nominal Voltage
|
3.2V |
Mean Operation Voltage
|
|
| 4 |
Delivery voltage
|
3.2~3.3V |
Within 10 days from Factory
|
|
| 5 |
Charge Voltage
|
3.65V±0.03V |
By standard charge method
|
|
| 6 |
Standard charging method
|
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
, |
|
| 7 |
Charge current
|
0.2C | 180mA |
Standard charge, charge time about 6h(Ref)
|
| 0.5C | 400mA |
Rapid Charge, charge time about: 3h(Ref)
|
||
| 8 |
Standard discharging method
|
0.2C constant current discharge to2.0V, | ||
| 9 |
Cell Internal Impedance
|
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Continue Data
| No. | Items/ | Specifications/ |
Remark
|
|
| 10 |
Maximum charge current
|
1C | 900mA |
For continuous charging mod
|
| 11 |
Maximum discharge current
|
1C | 900mA |
For continuous discharge mod
|
| 12 |
Operation Temperature and relative humidity Range
|
Charge |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
|
| Discharge/ |
-20~60℃ 60±25%R.H. |
|||
| 13 |
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.
|
|

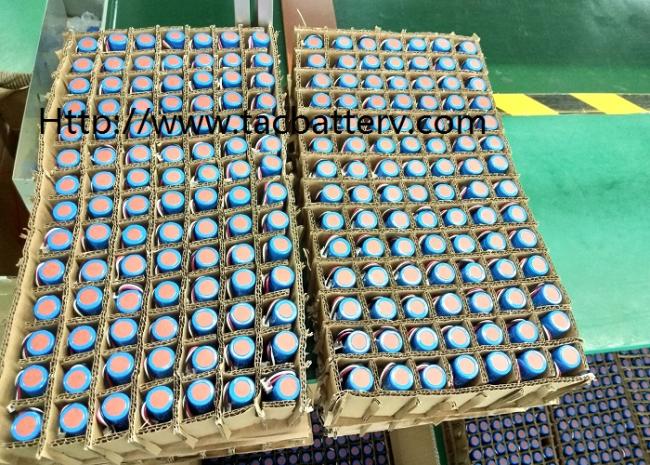

Transportation Packing
Store the battery in a cool, dry and well-ventilated area.
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.
The battery put into specially paper tray one by one
Period of Warranty
The period of warranty is one year from the date of shipment. Tac Battery guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

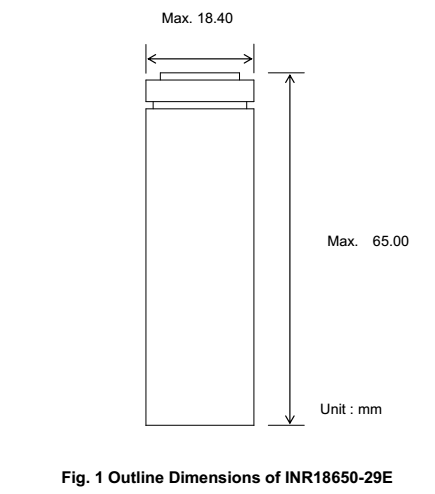

Drawing for Battery

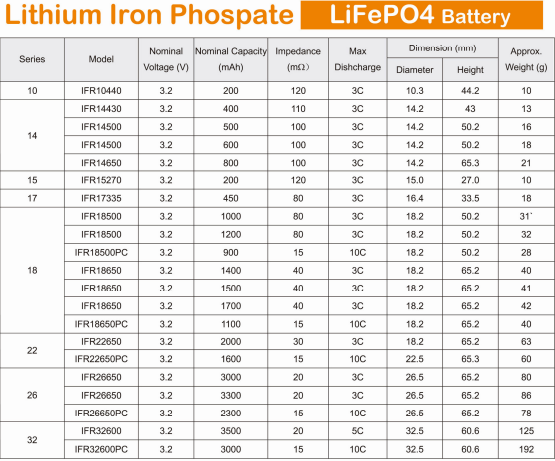

Lifepo4 Battery Production List

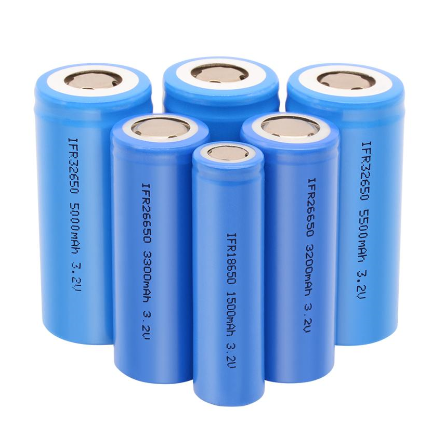

Similar Battery Pictures
